Installation [11/2015 - ]: Procedure

  1. INSPECT STEERING COLUMN ASSEMBLY

    See step  3

  2. INSTALL STEERING COLUMN ASSEMBLY
    1. Install the steering column assembly with the bolt and 2 nuts.

      Bolt

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

      Nut

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      NOTE:
      • Be sure there is no interference around the wire harness.
      • There are two different bolt sizes (12 mm (0.472 in.) or 14 mm (0.551 in.)) available.
    2. Engage the wire harness clamp.
    3. Connect the 2 connectors to the power steering ECU assembly.
    4. Connect the connectors and engage the wire harness clamps to the steering column assembly.
  3. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

    (Refer to INSTALLATION [11/2015 - 06/2017] and Refer to INSTALLATION [06/2017 - ] )

  4. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

    (Refer to INSTALLATION [11/2015 - ] )

  5. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. When reusing the electric power steering column sub-assembly and No. 2 steering intermediate shaft assembly:
      1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering column assembly, and install them.

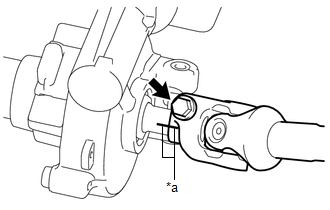

        GTY688184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Matchmark
    2. When replacing the electric power steering column sub-assembly or No. 2 steering intermediate shaft assembly:
      1. Align the marking (pink) on the steering column assembly shaft with the slit of the No. 2 steering intermediate shaft assembly, and install them.

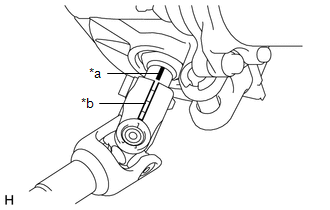

        GTY332903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Marking (Pink)
        *b Slit
    3. Install the bolt while aligning the No. 2 steering intermediate shaft assembly with the position A as shown in the illustration.

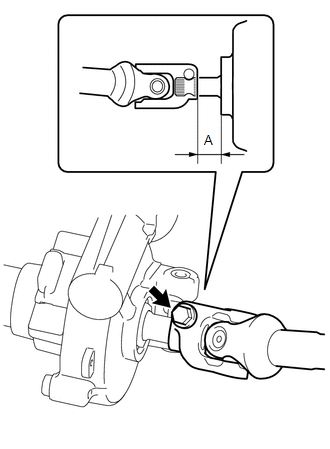

      GTY729572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard A

      17.5 to 18.7 mm (0.689 to 0.736 in.)

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  6. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY
    1. Install the steering sliding yoke sub-assembly to the No. 2 steering intermediate shaft assembly.

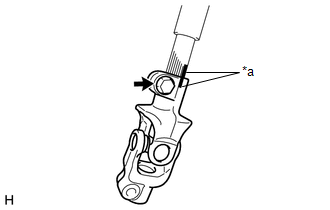

      GTY539416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
      NOTE:

      Align the matchmarks on the steering sliding yoke sub-assembly and the No. 2 steering intermediate shaft assembly.

    2. Temporarily install the bolt.

      HINT:

      Fully tighten the bolt after installing the steering sliding yoke sub-assembly to the steering gear assembly.

  7. CONNECT STEERING SLIDING YOKE SUB-ASSEMBLY
    1. Install the steering sliding yoke sub-assembly to the steering gear assembly.

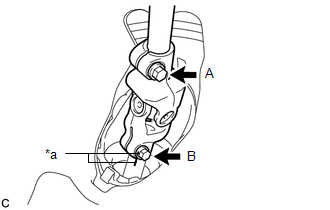

      GTY713219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
      NOTE:
      • Align the matchmarks on the steering sliding yoke sub-assembly and the steering gear assembly.
      • When the steering sliding yoke sub-assembly is replaced with a new one, it has no matchmarks, so install it while the head of the bolt B faces the back of the vehicle.
    2. Install bolt B.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

    3. Tighten bolt A.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  8. INSTALL COLUMN HOLE COVER SILENCER SHEET
    1. Install the column hole cover silencer sheet with the 2 clips.

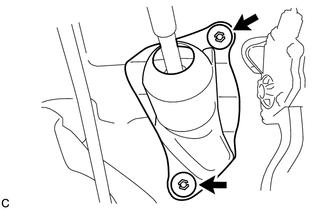

      GTY720290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the floor carpet.
  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY

    (Refer to INSTALLATION [11/2015 - ] )

  10. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the negative (-) auxiliary battery cable connected and the ignition switch on (IG).
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel with the negative (-) auxiliary battery cable connected and the ignition switch on (IG).
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    • Do not remove the spiral cable from the steering sensor.
    1. Using pliers, expand the clamp.
    2. While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.
    3. Return the clamp to its original position.
    4. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
  11. INSTALL UPPER STEERING COLUMN COVER
    1. Engage the 2 claws to install the upper steering column cover.

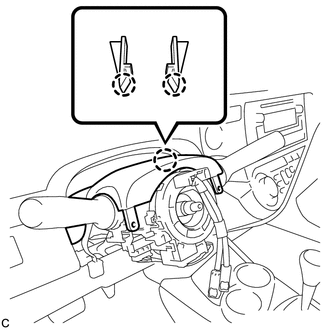

      GTY720291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LOWER STEERING COLUMN COVER
    1. Engage the 4 claws to install the lower steering column cover.

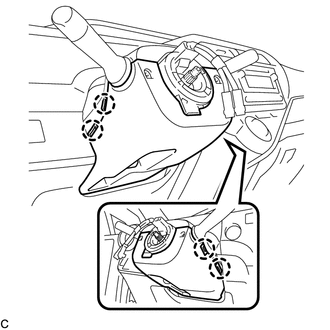

      GTY687650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 screws.

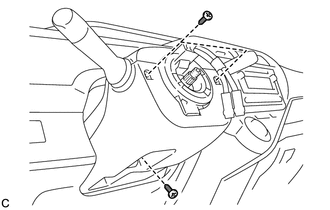

      GTY738350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  14. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  15. INSTALL STEERING WHEEL ASSEMBLY

    See step  7 and See step  7

  16. INSTALL HORN BUTTON ASSEMBLY

    (Refer to INSTALLATION [11/2015 - ] )

  17. PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT

    (Refer to CALIBRATION [11/2015 - ] )
