Reassembly [11/2015 - ]: Procedure

  1. INSTALL POWER STEERING MOTOR ASSEMBLY
    NOTE:
    • Do not drop the power steering motor assembly, strike it with tools or subject it to impacts.
    • If the power steering motor assembly is subjected to an impact, replace it with a new one.
    • Do not pull the wire harness and tilt steering support bond cable of the power steering motor assembly.
    • Do not allow any moisture to come into contact with the power steering motor assembly.
    • Do not loosen any bolts not mentioned in the procedure.
    • Do not allow any foreign objects to contaminate the power steering motor assembly.

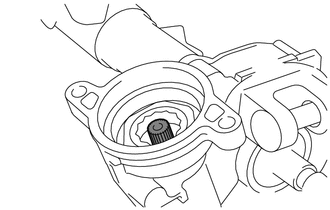

    1. Apply grease to the serrated part of the electric power steering column sub-assembly.
      GTY342035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Grease
      NOTE:

      First wipe off the existing grease from the serrated part, and then apply the dedicated grease supplied with a new power steering motor assembly or electric power steering column sub-assembly.

    2. Temporarily install the power steering motor assembly to the electric power steering column sub-assembly with the 2 bolts.
      NOTE:

      When temporarily installing the 2 bolts to the power steering motor assembly, do not tighten them all the way down.

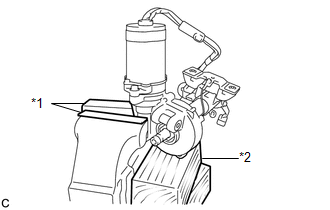

    3. Secure the steering column assembly in a vise using aluminum plates.
      GTY728045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Aluminum Plate
      *2 Wooden Block
      NOTE:
      • Do not overtighten the vise, as the steering column assembly may become deformed.
      • Secure the power steering motor assembly so that it is directly upright.
      • Support the steering column assembly with a wooden block or similar item to ensure that it does not fall.

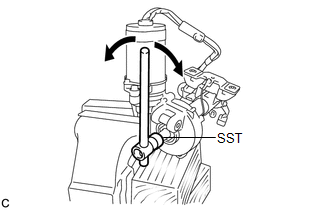

    4. Using SST, turn the steering main shaft once 180 degrees to the left and then 180 degrees to the right at a speed of 60 rpm, and repeat 2 to 3 times to adjust the axis centering of the power steering motor assembly.
      • SST: 09616-00011
      GTY331928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Tighten the 2 bolts.

      Torque: 19 N*m (189 kgf*cm, 14 ft.*lbf)

    6. Using SST, measure the turning torque of the steering main shaft.
      • SST: 09616-00011
      GTY721179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Turning torque

      Torque: 1.4 N*m (14 kgf*cm, 12 in.*lbf)

      or less

      NOTE:

      Ensure that there is no abnormal resistance during rotation.

      If the torque is not as specified, readjust the axis centering of the power steering motor assembly.

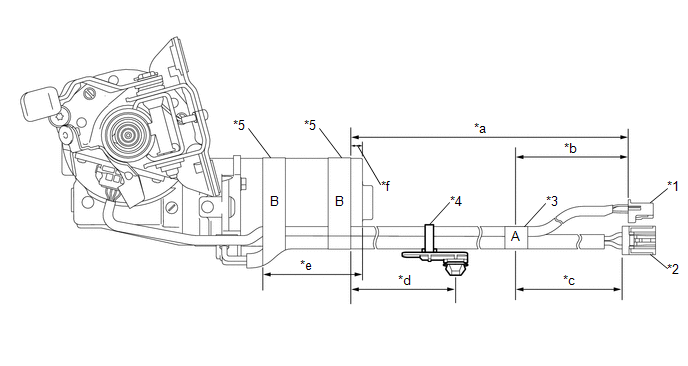

    7. Install a new clamp and tape to the wire harness as shown in the illustration.
      GTY704358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Torque Sensor Wire Harness *2 Power Steering Motor Wire Harness
      *3 Tape A *4 Clamp
      *5 Tape B - -
      *a 383 to 403 mm (1.26 to 1.32 ft.) *b 100 mm (3.934 in.)
      *c 80 to 100 mm (3.15 to 3.93 in.) *d 155 to 175 mm (6.11 to 6.89 in.)
      *e 74 to 94 mm (2.92 to 3.70 in.) *f 10 mm (0.394 in.)
      NOTE:
      • Wrap the tape around the area marked as "A" in the illustration more than 1.5 times.
      • Wrap the tape around the area marked as "B" in the illustration more than 2 times.
      • As heat from the power steering motor assembly may generate smoke, use heat resistant tape (resistant to 100°C (212°F) or more).
    8. Cut off the excess length of the clamp.
  2. INSTALL IGNITION OR STARTER SWITCH ASSEMBLY (w/o Smart Key System)
    1. Engage the 2 claws to install the ignition or starter switch assembly onto the upper steering column bracket assembly.
  3. INSTALL KEY INTER LOCK SOLENOID (w/o Smart Key System)
    1. Install the key inter lock solenoid onto the upper steering column bracket assembly with the screw.
  4. INSTALL UN-LOCK WARNING SWITCH ASSEMBLY (w/o Smart Key System)
    1. Engage the 2 claws to install the un-lock warning switch assembly onto the upper steering column bracket assembly.

      HINT:

      Slide the un-lock warning switch assembly, in the direction shown by the arrow in the illustration, to install it.

  5. INSTALL IGNITION SWITCH LOCK CYLINDER ASSEMBLY (w/o Smart Key System)

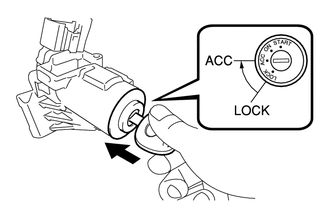

    1. Turn the ignition switch to ACC.
      GTY703517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the ignition switch lock cylinder assembly into the upper steering column bracket assembly.
    3. Make sure that the ignition switch lock cylinder assembly is securely fixed onto the ignition switch lock cylinder assembly.
  6. INSTALL UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY (w/o Smart Key System)
    1. Set the steering column assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

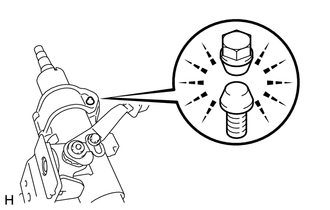

    2. Install the upper steering column with switch bracket assembly with a new steering lock set bolt, and then tighten the bolt until its head comes off.
      GTY343436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL STEERING LOCK ACTUATOR ASSEMBLY (w/ Smart Key System)

    HINT:

    When replacing the steering lock actuator assembly, perform initialization (Refer to REGISTRATION [11/2015 - ] ).

    1. Set the steering column assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

    2. Install the steering lock actuator assembly with a new steering lock set bolt, and then tighten the bolt until its head comes off.
      GTY343436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL TRANSPONDER KEY AMPLIFIER (w/o Smart Key System)
    1. Engage the 2 claws to install the transponder key amplifier.
