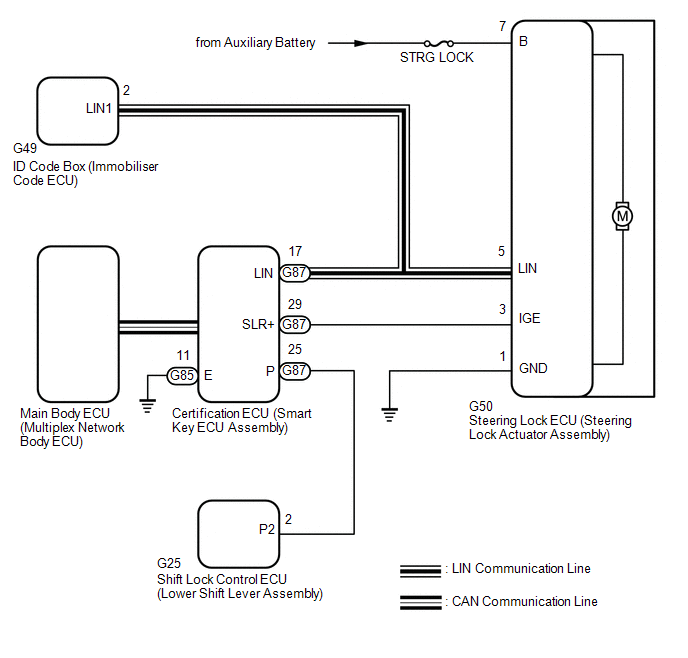

Unable to Unlock Steering Wheel (Hybrid Control System cannot Start) [11/2015 - ]: Wiring Diagram

GTY721582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
