System Diagrams — 2017 Toyota Prius C Two Service Manual ~ LEMON Manuals

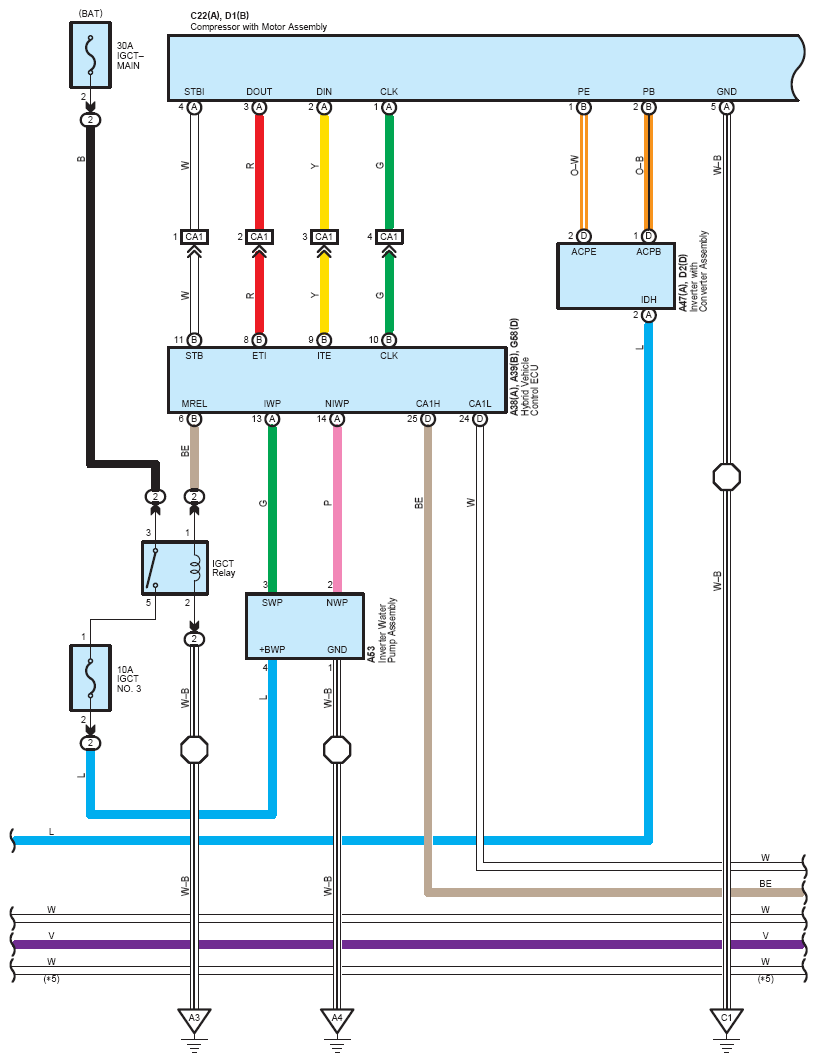

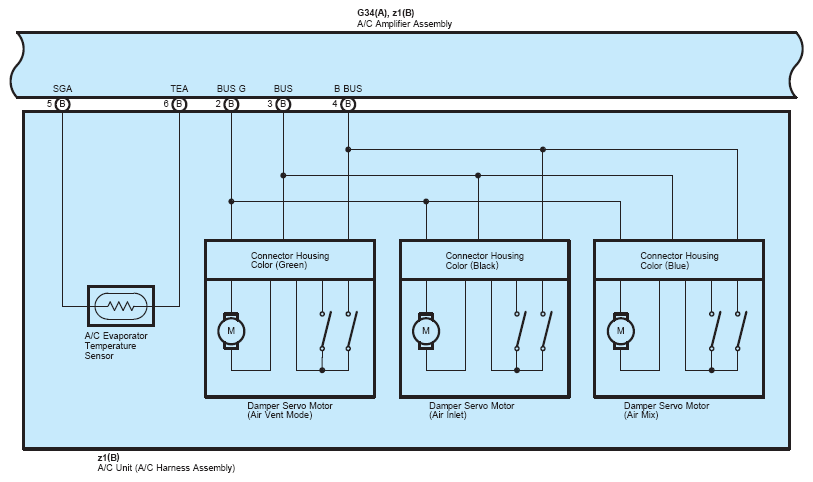

Fig 1: Air Conditioning (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

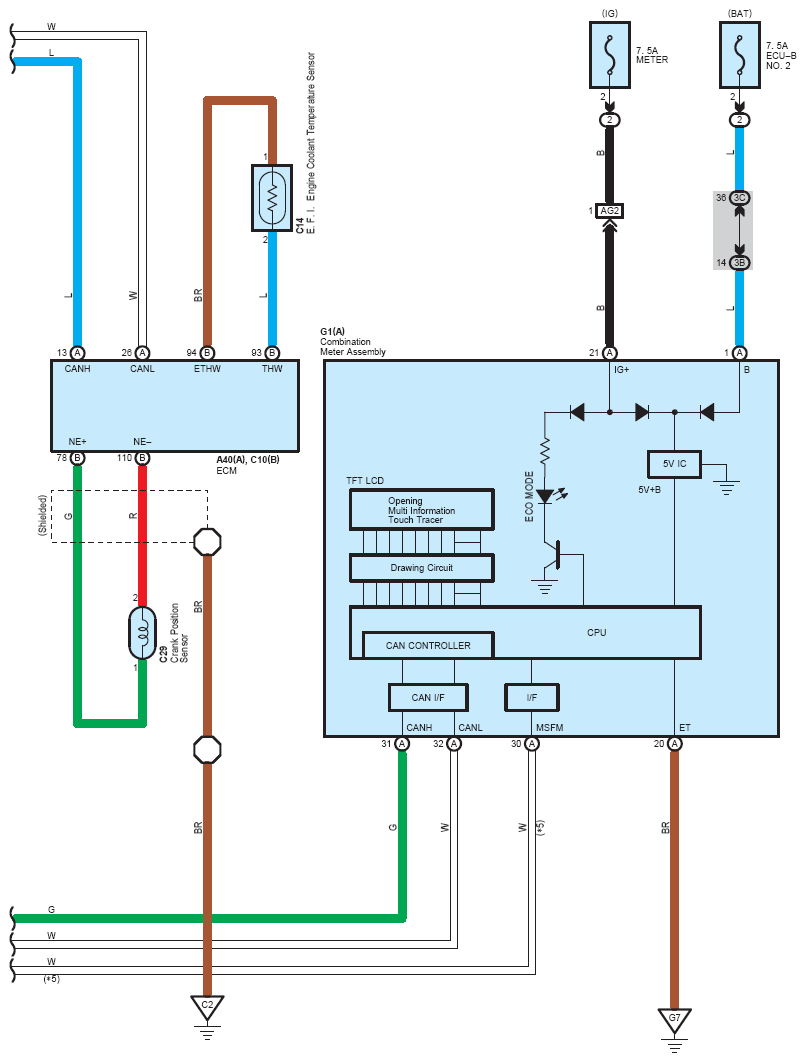

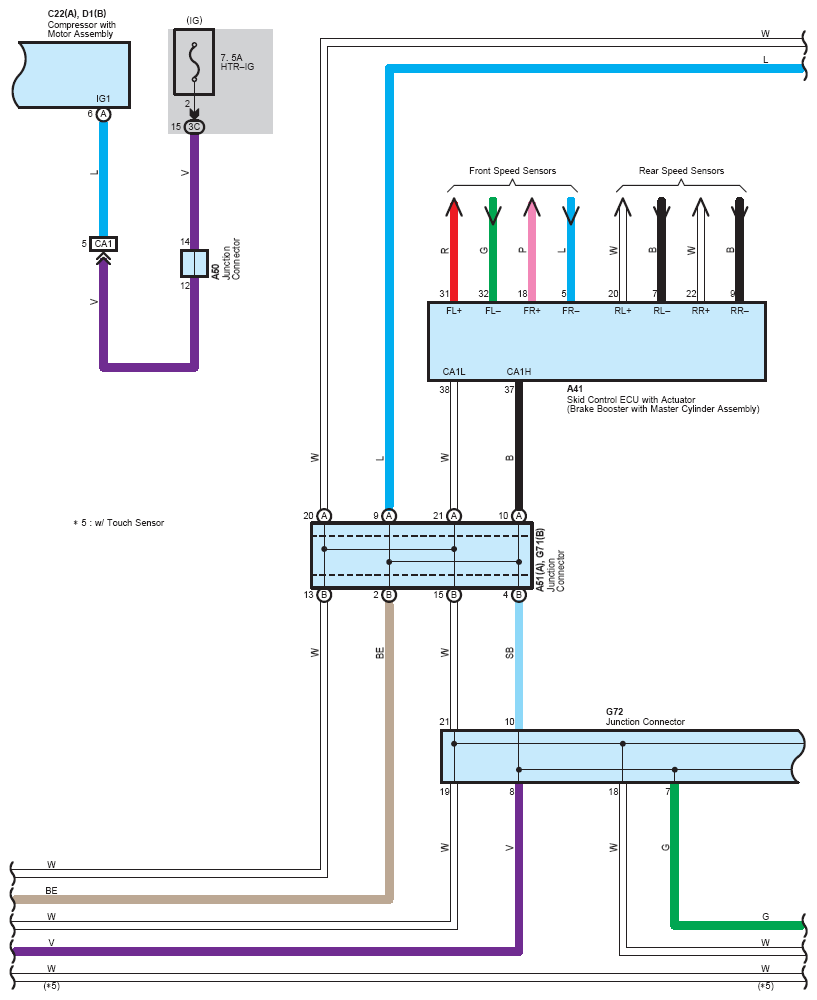

Fig 2: Air Conditioning (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

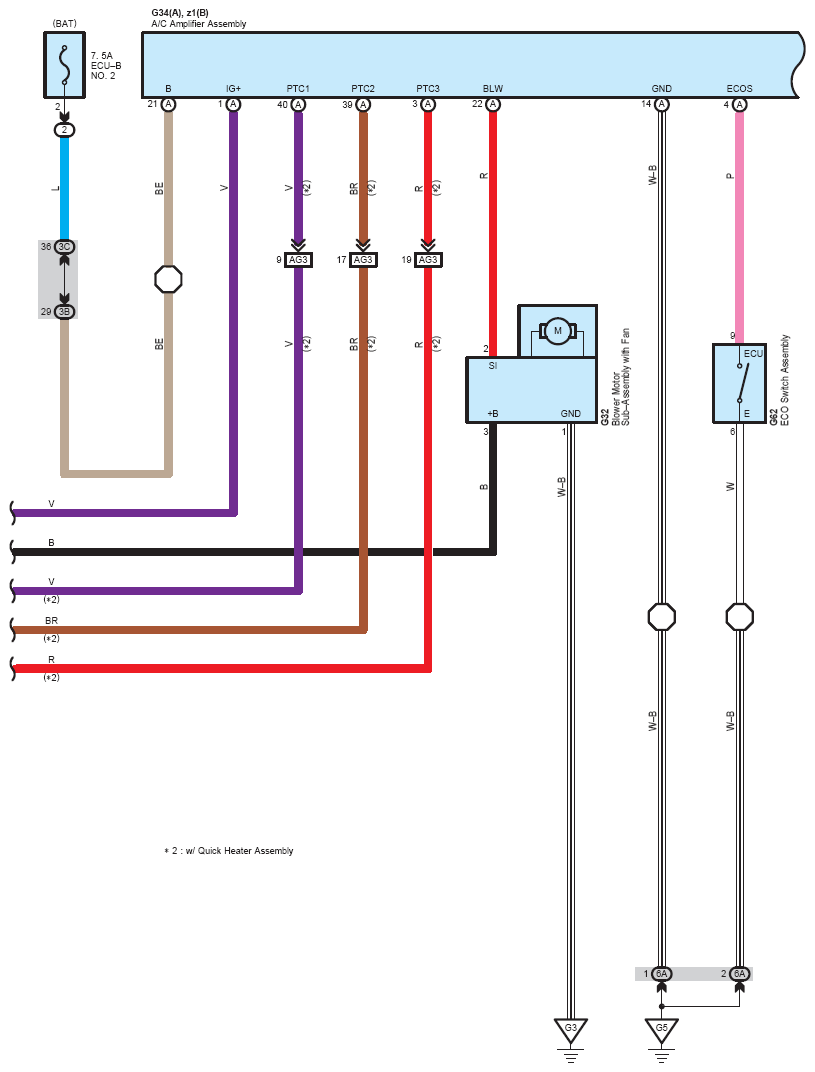

Fig 3: Air Conditioning (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

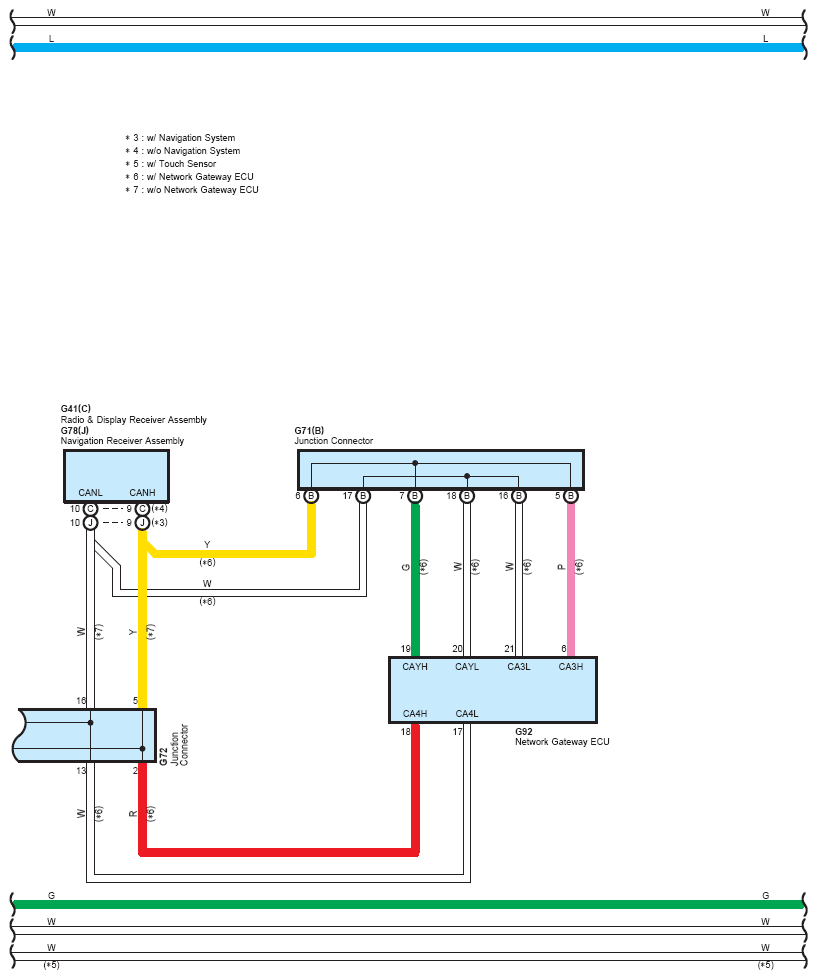

Fig 4: Air Conditioning (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

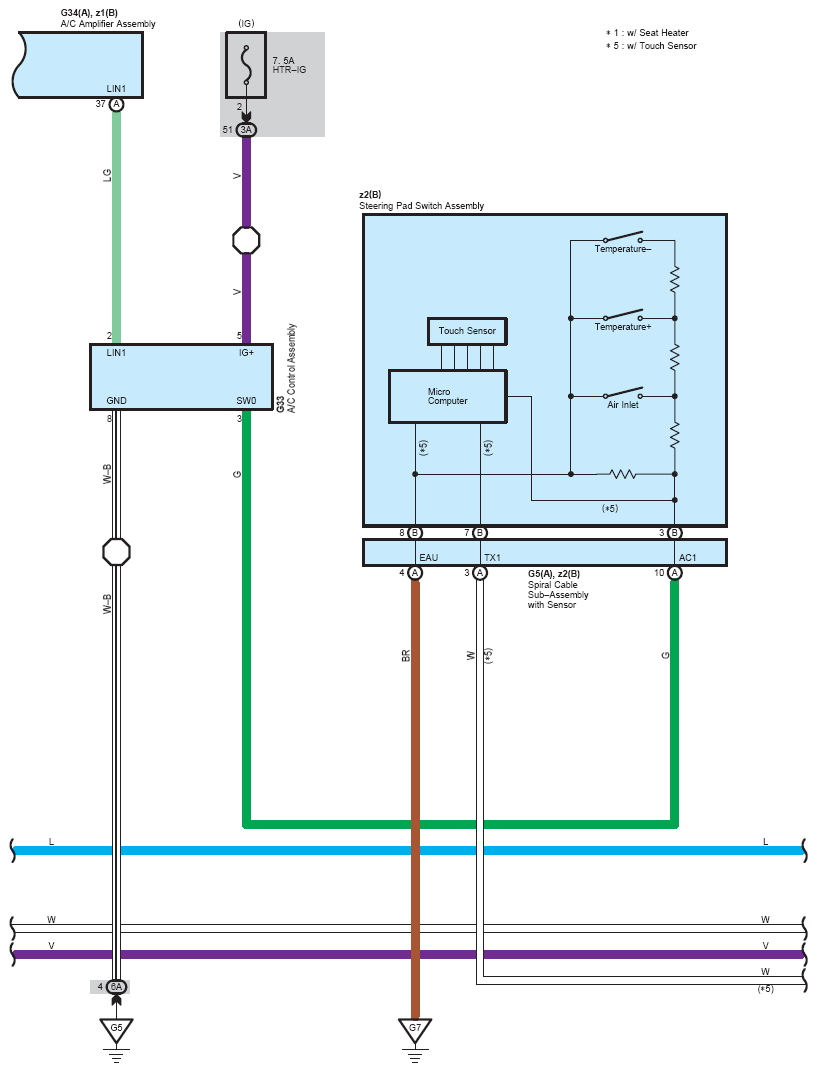

Fig 5: Air Conditioning (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

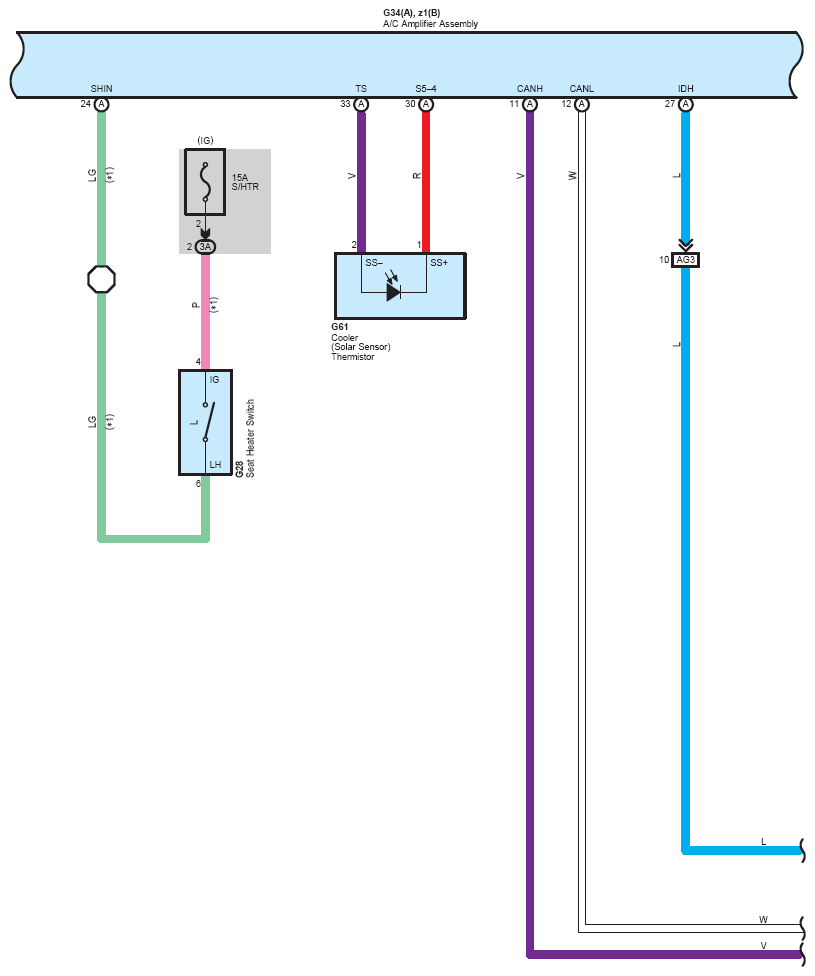

Fig 6: Air Conditioning (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

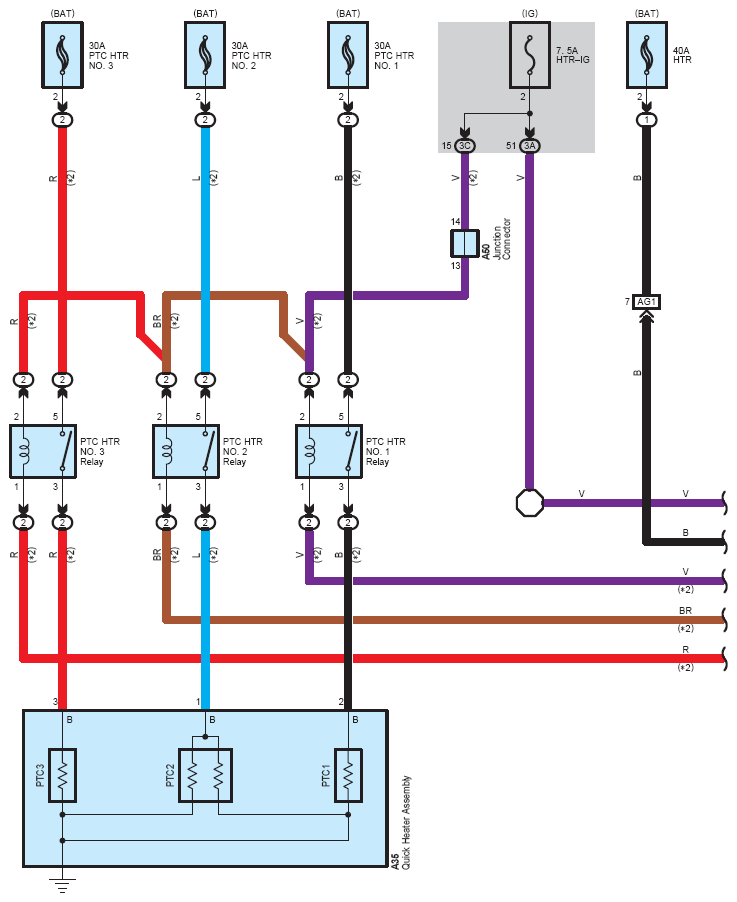

Fig 7: Air Conditioning (7 Of 10)

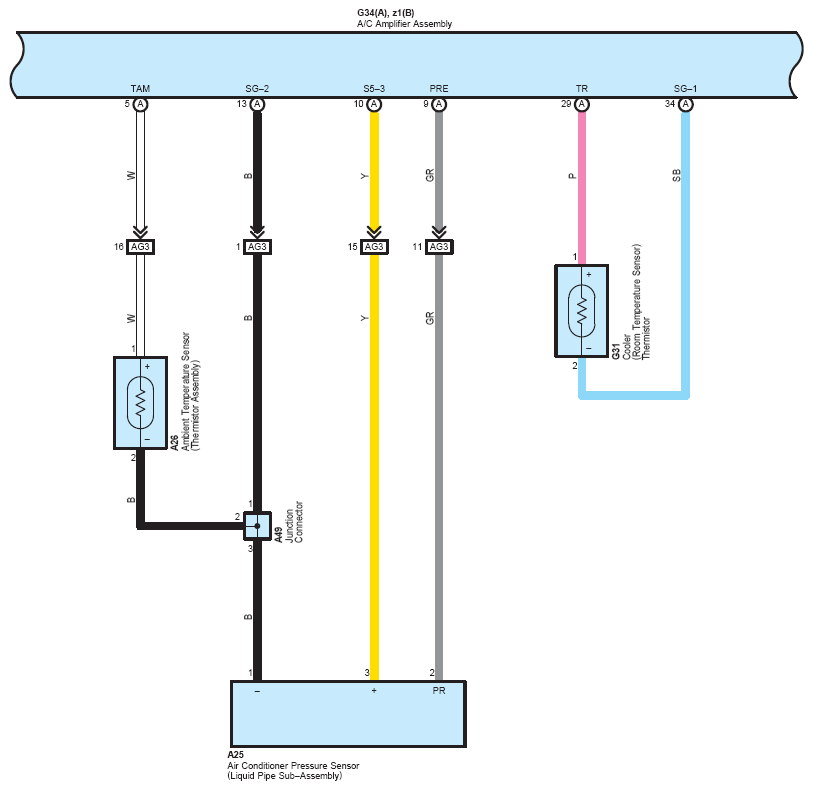

Fig 8: Air Conditioning (8 Of 10)

Fig 9: Air Conditioning (9 Of 10)

Fig 10: Air Conditioning (10 Of 10)
