Installation [11/2015 - ]: Procedure
- INSTALL ECM
- Install the ECM cover and No. 2 ECM bracket with the 4 screws.
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- Install the nut.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the ECM with the bolt and nut.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

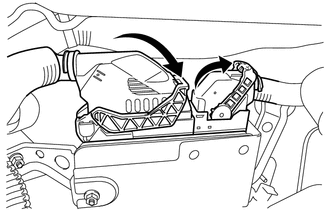

- Connect the 2 ECM connectors and lower the 2 levers.NOTE:
- When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water or other foreign matter.
- Be sure to securely connect the ECM connectors.
- Install the ECM cover and No. 2 ECM bracket with the 4 screws.
- INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
- INSTALL FRONT NO. 1 VENTILATOR SEAL
Refer to PROCEDURE - Step 17
- INSTALL FRONT AIR SHUTTER SEAL
Refer to PROCEDURE - Step 18
- INSTALL INNER COWL TOP TO COWL BRACE
Refer to PROCEDURE - Step 19
- INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
(Refer to INSTALLATION [11/2015 - ] ).
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [11/2015 - 06/2017] , or refer to INITIALIZATION [06/2017 - ] ).
- INSTALL FRONT FLOOR COVER RH
Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7
- PERFORM INITIALIZATION
HINT:
Initialization cannot be completed by only disconnecting and reconnecting the cable of the negative (-) auxiliary battery terminal.
- Perform Initialization when replacing the ECM (See step 5).
