Removal [11/2015 - ]: Procedure

  1. DRAIN COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    (Refer to REMOVAL [11/2015 - ] ).

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

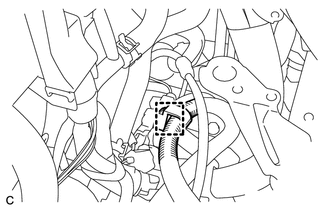

    1. Disconnect the wire harness.
      GTY339955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

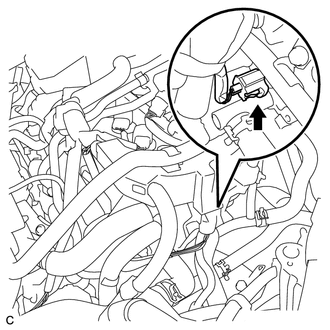

    2. Disconnect the engine coolant temperature sensor connector.
      GTY339956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

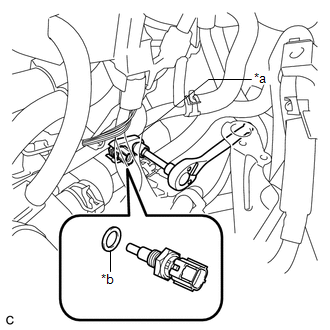

    3. Using a union nut wrench 19 mm, remove the engine coolant temperature sensor.
      GTY704830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      TEXT IN ILLUSTRATION

      *a Union Nut Wrench
      *b Gasket
    4. Remove the gasket from the engine coolant temperature sensor.
