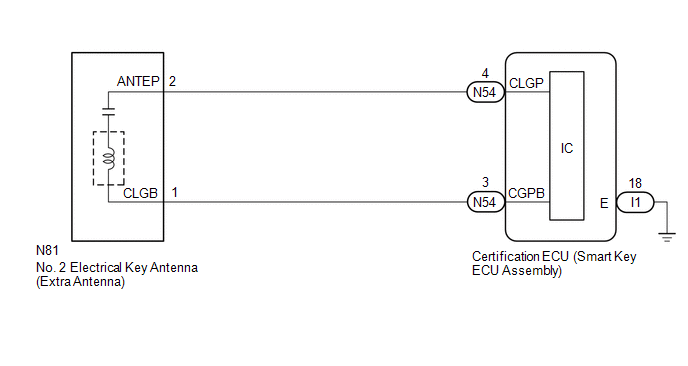

DTC B27A9: Open in Floor/Extra Electrical Key Oscillator Circuit [09/2016 - 05/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
