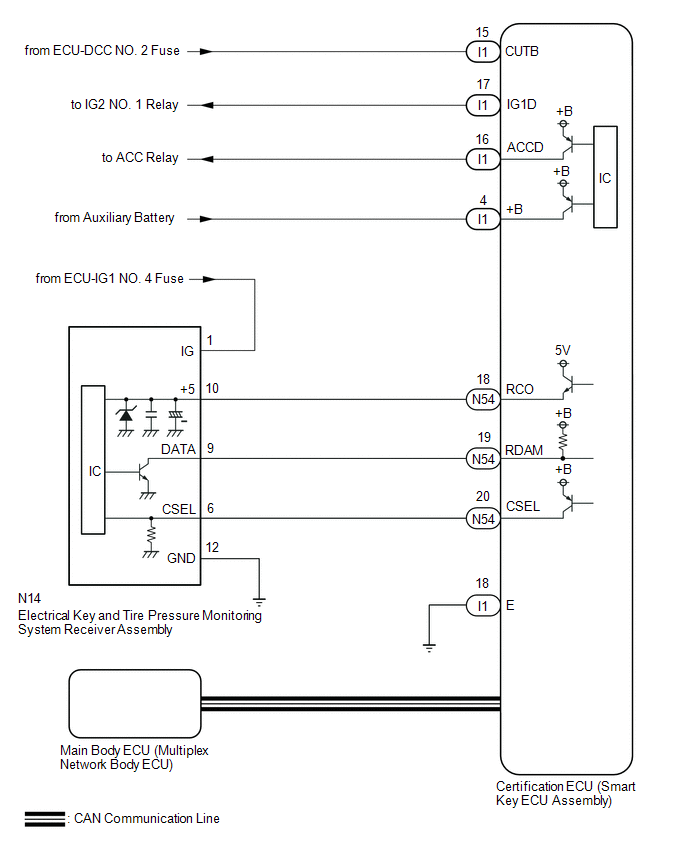

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [09/2016 - 12/2018]: Wiring Diagram

GTY698272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
