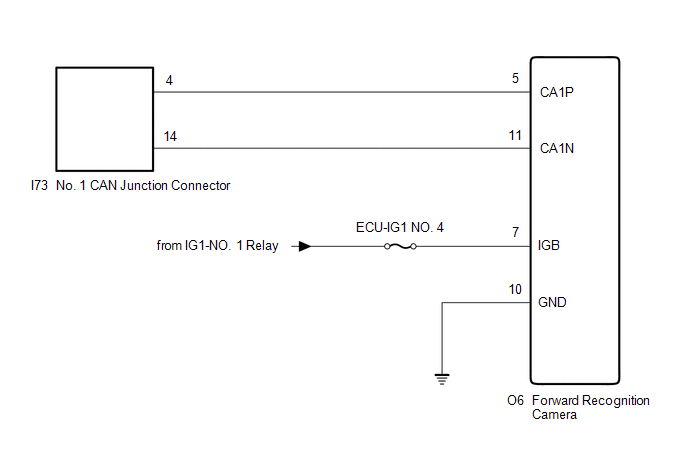

Front Camera Module Communication Stop Mode [09/2016 - ]: Wiring Diagram

GTY712904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
