Navigation Receiver Assembly Communication Stop Mode [09/2016 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the I33 navigation receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I33-9 (CANH) - I33-10 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

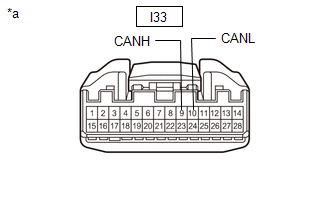

   *a	Front view of wire harness connector (to Navigation Receiver Assembly)

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NAVIGATION RECEIVER ASSEMBLY)

Result:

OK

See step  2

1. Disconnect the I34 navigation receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I34-7 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

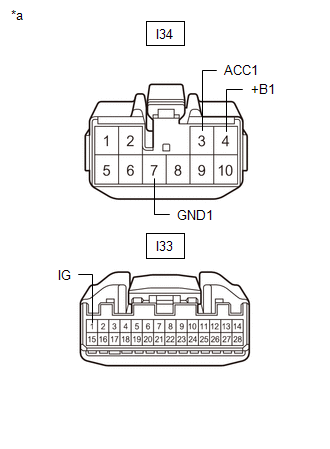

   *a	Front view of wire harness connector (to Navigation Receiver Assembly)

3. Reconnect the cable to the negative (-) auxiliary battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   I34-4 (+B1) - Body ground	Power switch off	11 to 14 V
   I34-3 (ACC1) - Body ground	Power switch on (ACC)	11 to 14 V
   I33-1 (IG) - Body ground	Power switch on (IG)	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to  REMOVAL [09/2016 - 05/2019]  , or refer to  REMOVAL [05/2019 - 07/2020]  , or refer to  REMOVAL [07/2020 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
