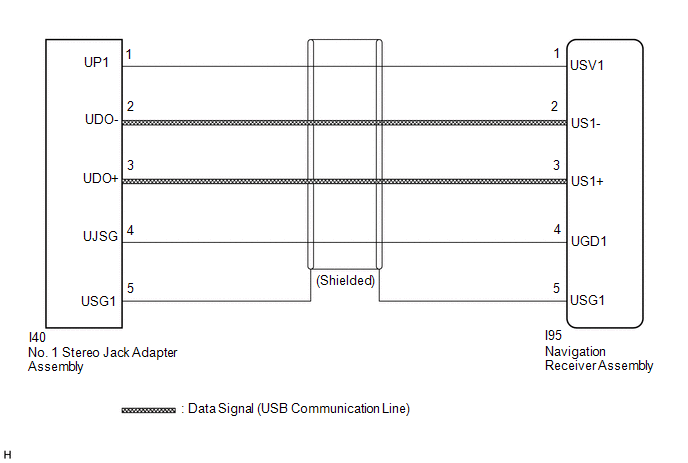

USB Audio System Recognition/Play Error [09/2016 - 05/2019]: Wiring Diagram

GTY724178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
