DTC B156C: Extension Module Disconnected [09/2016 - ]: Procedure
- CHECK FOR DTC
- Clear the DTCs.
Body Electrical > Navigation System > Clear DTCs
- Turn the power switch off.
- Check for DTCs.
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2016 - 05/2019] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [05/2019 - 07/2020] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [07/2020 - 06/2021] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2021 - ]
Result:
NG
See step 2
- Clear the DTCs.
- CHECK NO. 1 NAVIGATION WIRE (NAVIGATION RECEIVER ASSEMBLY - STEREO COMPONENT TUNER ASSEMBLY)
- Disconnect the o1 navigation receiver assembly connector.
- Disconnect the o2 stereo component tuner assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition o1-4 (+B2) - o2-4 (+B2) Always Below 1 Ω o1-3 (ACC2) - o2-3 (ACC2) Always Below 1 Ω o1-8 (GND2) - o2-8 (GND2) Always Below 1 Ω o1-4 (+B2) - Body ground Always 10 kΩ or higher o1-3 (ACC2) - Body ground Always 10 kΩ or higher o1-8 (GND2) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE NO. 1 NAVIGATION WIRE. Refer to REMOVAL [09/2016 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
Result:
OK
See step 3
- INSPECT NAVIGATION RECEIVER ASSEMBLY
- Disconnect the o2 stereo component tuner assembly connector.

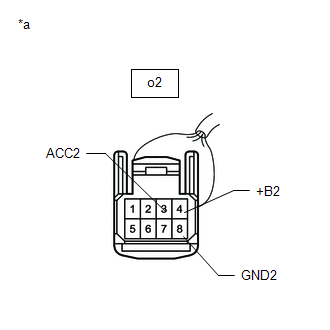

*a Front view of wire harness connector
(to Stereo Component Tuner Assembly) - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition o2-4 (+B2) - o2-8 (GND2) Power switch off 11 to 14 V o2-3 (ACC2) - o2-8 (GND2) Power switch on (ACC) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to REMOVAL [09/2016 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
Result:
OK
See step 4
- Disconnect the o2 stereo component tuner assembly connector.
- CHECK NO. 1 NAVIGATION WIRE (USB COMMUNICATION LINE)
- Disconnect the o3 navigation receiver assembly connector.

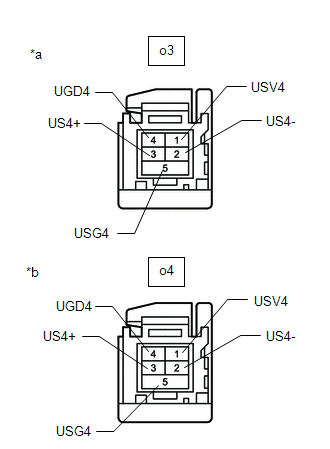

*a Front view of wire harness connector
(to Navigation Receiver Assembly)*b Front view of wire harness connector
(to Stereo Component Tuner Assembly) - Disconnect the o4 stereo component tuner assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition o3-1 (USV4) - o4-1 (USV4) Always Below 1 Ω o3-2 (US4-) - o4-2 (US4-) Always Below 1 Ω o3-3 (US4+) - o4-3 (US4+) Always Below 1 Ω o3-4 (UGD4) - o4-4 (UGD4) Always Below 1 Ω o3-5 (USG4) - o4-5 (USG4) Always Below 1 Ω o3-1 (USV4) - Body ground Always 10 kΩ or higher o3-2 (US4-) - Body ground Always 10 kΩ or higher o3-3 (US4+) - Body ground Always 10 kΩ or higher o3-4 (UGD4) - Body ground Always 10 kΩ or higher o3-5 (USG4) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE NO. 1 NAVIGATION WIRE. Refer to REMOVAL [09/2016 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
Result:
OK
See step 5
- Disconnect the o3 navigation receiver assembly connector.
- CHECK STEREO COMPONENT TUNER ASSEMBLY
- Replace the stereo component tuner assembly with a known good one.
Refer to REMOVAL [09/2016 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
- Clear the DTCs.
Body Electrical > Navigation System > Clear DTCs
- Turn the power switch off.
- Check for DTCs.
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
END (STEREO COMPONENT TUNER ASSEMBLY IS DEFECTIVE)
Result:
NG
REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to REMOVAL [09/2016 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]
- Replace the stereo component tuner assembly with a known good one.
