Components [09/2016 - ]

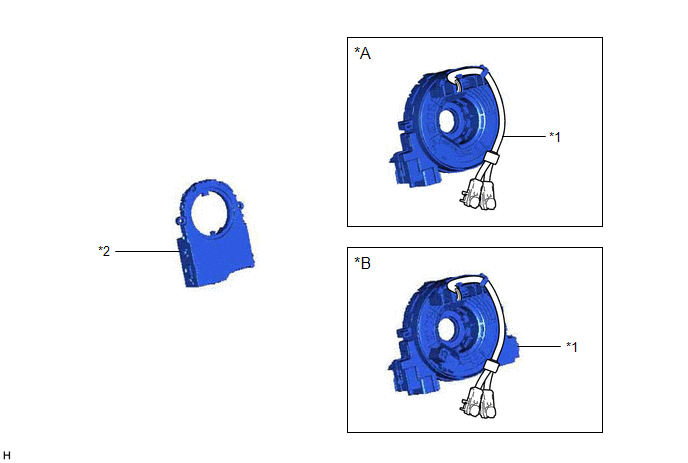

Fig 1: Steering Angle Sensor Replacement Components
GTY730563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Steering Heater *B w/ Steering Heater
*1 SPIRAL CABLE SUB-ASSEMBLY *2 STEERING SENSOR
