System Diagrams

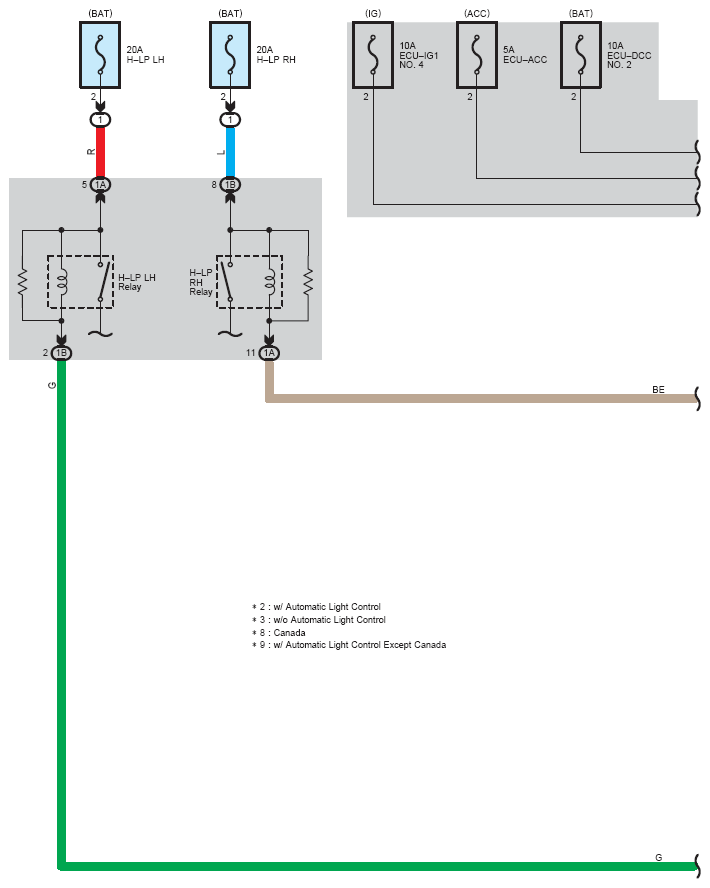

Fig 1: Automatic Light Control, Light Auto Turn Off System (1 Of 4)
G12210268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

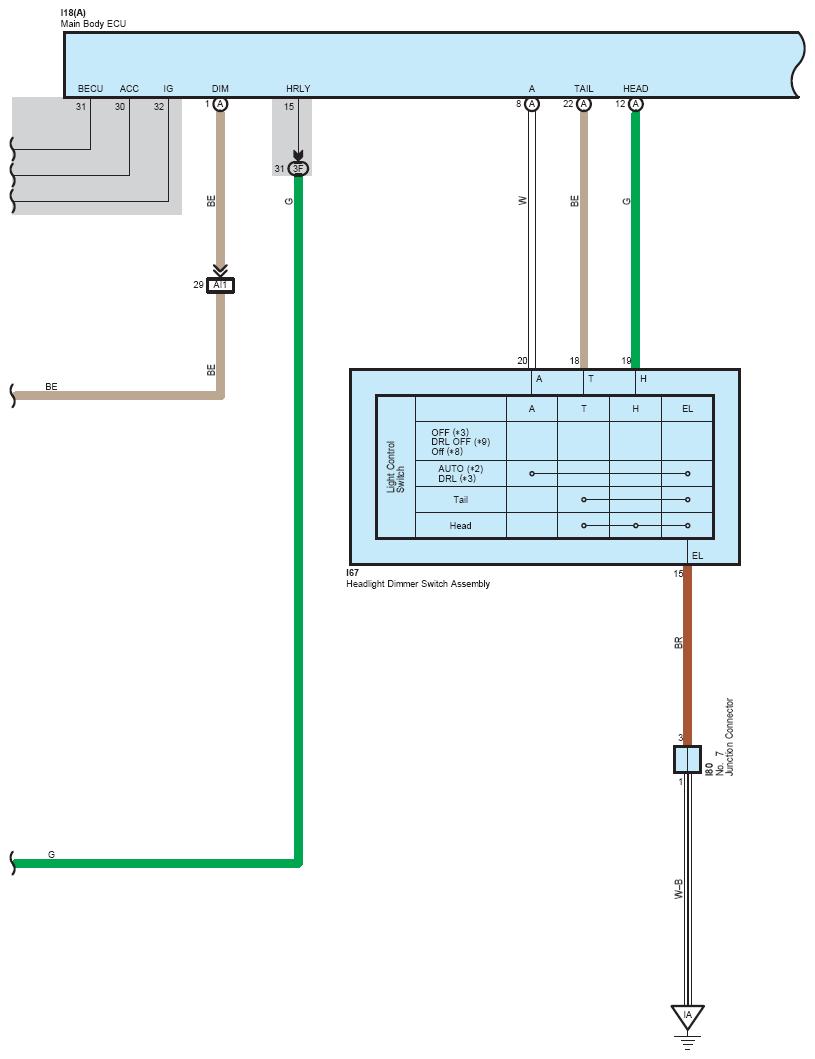

Fig 2: Automatic Light Control, Light Auto Turn Off System (2 Of 4)
G12210269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

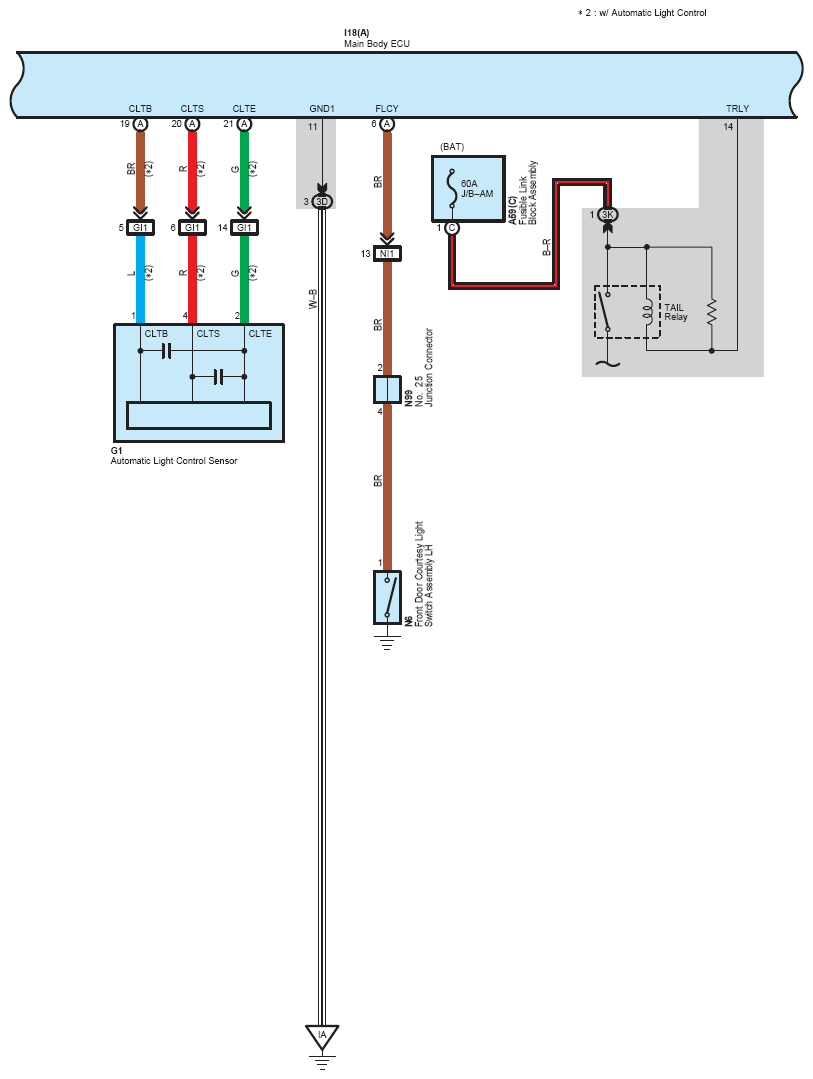

Fig 3: Automatic Light Control, Light Auto Turn Off System (3 Of 4)
G12210270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

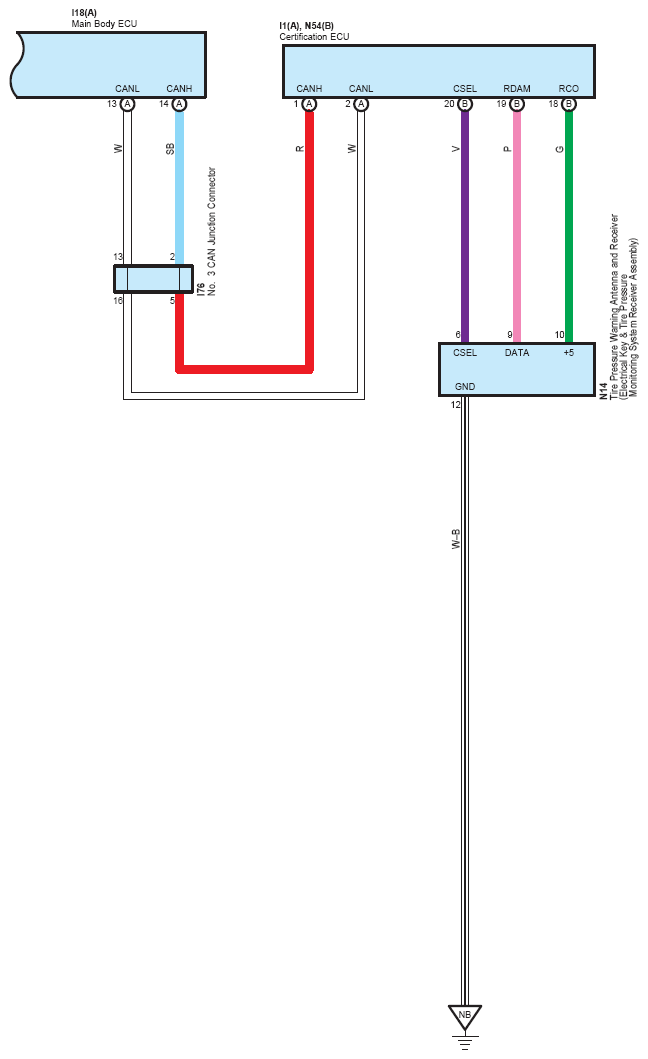

Fig 4: Automatic Light Control, Light Auto Turn Off System (4 Of 4)
G12210271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
