System Diagrams

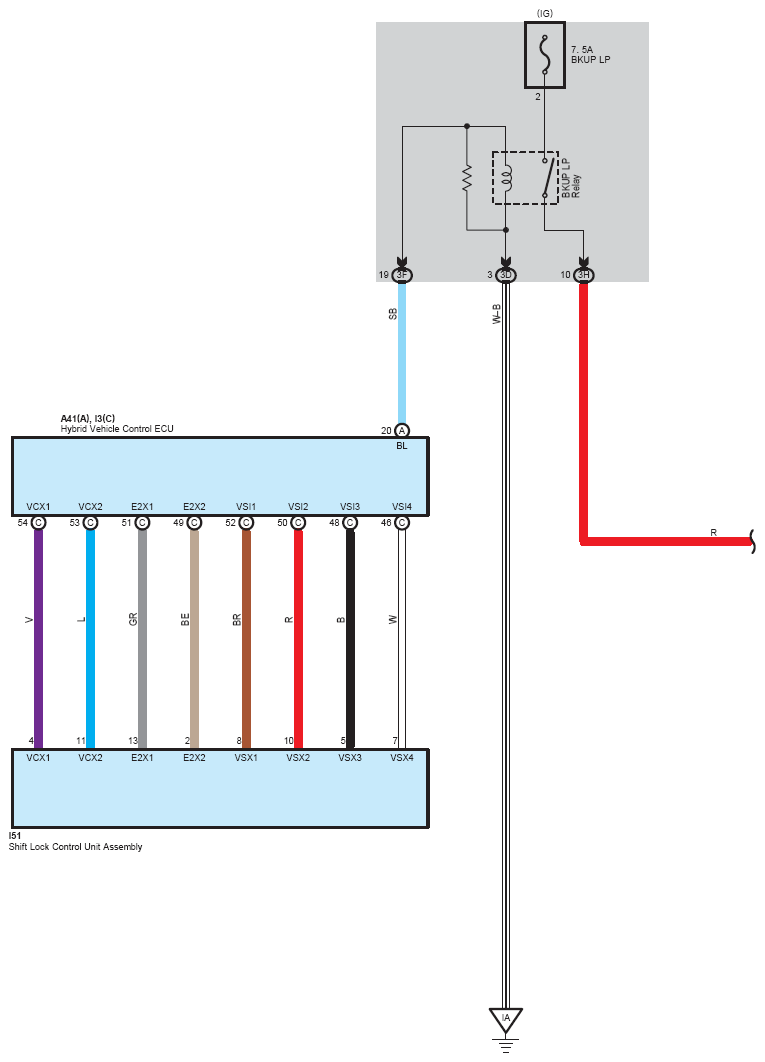

Fig 1: Back-Up Light (1 Of 2)
G12210312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

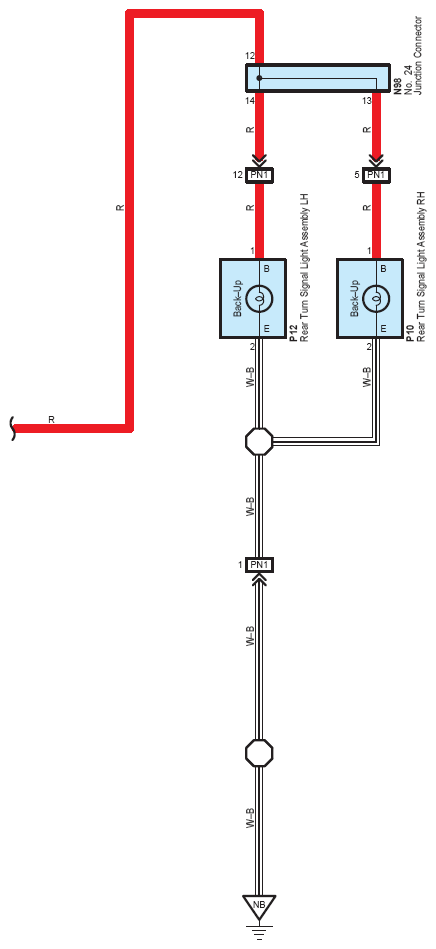

Fig 2: Back-Up Light (2 Of 2)
G12210313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
