System Diagrams — 2017 Toyota Prius Prime Advanced Service Manual ~ LEMON Manuals

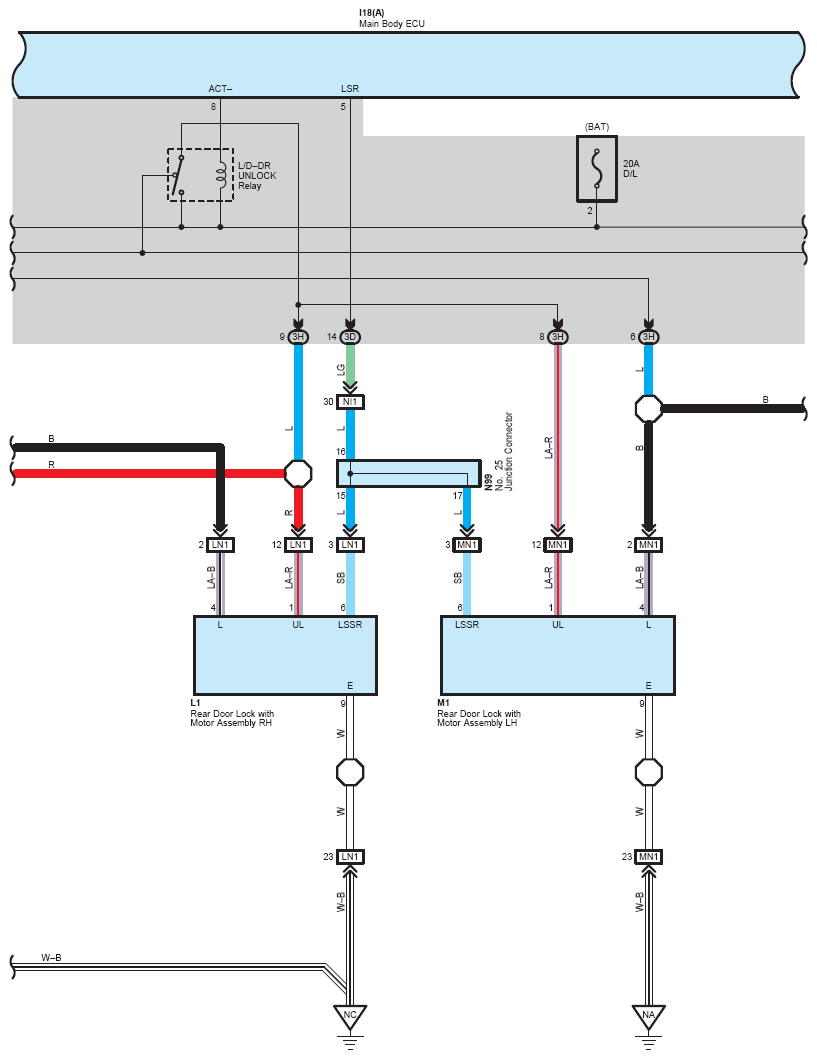

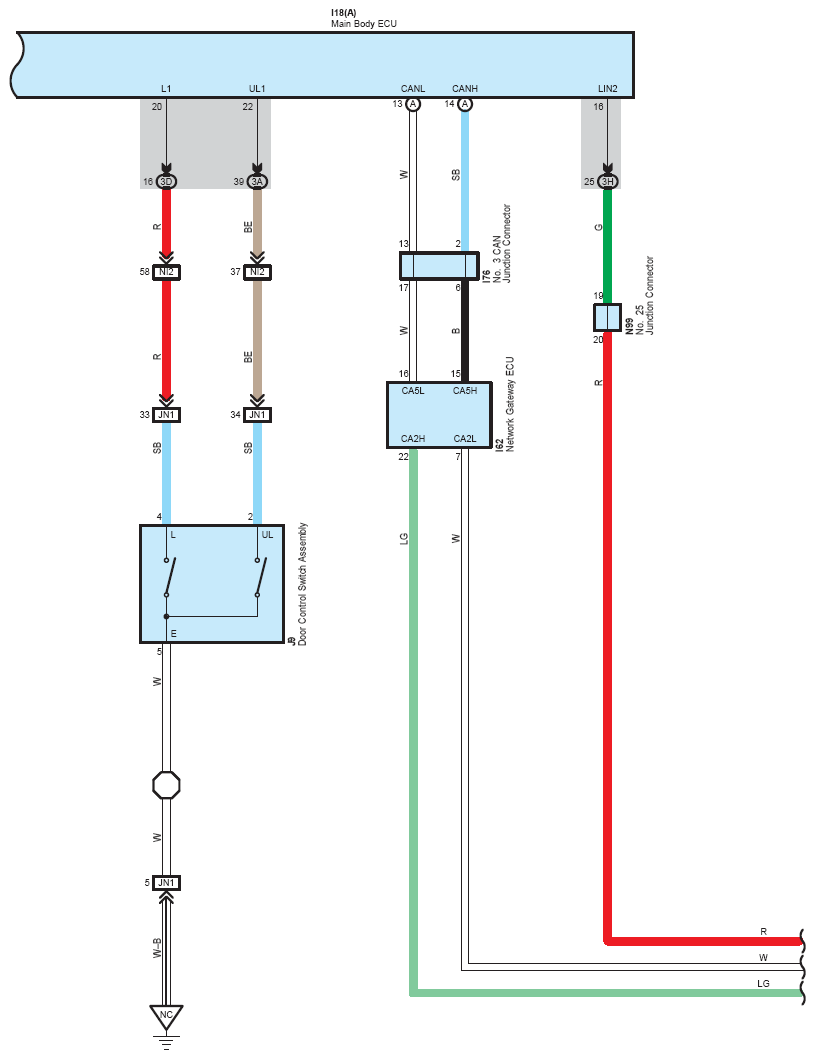

Fig 1: Door Lock Control (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

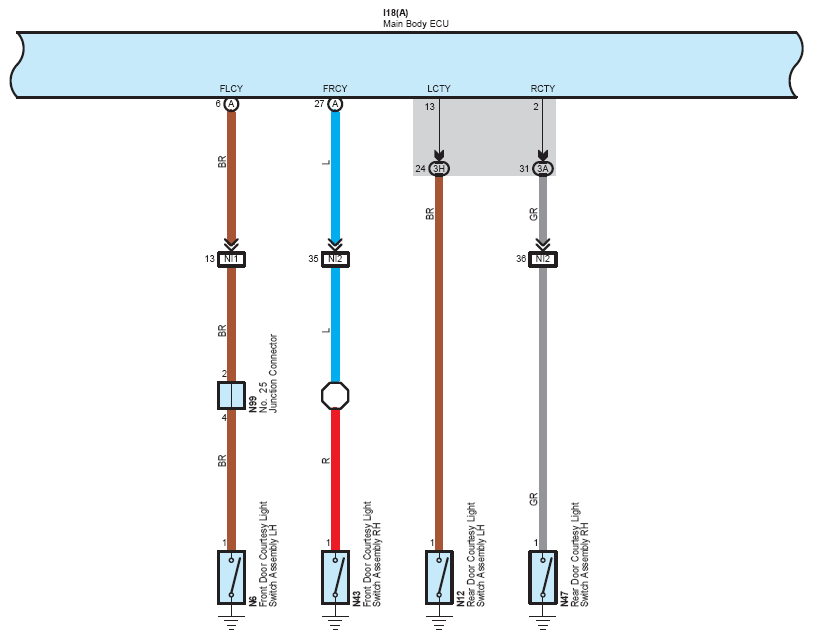

Fig 2: Door Lock Control (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

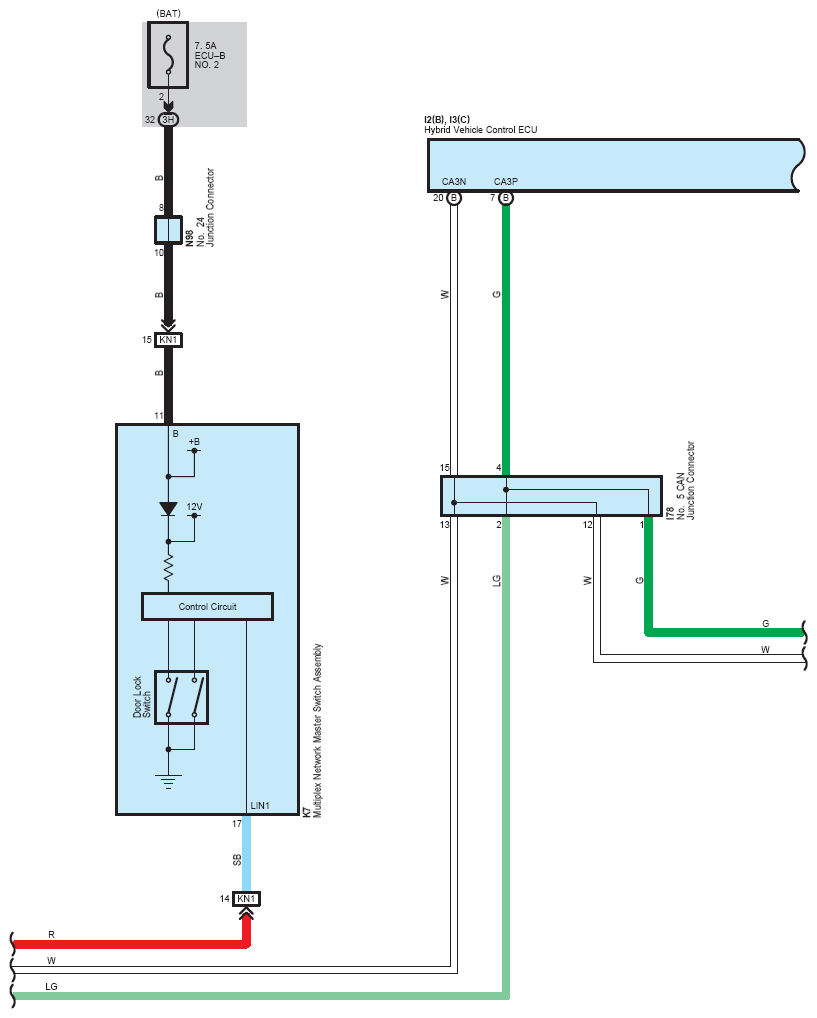

Fig 3: Door Lock Control (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

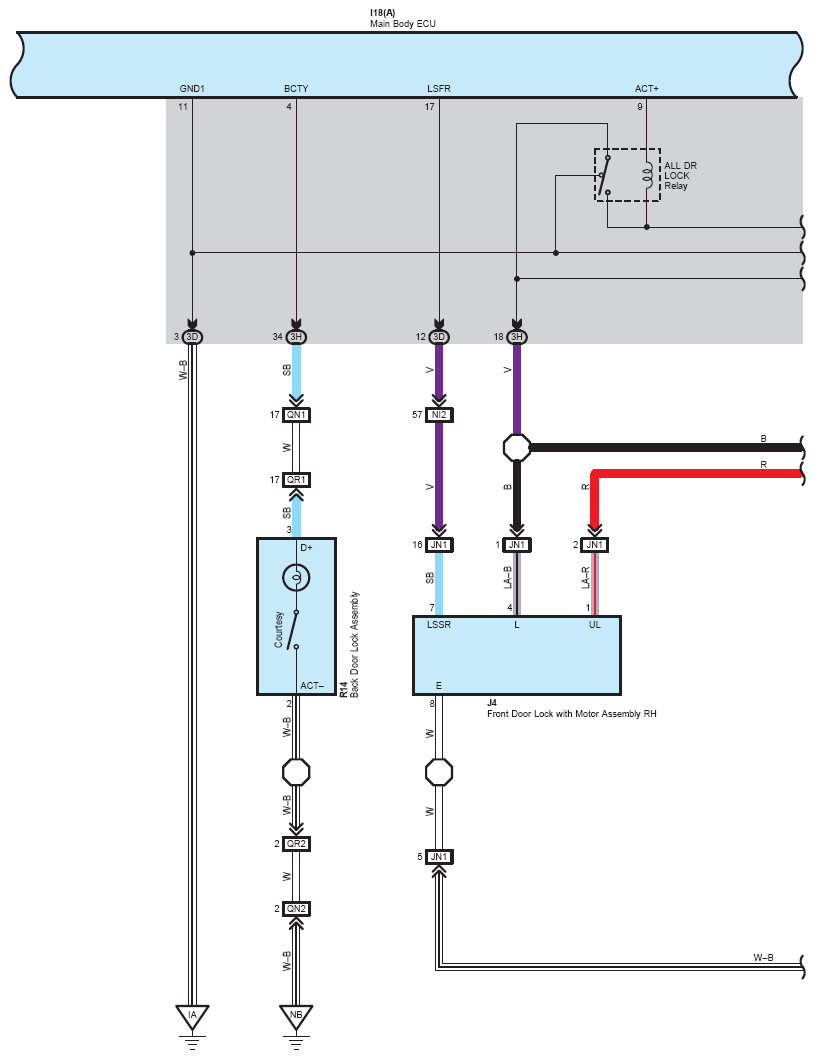

Fig 4: Door Lock Control (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

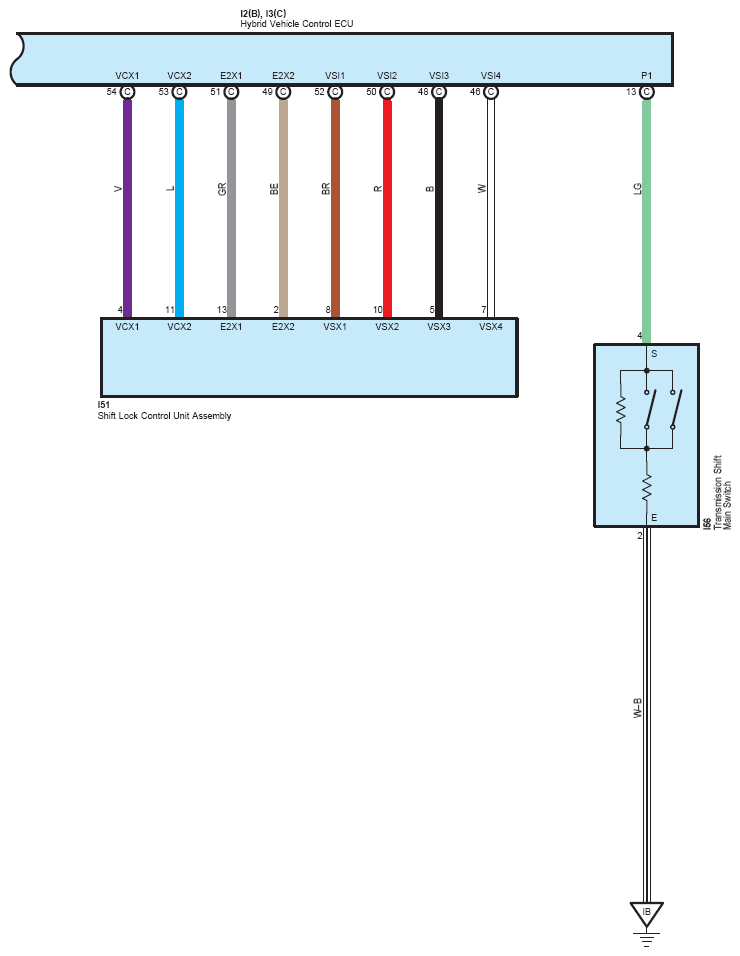

Fig 5: Door Lock Control (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

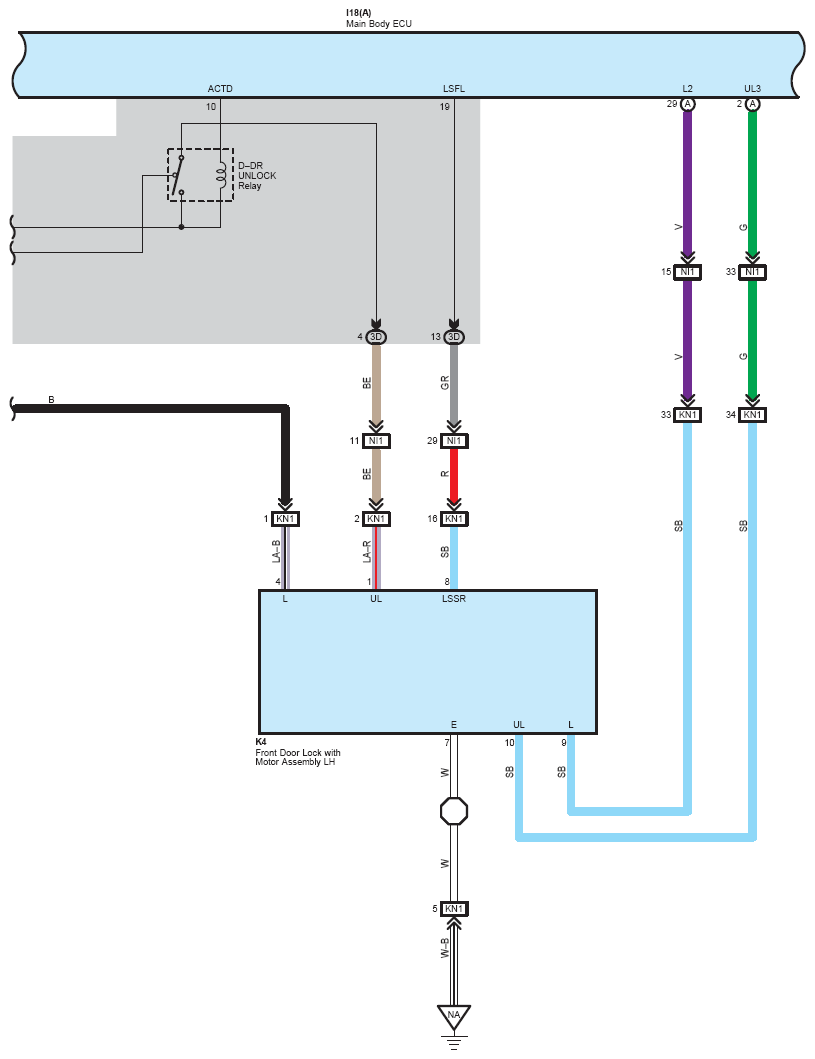

Fig 6: Door Lock Control (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

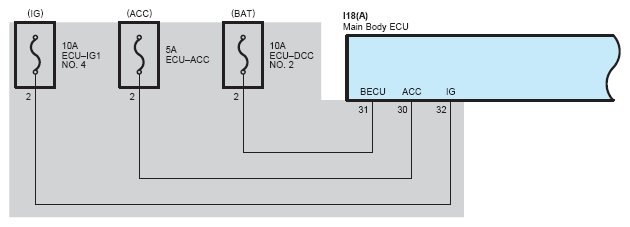

Fig 7: Door Lock Control (7 Of 9)

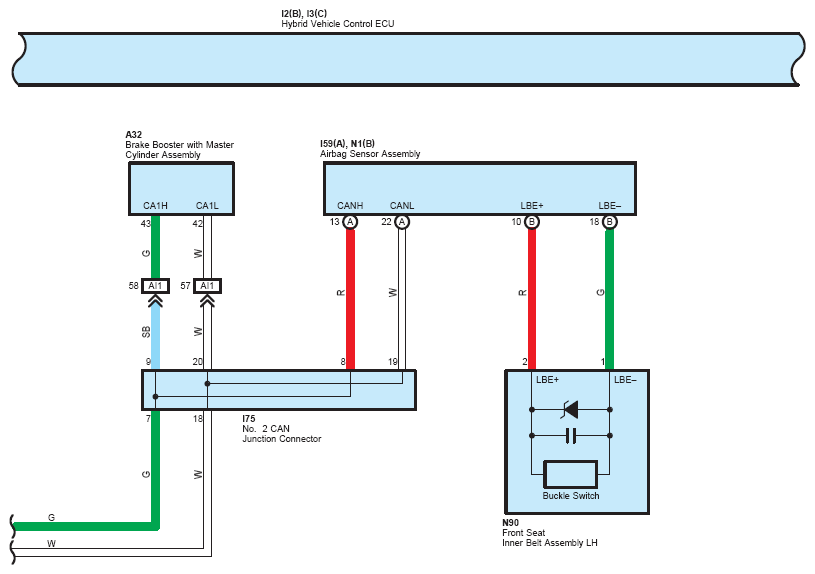

Fig 8: Door Lock Control (8 Of 9)

Fig 9: Door Lock Control (9 Of 9)
