System Diagrams

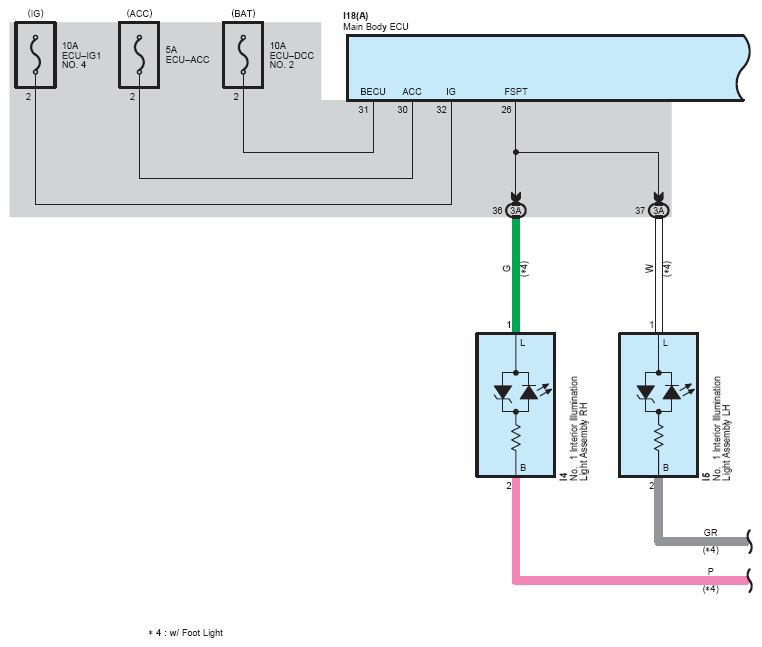

Fig 1: Interior Light (1 Of 7)
G12210550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

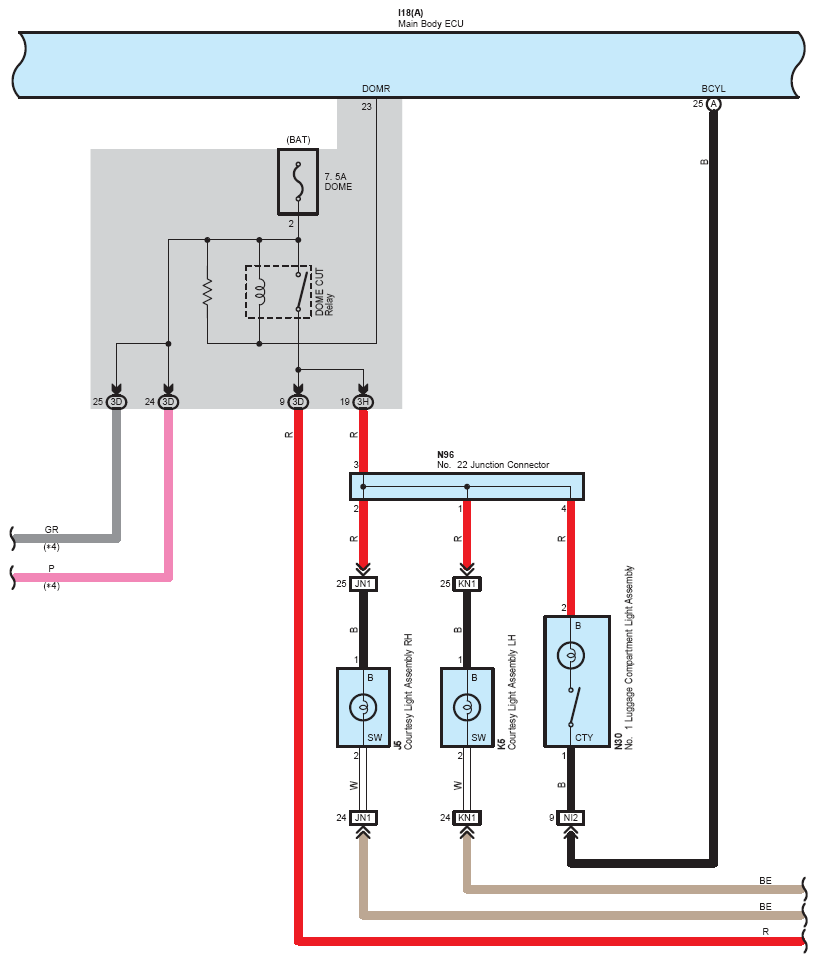

Fig 2: Interior Light (2 Of 7)
G12210551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

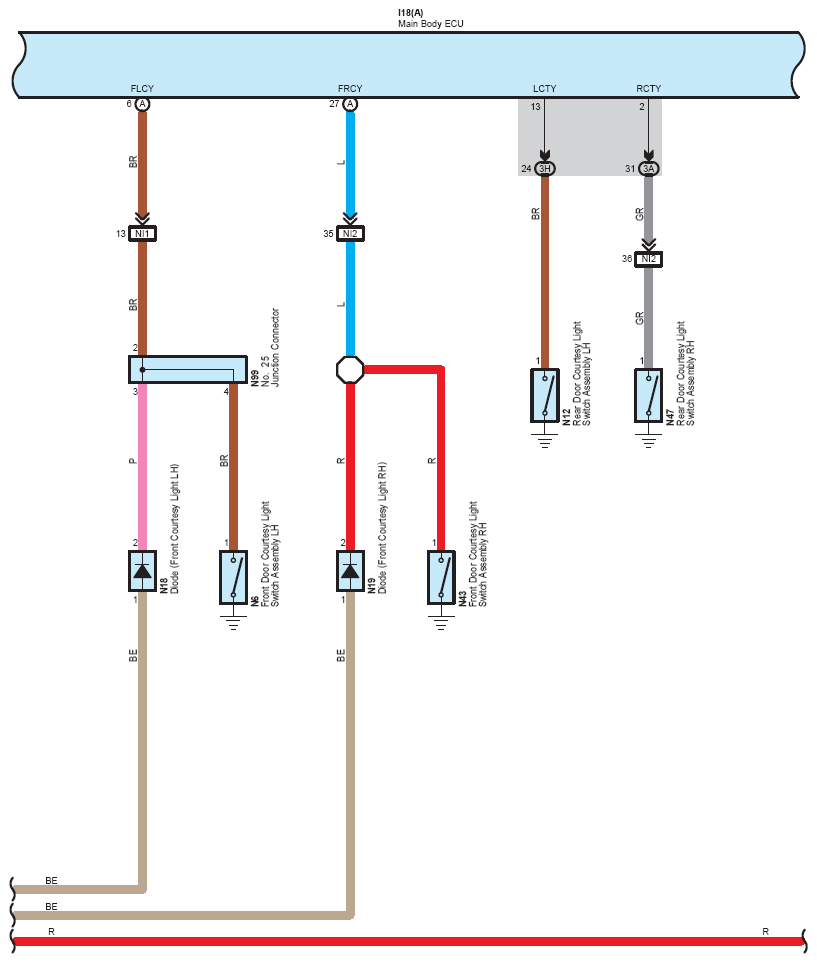

Fig 3: Interior Light (3 Of 7)
G12210552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

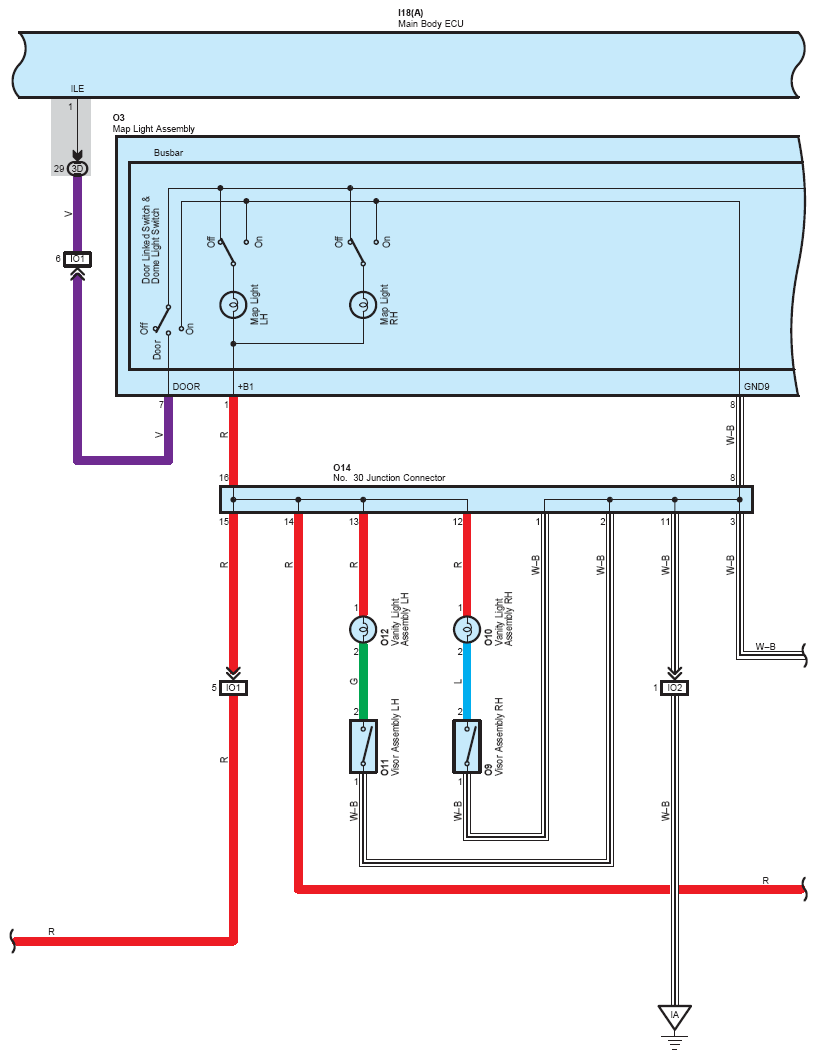

Fig 4: Interior Light (4 Of 7)
G12210553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

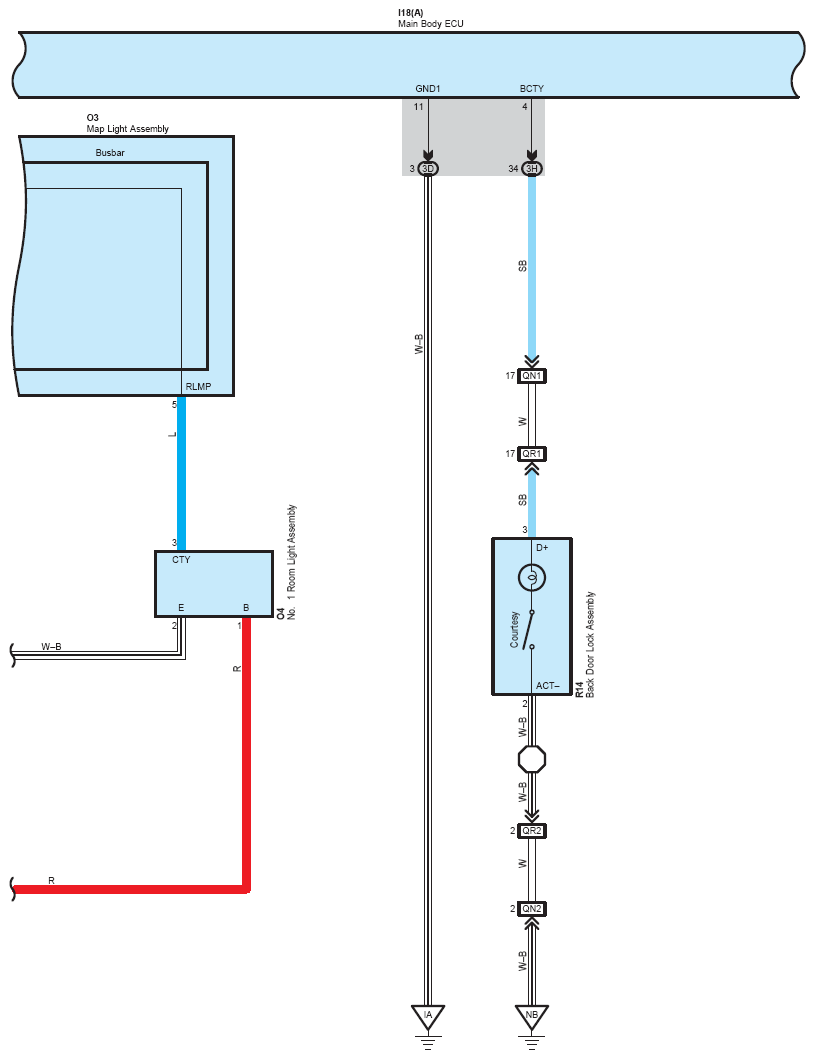

Fig 5: Interior Light (5 Of 7)
G12210554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

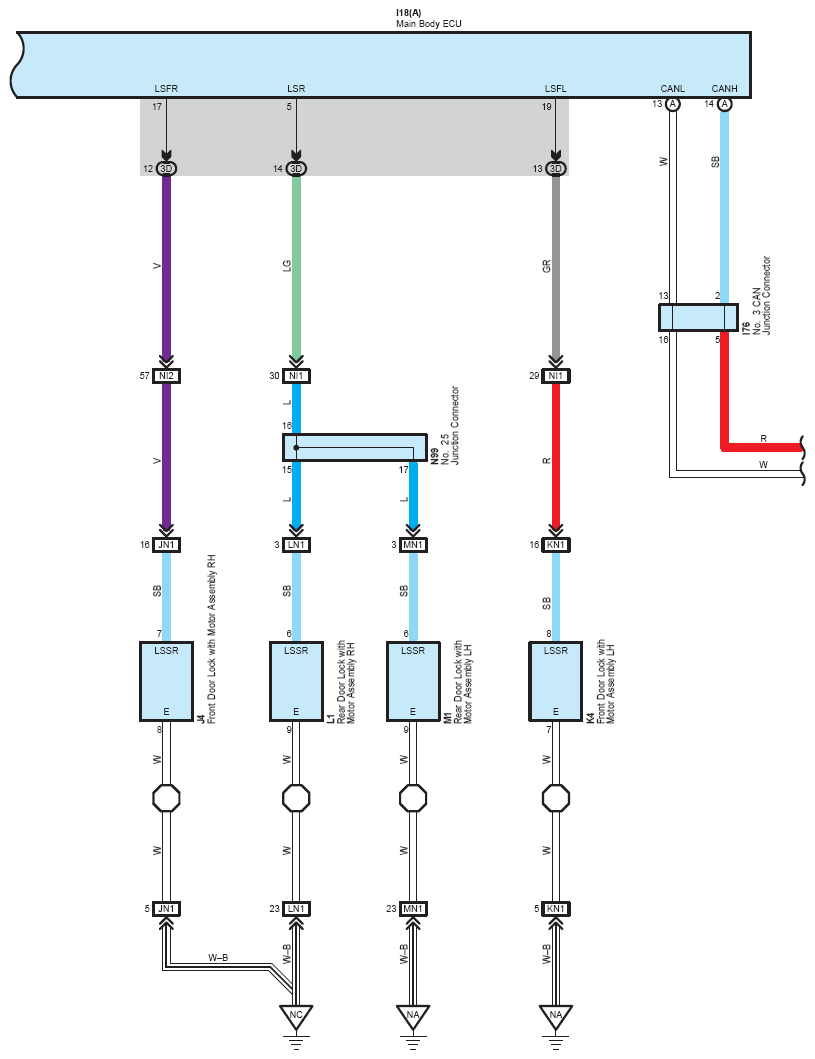

Fig 6: Interior Light (6 Of 7)
G12210555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

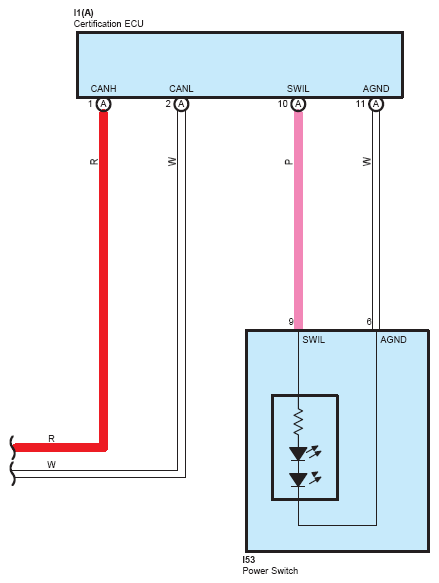

Fig 7: Interior Light (7 Of 7)
G12210556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
