System Diagrams — 2017 Toyota Prius Prime Advanced Service Manual ~ LEMON Manuals

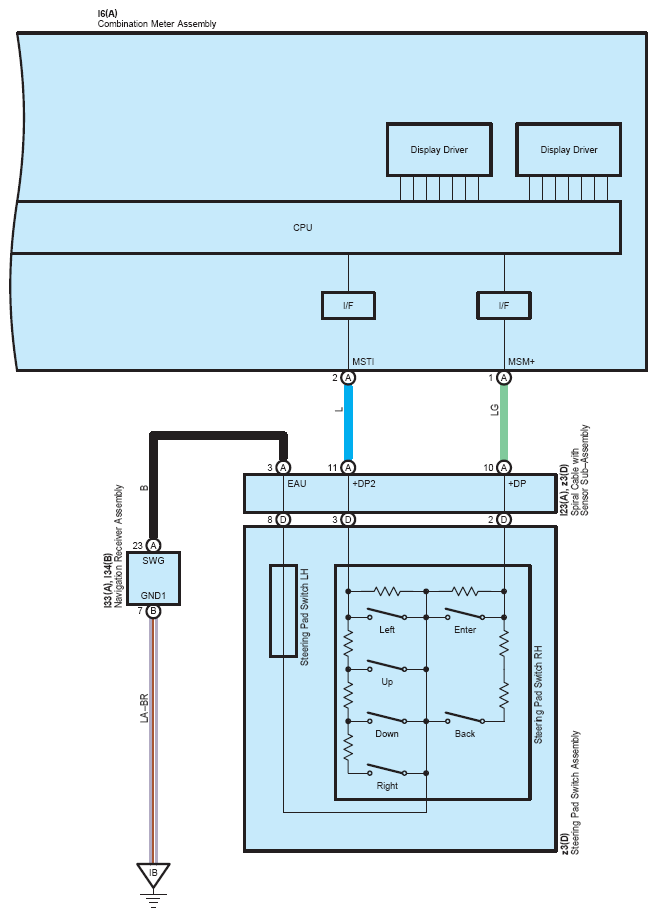

Fig 1: Pre-Collision System (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

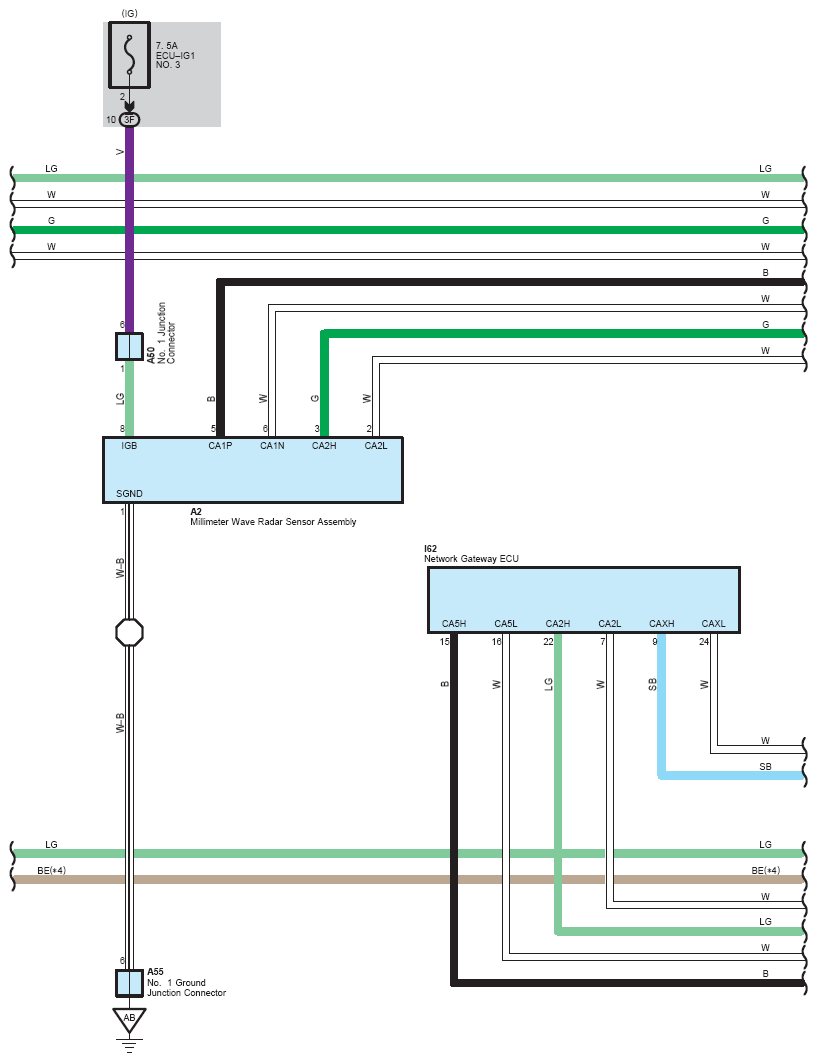

Fig 2: Pre-Collision System (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

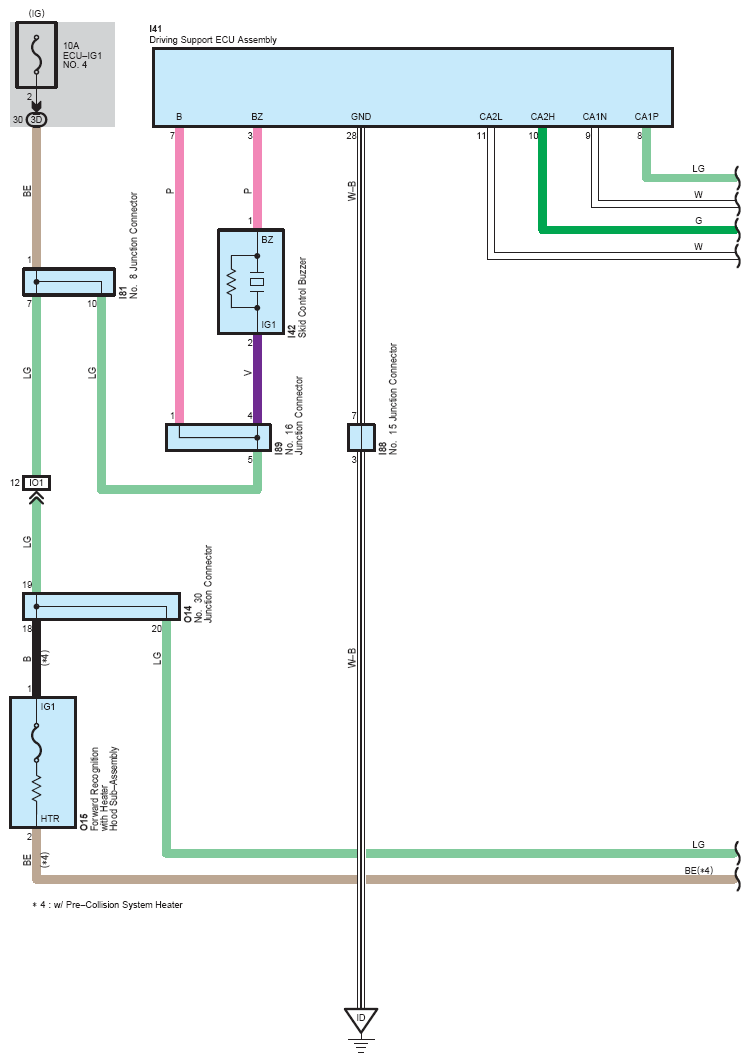

Fig 3: Pre-Collision System (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

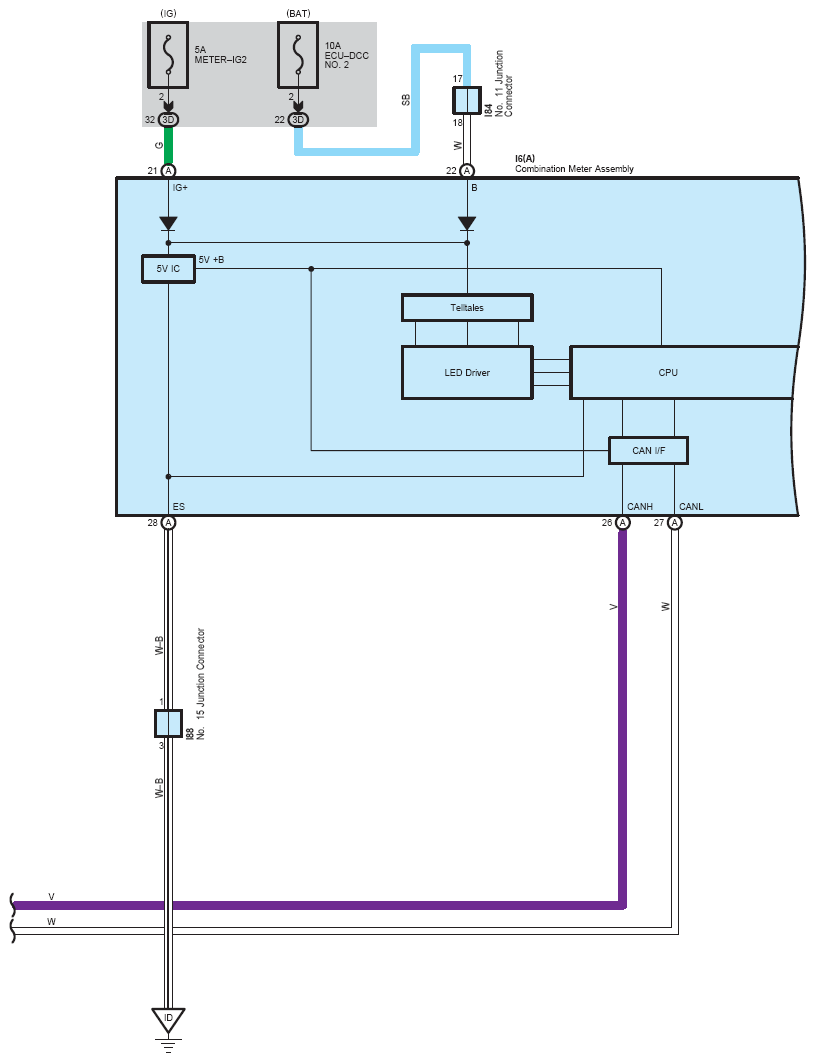

Fig 4: Pre-Collision System (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

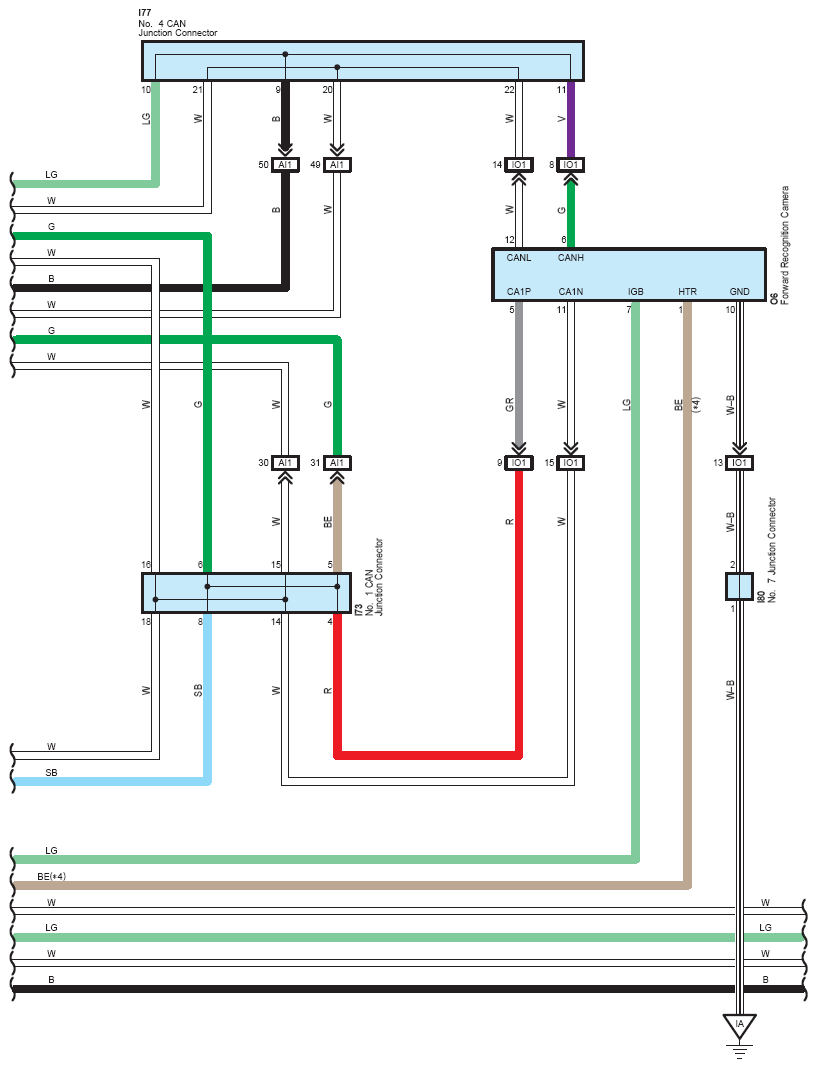

Fig 5: Pre-Collision System (5 Of 6)

Fig 6: Pre-Collision System (6 Of 6)
