Components [09/2016 - ]

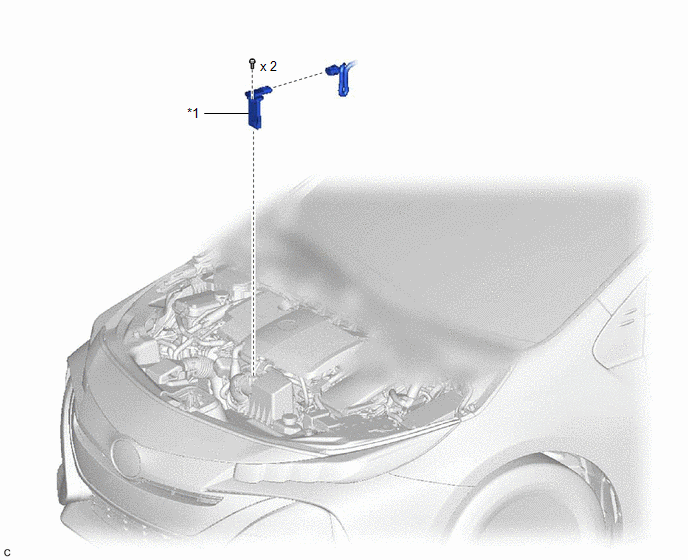

Fig 1: Mass Air Flow Meter Replacement Components
GTY696935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
