System Diagram [09/2016 - ]

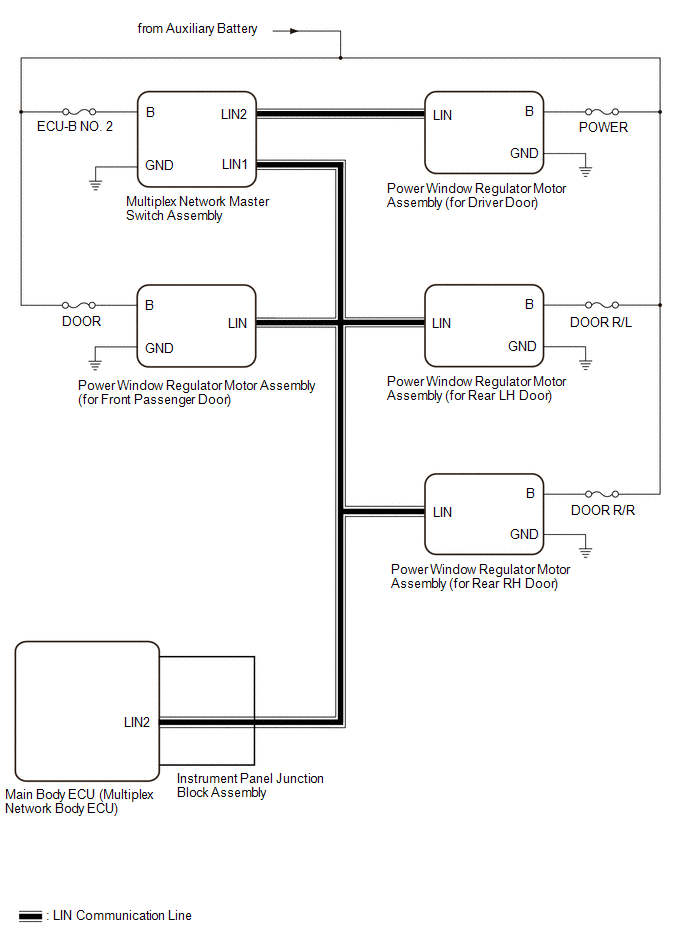

  1. DOOR BUS LINES
    GTY700339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

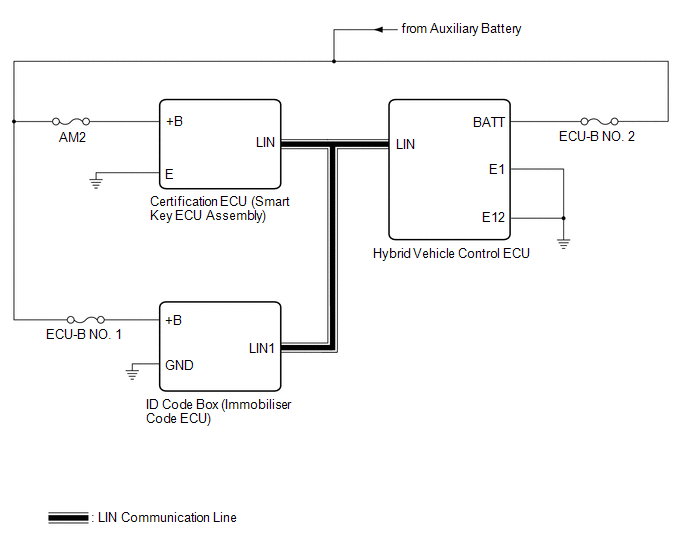

  2. CERTIFICATION BUS LINES
    GTY729067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
