Microphone Circuit between Microphone and Navigation Receiver Assembly [09/2016 - ]: Wiring Diagram

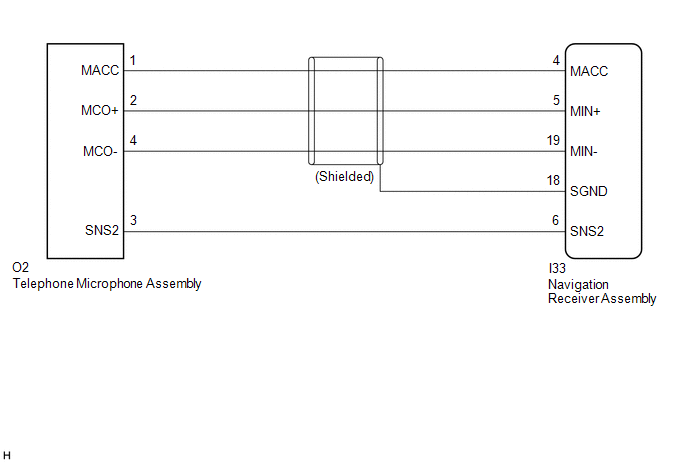

w/o Manual (SOS) Switch

GTY693615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

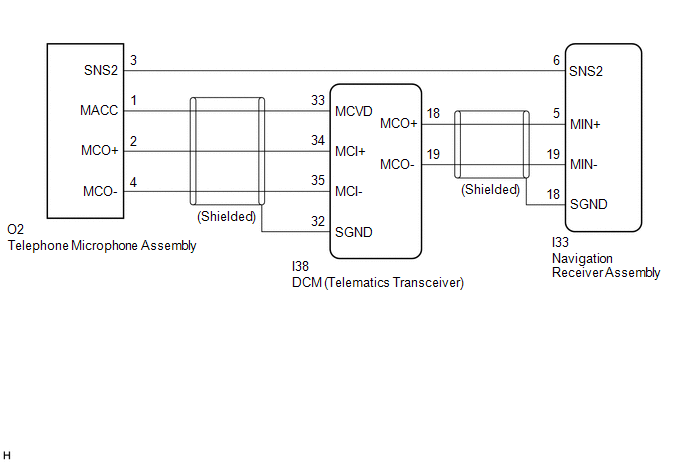

w/ Manual (SOS) Switch

GTY698194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
