System Diagram [07/2020 - ]

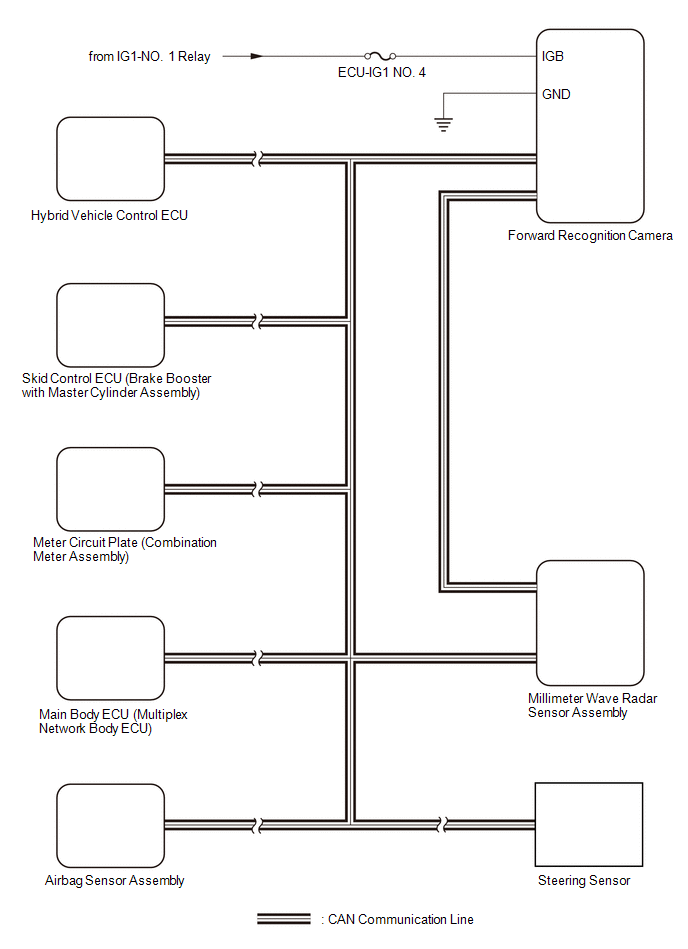

Fig 1: Pre-Collision System Diagram [07/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
