System Diagram [12/2018 - ]

WARNING: This page is about a different car, the 2022 Toyota Prius, 2021 Toyota Prius, 2020 Toyota Prius, and 2019 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

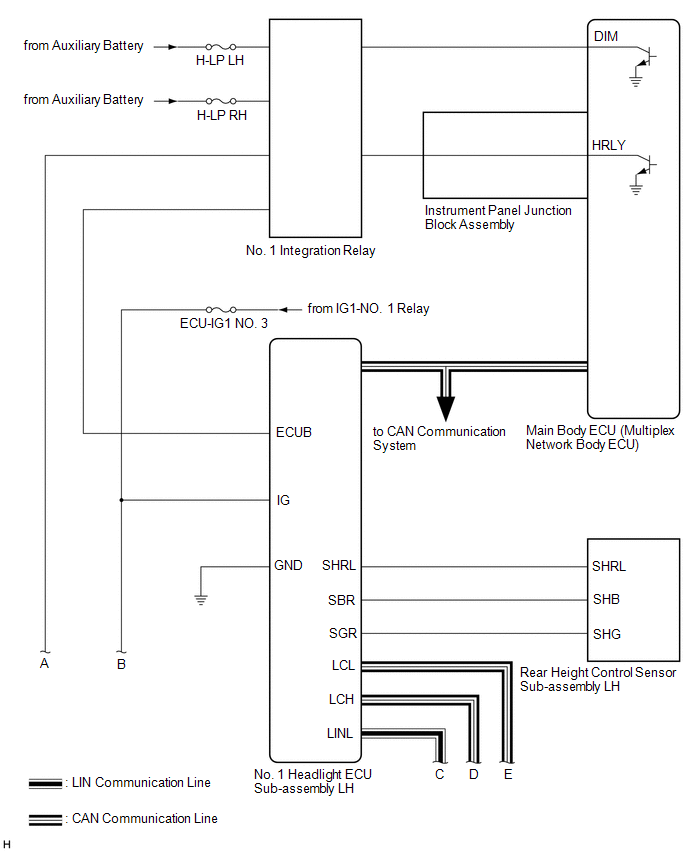

GTY861251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

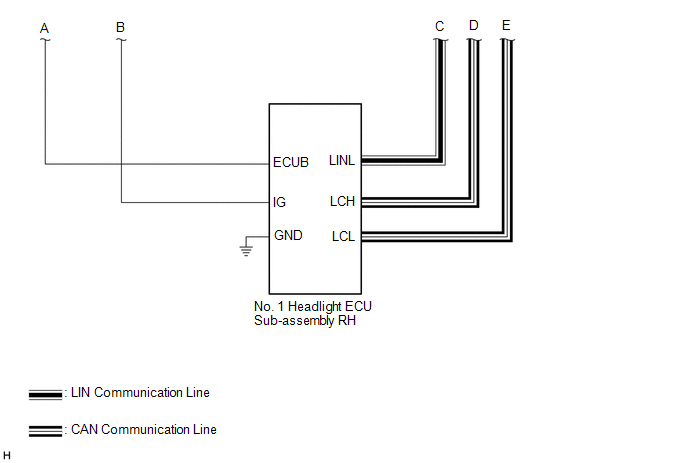

GTY864922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. HEADLIGHT ASSEMBLY CIRCUIT

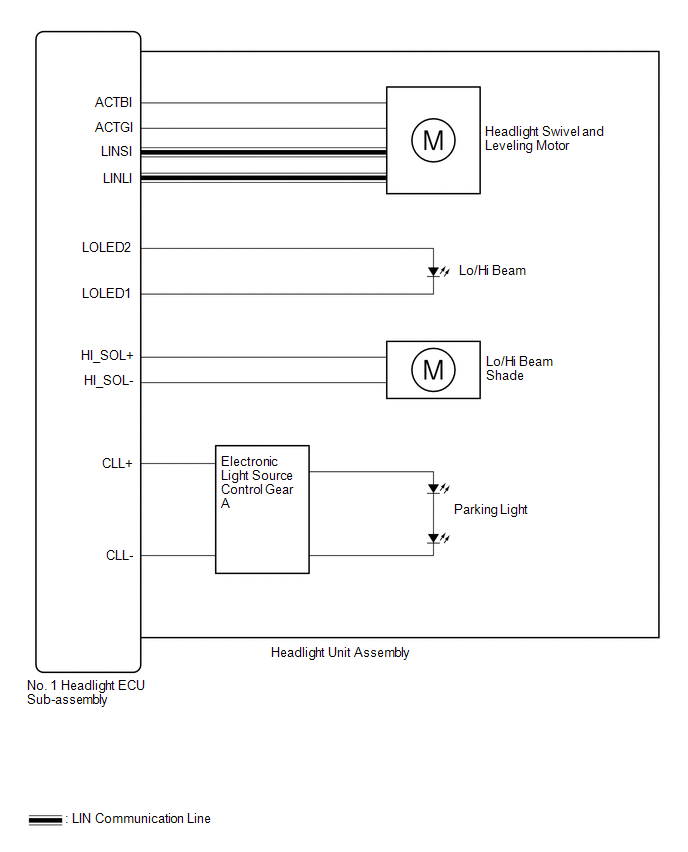

    GTY846834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
