System Diagrams

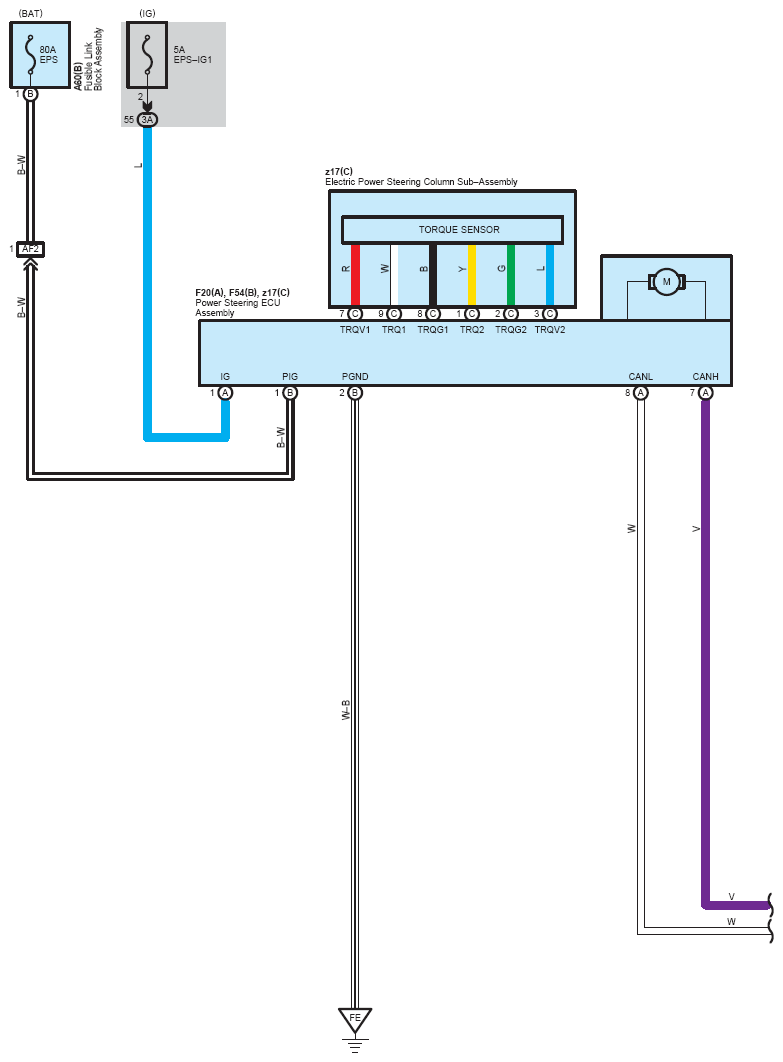

Fig 1: EPS (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

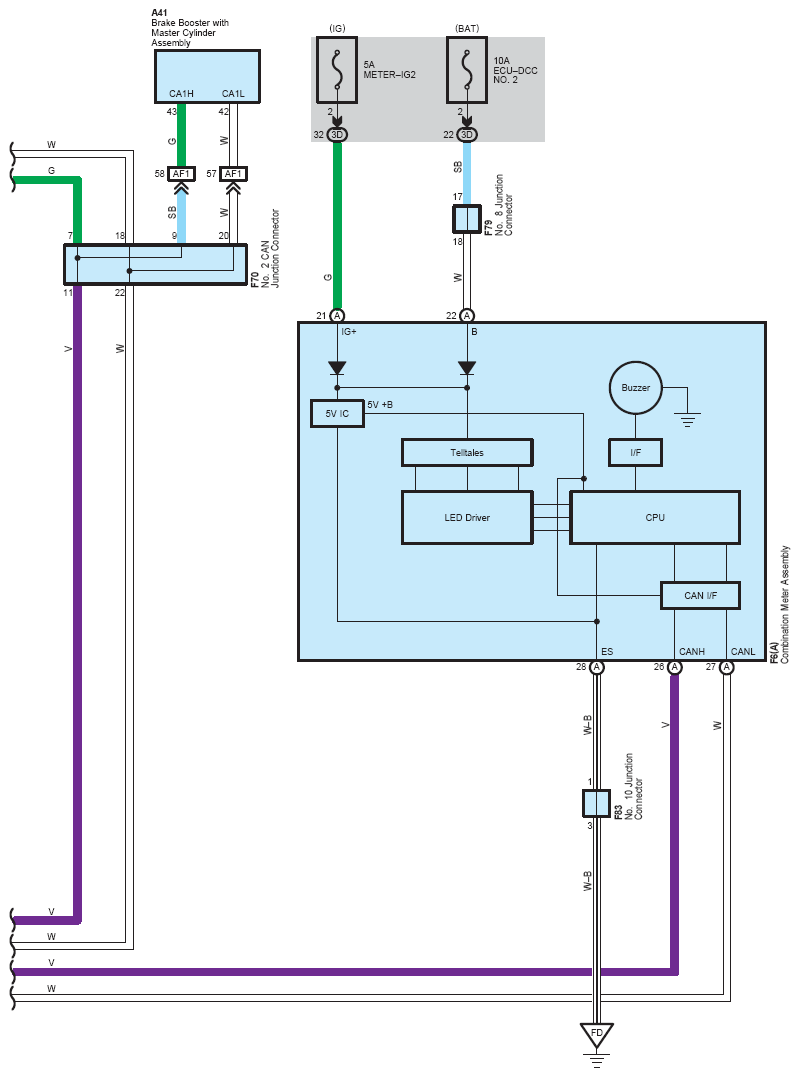

Fig 2: EPS (2 Of 3)

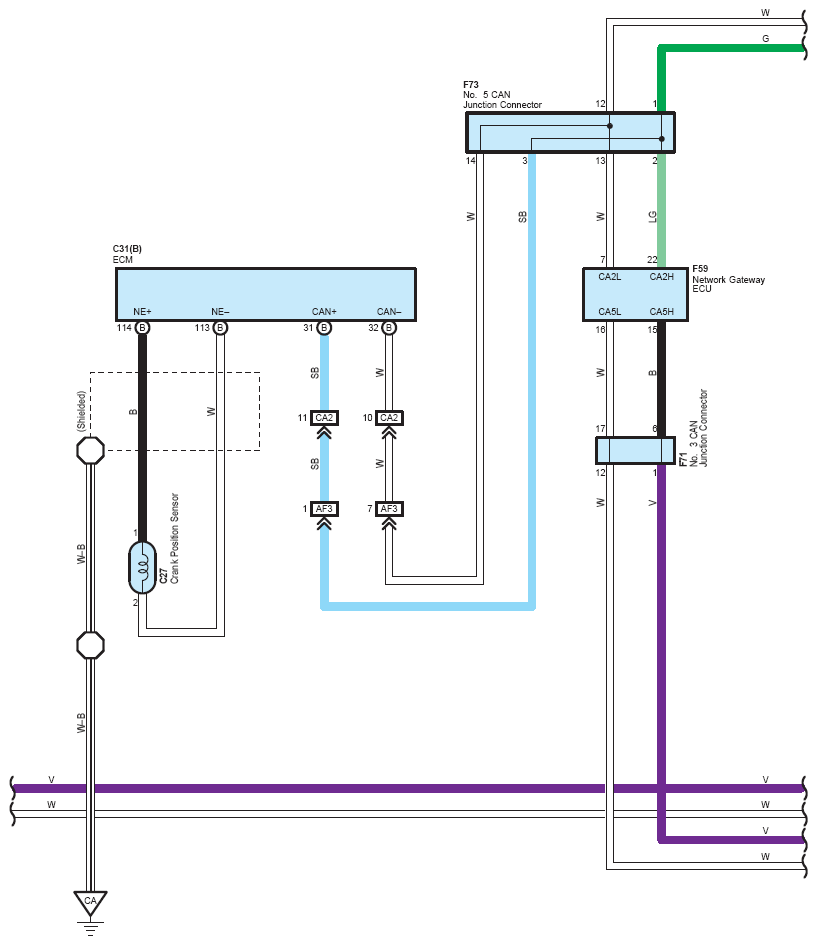

Fig 3: EPS (3 Of 3)
