Back Door Entry Lock Function does not Operate [08/2015 - ]: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [08/2015 - ] .

   OK

   Door locks operate normally.

NG → Refer to   6

OK: Go to next step

1. Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST [08/2015 - ] .
   SMART KEY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Tr/B-Door Lock SW	Back door opener switch (lock switch) / ON or OFF	ON: Back door opener switch (lock switch) pushed OFF: Back door opener switch (lock switch) not pushed	Displays whether the back door opener switch assembly (lock switch) is on or off. Use this Data List item to help determine if there is a switch malfunction when the back door lock function does not operate.

   OK

   The Techstream display changes correctly in response to the operation of the back door opener switch assembly.

NG → Refer to   3

OK → Refer to   5

1. Disconnect the V4 back door opener switch assembly connector.
2. Disconnect the L62 certification ECU (smart key ECU assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   V4-1 (L) - L62-23 (TSW6)	Always	Below 1 Ω
   V4-2 (E) - Body ground	Always	Below 1 Ω
   V4-1 (L) or L62-23 (TSW6) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the back door opener switch assembly. Refer to REMOVAL [08/2015 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   1 (L) - 2 (E)	No switch pushed	10 kΩ or higher
   1 (L) - 2 (E)	Lock switch pushed	Below 1 Ω

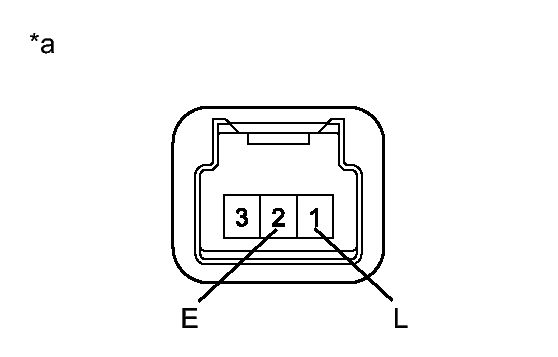

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Back Door Opener Switch Assembly)

NG → Refer to   7

OK → Refer to   5
