Driver Side Door Entry Unlock Function does not Operate [08/2015 - ]: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [08/2015 - ] .

   OK

   Door locks operate normally.

NG → Refer to   6

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FL Door Lock Pos	Front LH door lock position switch signal / UNLOCK or LOCK	UNLOCK: Front LH door unlocked LOCK: Front LH door locked	-

   OK

   On the Techstream screen, the display changes between LOCK and UNLOCK as shown in the chart above.

NG → Refer to   9

OK: Go to next step

1. Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST [08/2015 - ] .
   SMART KEY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D-Door Touch Sensor	Driver door touch sensor (unlock sensor) / ON or OFF	ON: Driver door touch sensor (unlock sensor) touched OFF: Driver door touch sensor (unlock sensor) not touched	Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily). Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.

   OK

   The Techstream display changes correctly in response to the operation of the front door outside handle assembly (for driver door).

NG → Refer to   4

OK → Refer to   7

1. Disconnect the n1 front door outside handle assembly (for driver door) connector.
2. Disconnect the L62 certification ECU (smart key ECU assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   n1-4 (SENS) - L62-20 (SEN1)	Always	Below 1 Ω
   L62-15 (E) - Body ground	Always	Below 1 Ω
   n1-4 (SENS) or L62-20 (SEN1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the n1 front door outside handle assembly (for driver door) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

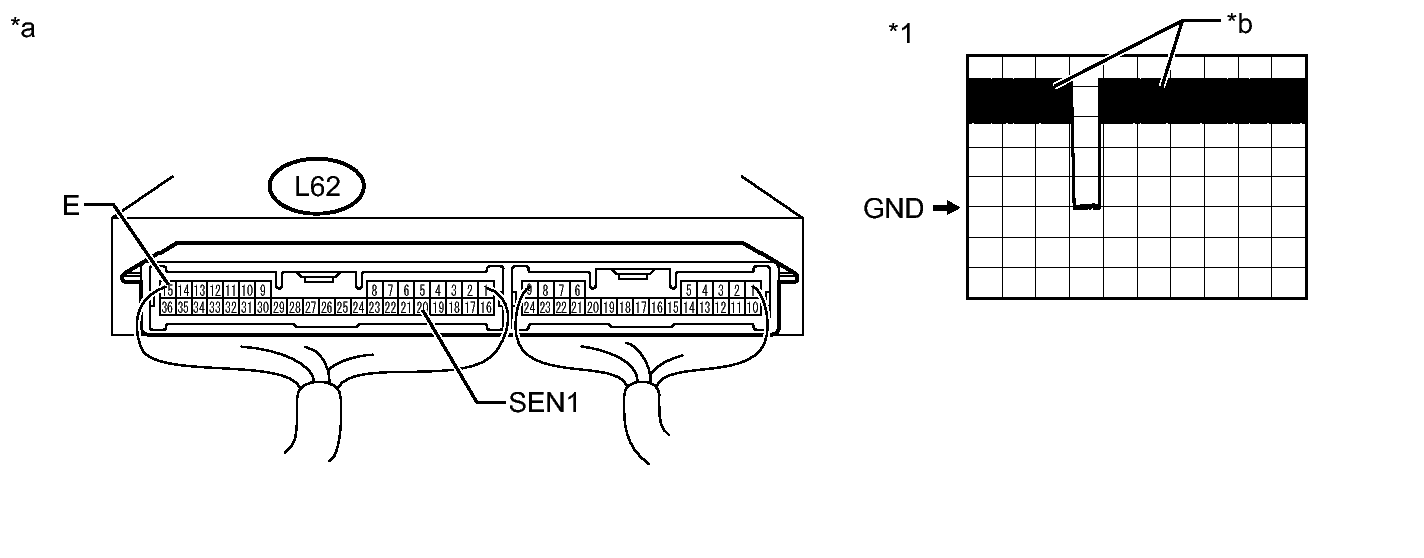

   TEXT IN ILLUSTRATION



   *1	Waveform	-	-
   *a	Component with harness connected (Certification ECU (smart key ECU assembly))	*b	In actuality, sampling is being performed

2. Connect the L62 certification ECU (smart key ECU assembly) connector.
3. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   L62-20 (SEN1) - L62-15 (E)	Procedure: Power switch off Key brought outside vehicle All doors locked Key not sufficiently close to vehicle Driver door unlock sensor not touched → touched	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

NG → Refer to   8

OK → Refer to   7
