Audio Receiver Assembly Communication Stop Mode [08/2015 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the L35 radio and display receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L35-9 (CANH) - L35-10 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION

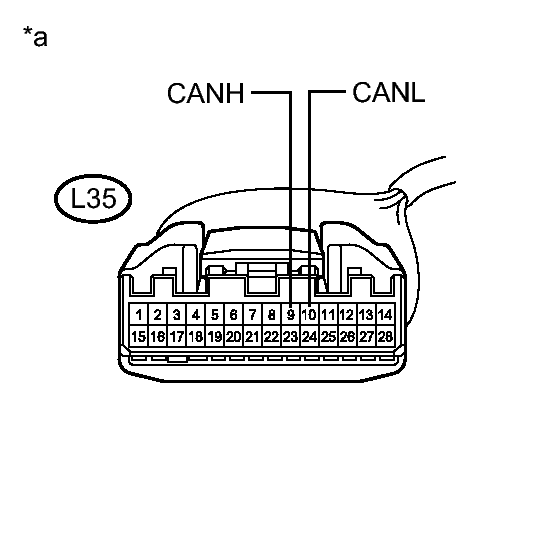

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

NG → REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

OK: Go to next step

1. Disconnect the L150 radio and display receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L150-7 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

3. Connect the cable to the negative (-) auxiliary battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L150-3 (ACC1) - Body ground	Power switch on (ACC)	11 to 14 V
   L150-4 (+B1) - Body ground	Power switch off	11 to 14 V
   L35-1 (IG) - Body ground	Power switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

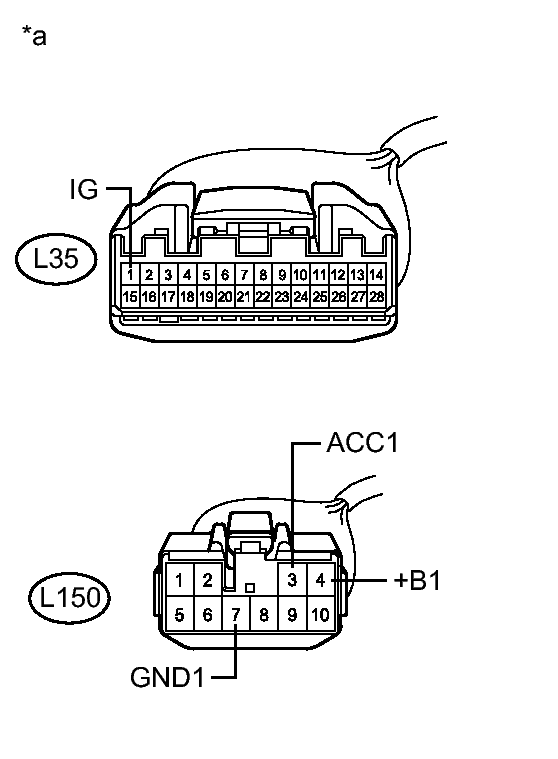

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK → Refer to   3
