Audio Receiver Assembly Communication Stop Mode [08/2015 - ]: Wiring Diagram

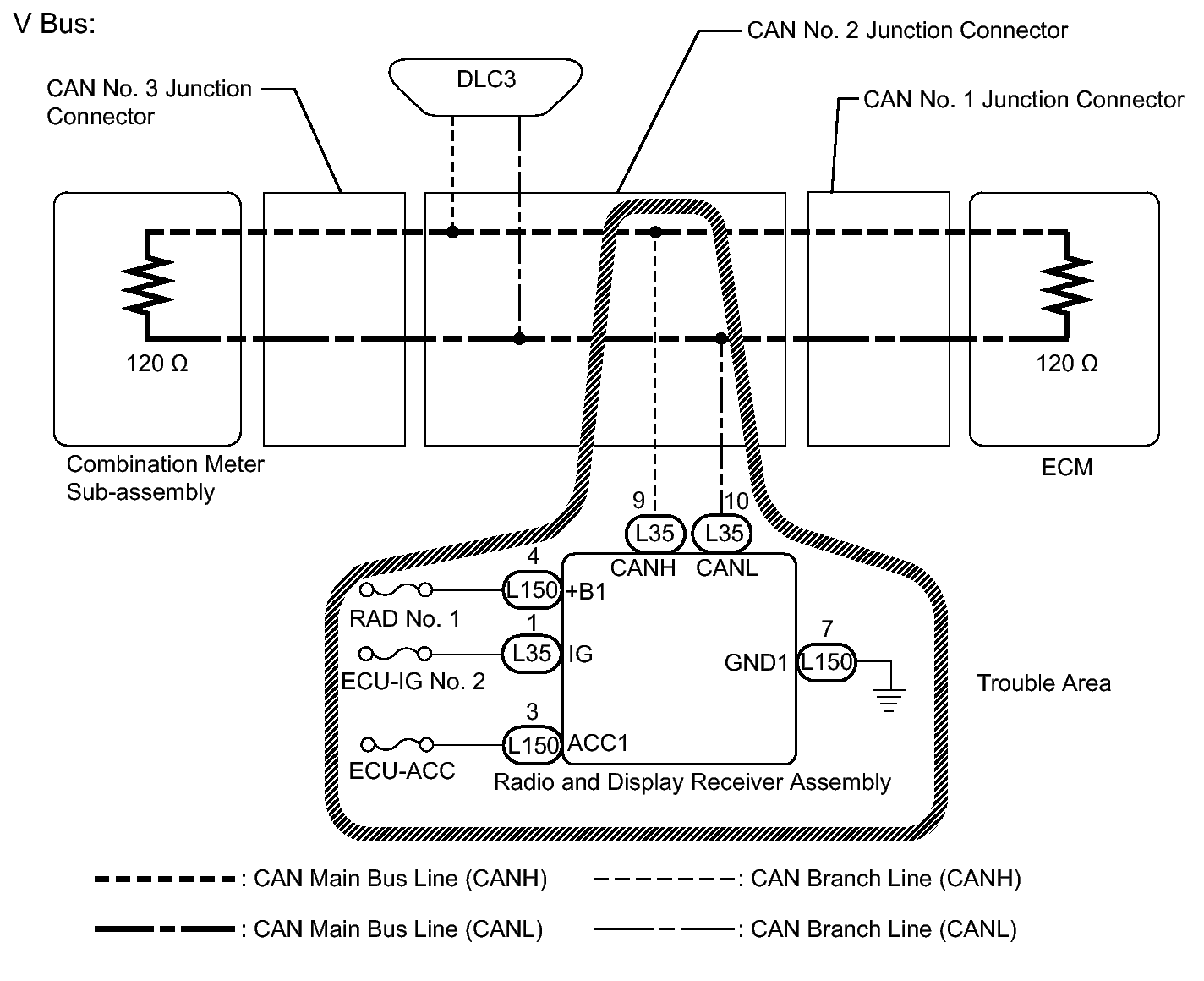

Fig 1: Radio & Display Receiver Assembly Wiring Diagram
GTY477277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
