Steering Angle Sensor Communication Stop Mode [08/2015 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the L51 spiral cable with sensor sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L51-4 (CANH) - L51-3 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION

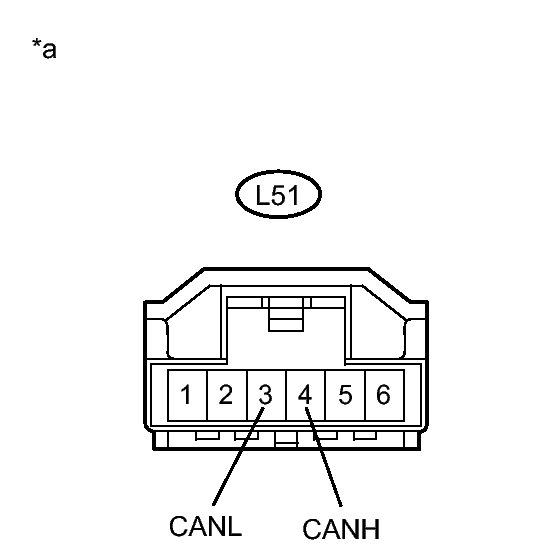

   *a	Front view of wire harness connector (to Spiral Cable with Sensor Sub-assembly)

NG → REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY)

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L51-2 (ESS) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION

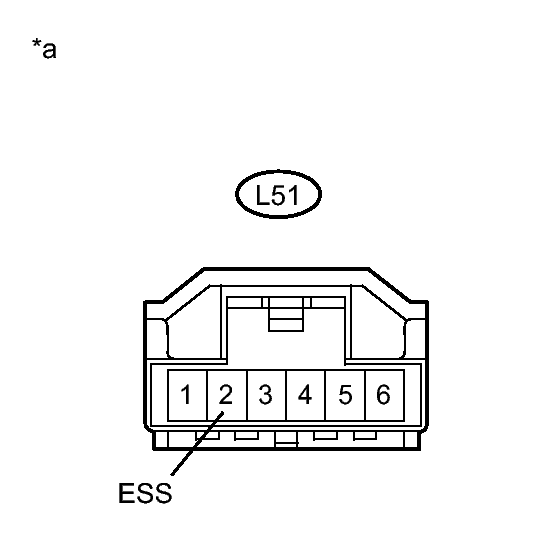

   *a	Front view of wire harness connector (to Spiral Cable with Sensor Sub-assembly)

2. Connect the cable to the negative (-) auxiliary battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L51-5 (IG) - Body ground	Power switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

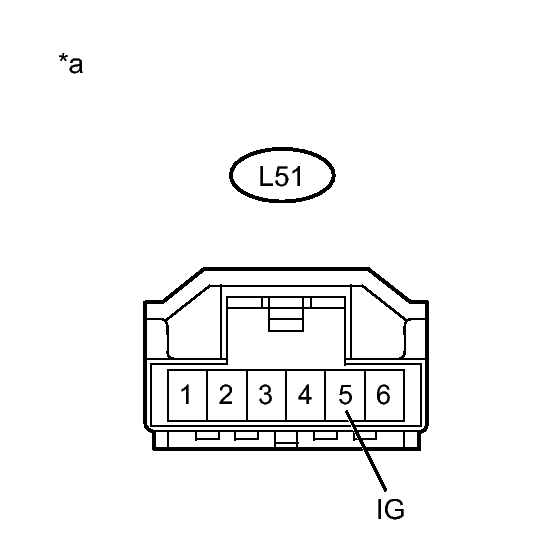

   *a	Front view of wire harness connector (to Spiral Cable with Sensor Sub-assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK → Refer to   3
