DTC U1002: Lost Communication with Gateway Module (Sensor Bus); DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor [08/2015 - ]: Wiring Diagram

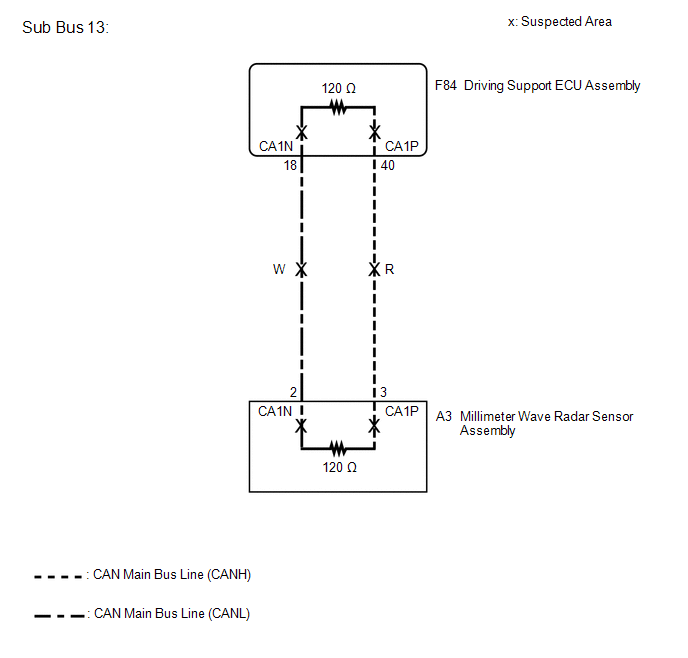

Fig 1: Sensor Bus Wiring Diagram
GTY425591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
