Data Signal Circuit between Navigation Receiver Assembly and Extension Module [08/2015 - ]: Wiring Diagram

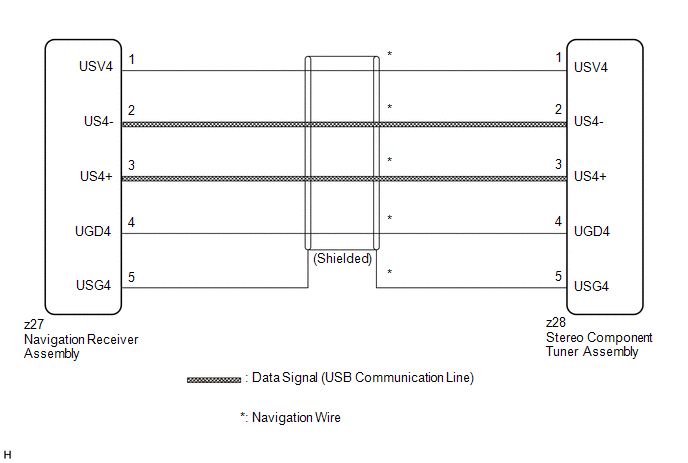

Fig 1: Stereo Component Tuner Assembly To Navigation Receiver Assembly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
