Data Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [08/2015 - ]: Wiring Diagram

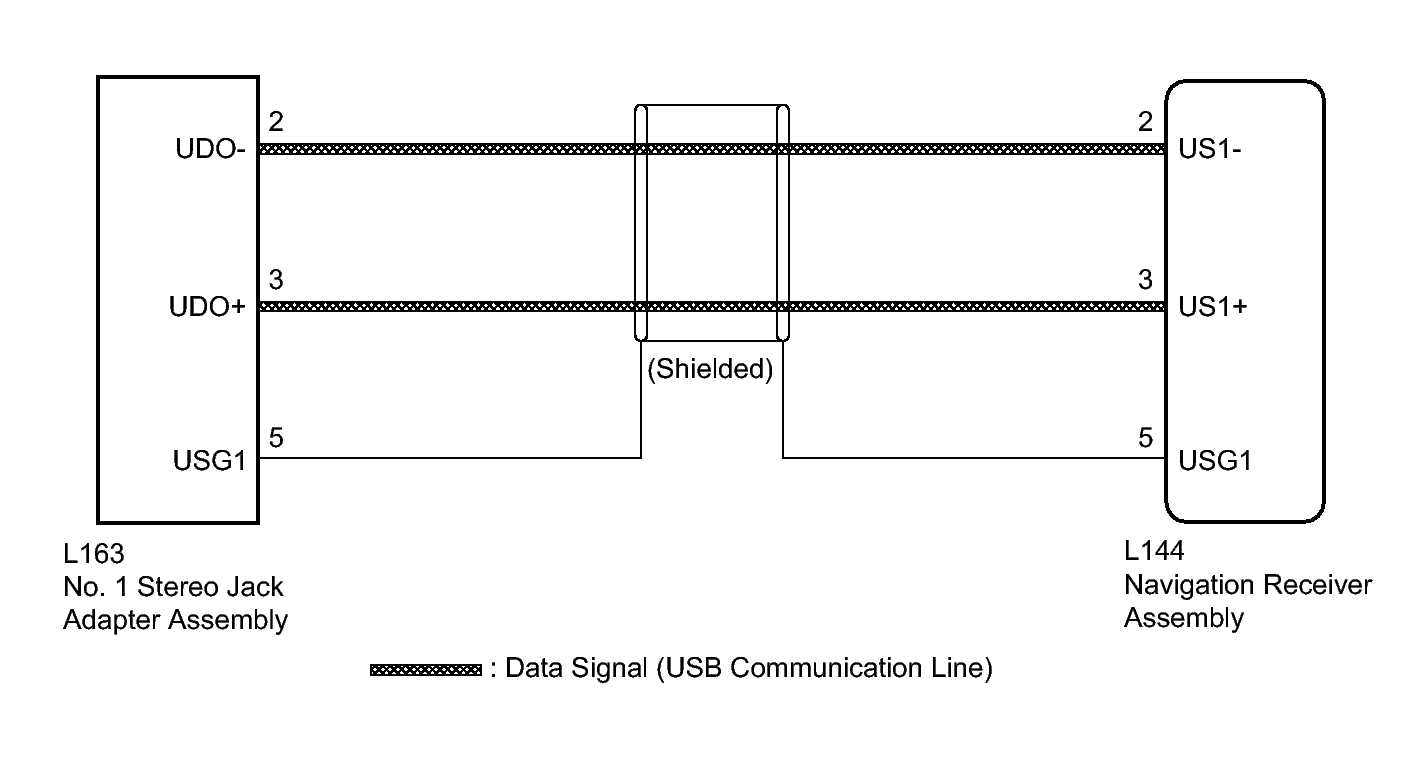

Fig 1: No. 1 Stereo Jack Adapter Assembly To Navigation Receiver Assembly Wirirng Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
