Navigation Receiver Assembly Power Source Circuit [08/2015 - ]: Wiring Diagram

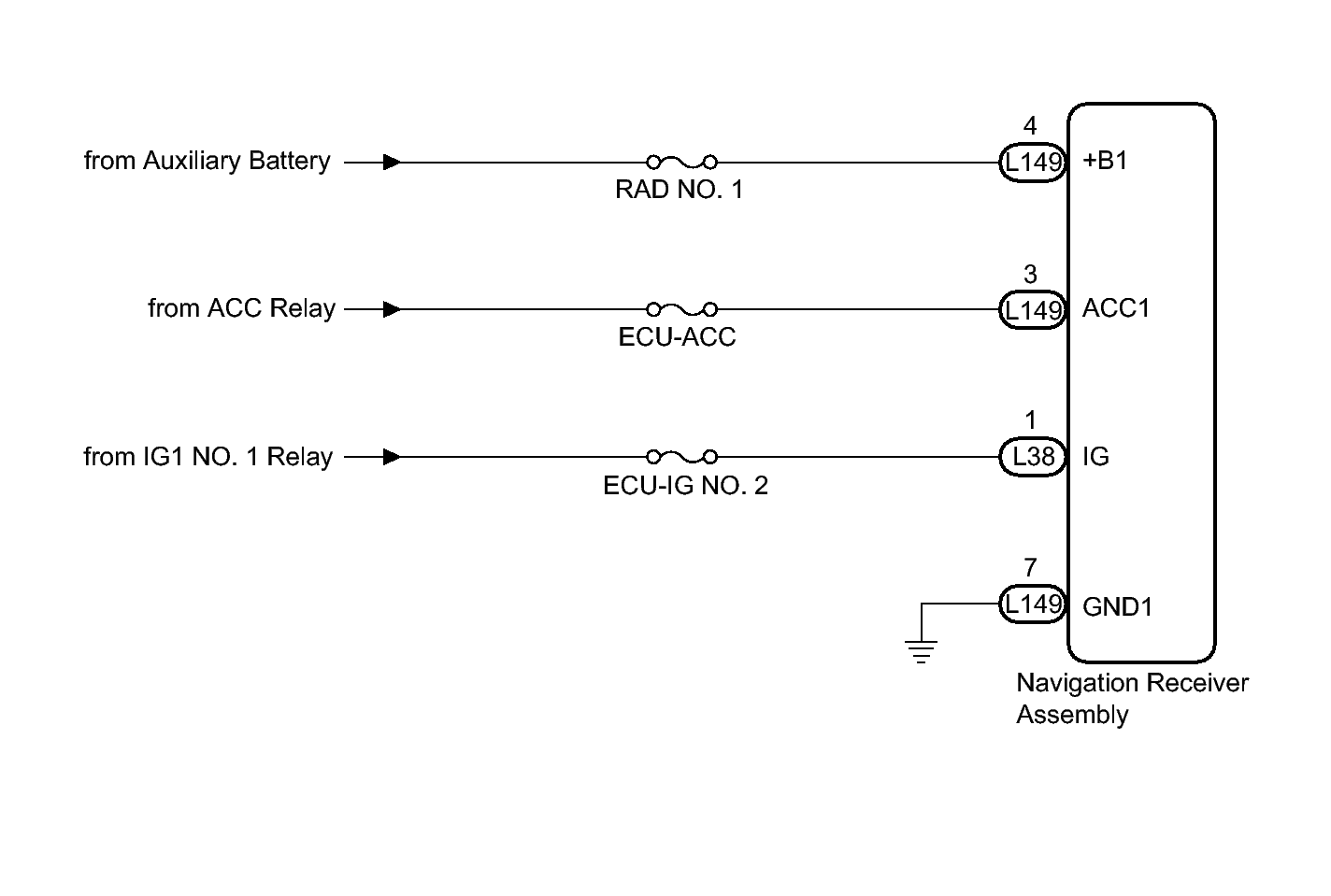

Fig 1: Navigation Receiver Assembly Power Source Wiring Diagram
