Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier [08/2015 - ]: Wiring Diagram

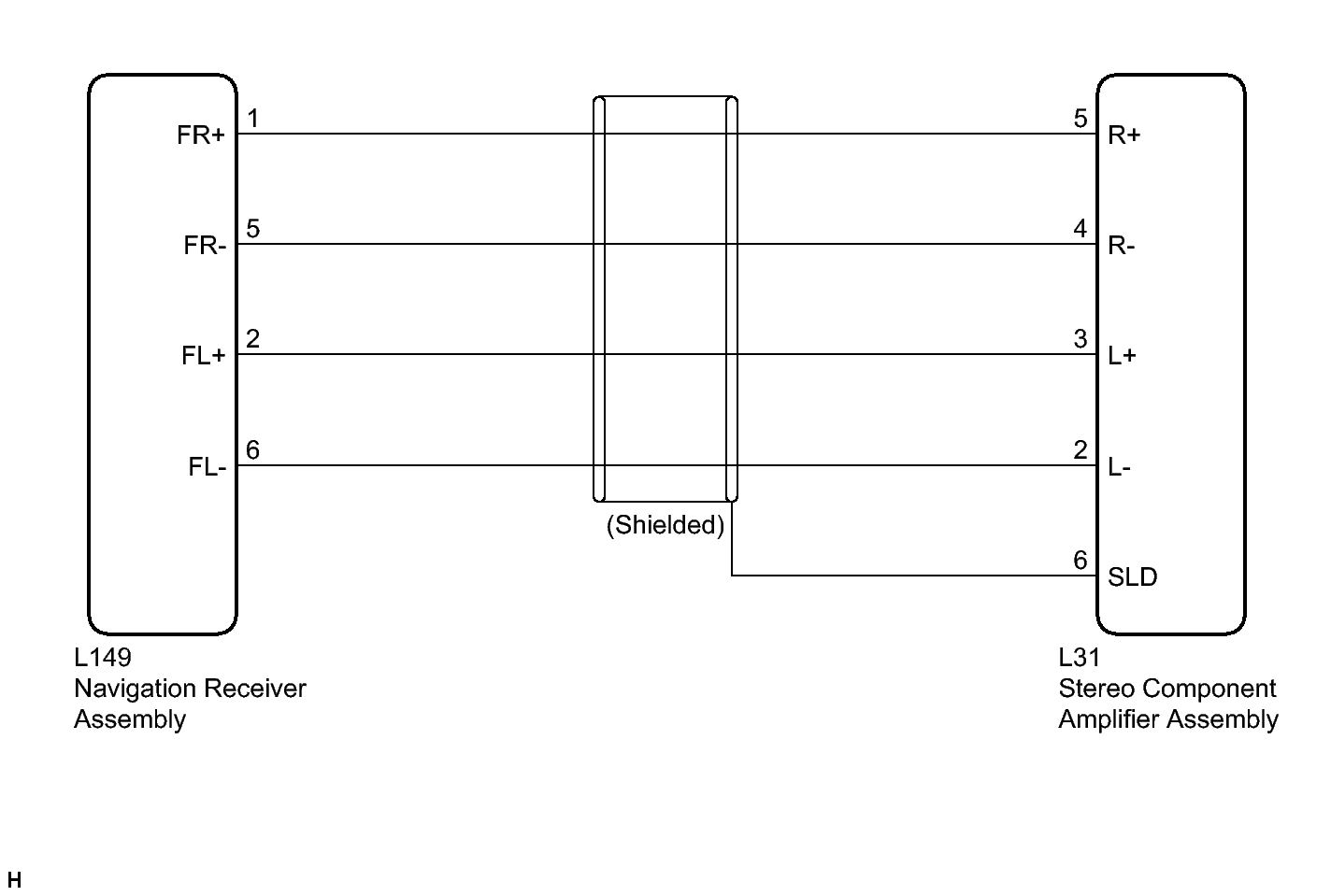

Fig 1: Navigation Receiver Assembly To Stereo Component Amplifier Wiring Diagram
GTY479342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
