DTC C1273/73: Low Output Signal of Rear Speed Sensor RH (Test Mode DTC); DTC C1274/74: Low Output Signal of Rear Speed Sensor LH (Test Mode DTC); DTC C1466/33: Rear Speed Sensor RH Circuit; DTC C1467/34: Rear Speed Sensor LH Circuit [08/2015 - ]: Wiring Diagram

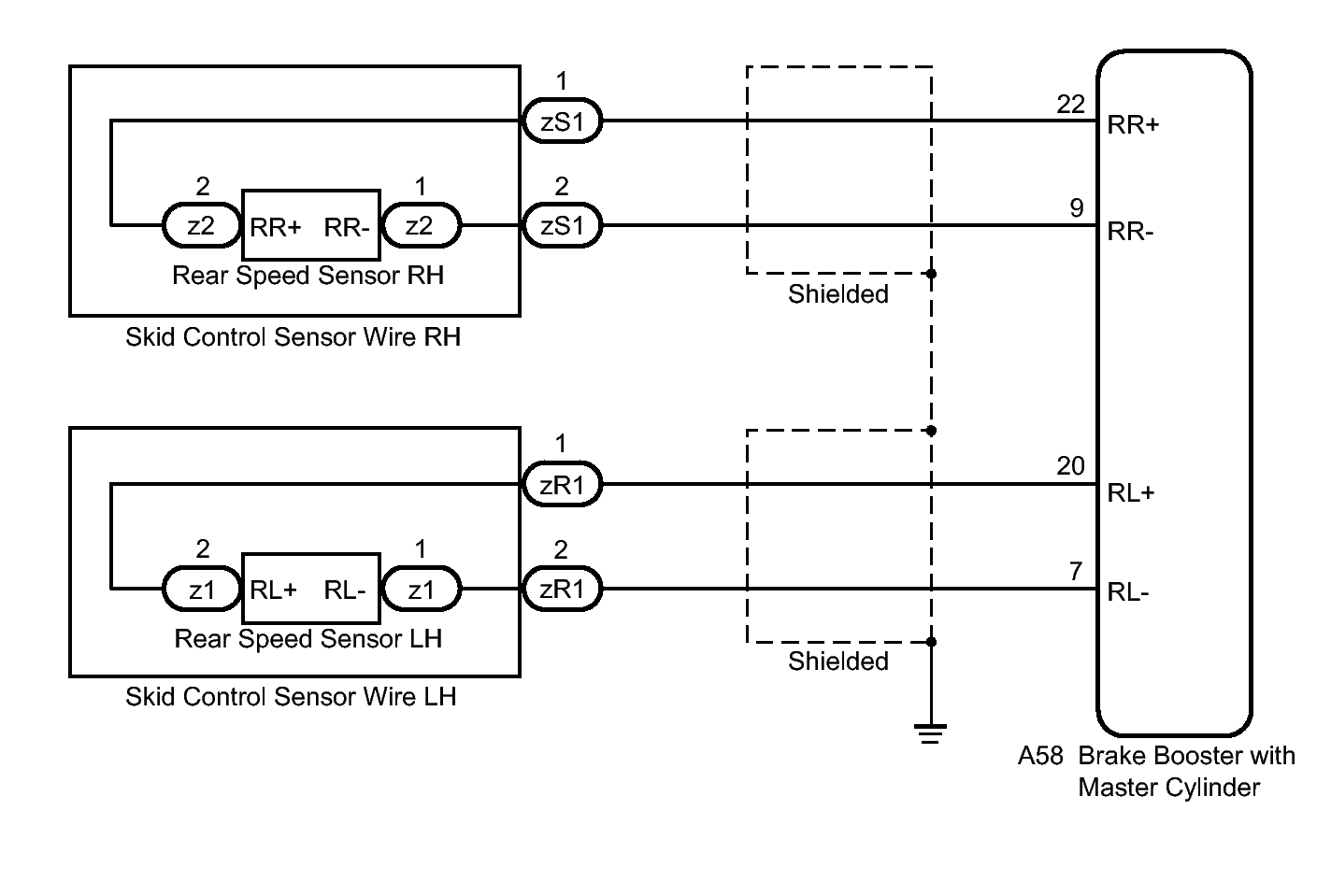

Fig 1: Rear Speed Sensors Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
