Confirmation Driving Pattern

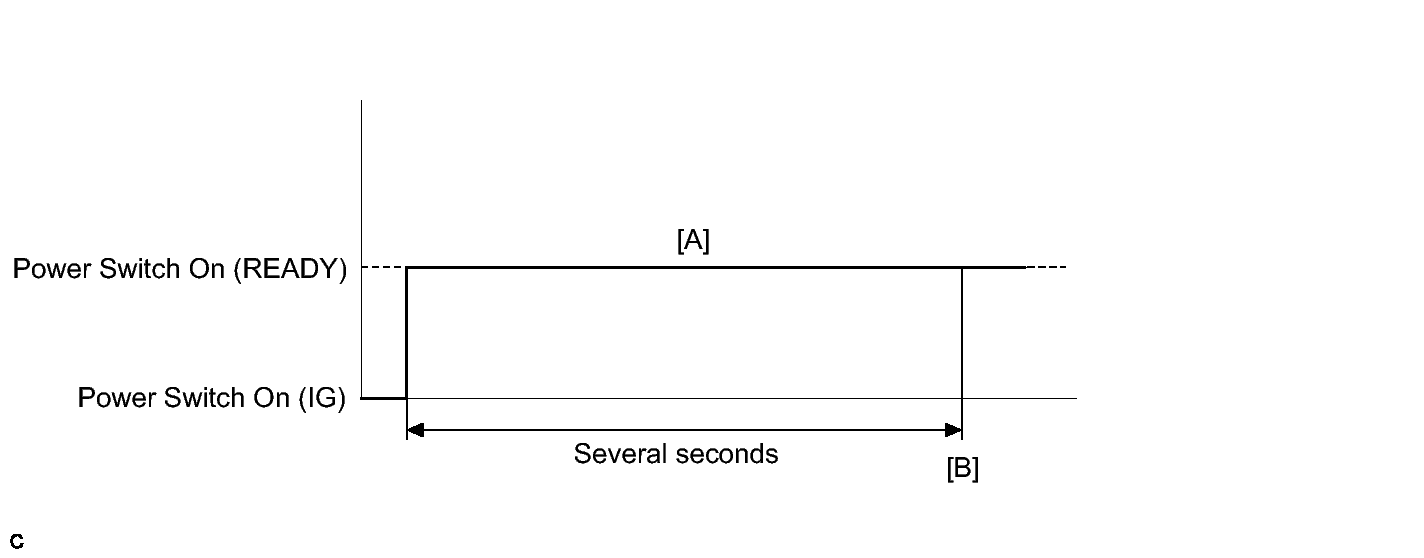

Fig 1: Power Switch On Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
4. Turn the power switch off.
5. Turn the power switch on (IG) and check that there are no abnormalities (abnormal sounds, coolant leaks, DTC output, etc).
6. Turn the power switch on (READY) and turn the Techstream on. [A]
7. With park (P) selected, wait for several seconds.
8. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes. [B]
9. Check that permanent DTCs are cleared.
10. If the permanent DTCs are not cleared, perform a universal trip, and then check for permanent DTCs again.

HINT:

• If a permanent DTC is output, the system is malfunctioning.
• If no permanent DTC is output, the system is normal.
