Pre-collision System Cancel Switch Circuit [08/2015 - ]: Wiring Diagram

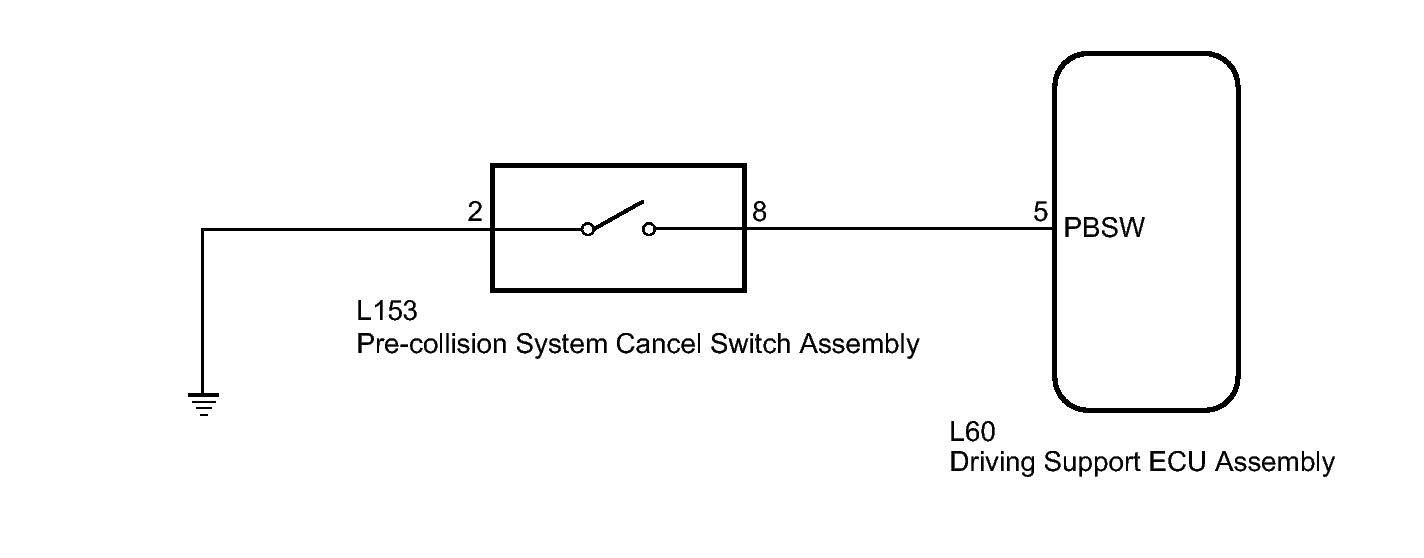

Fig 1: Pre-Collision System Cancel Switch Wiring Diagram
GTY480401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
