System Diagrams

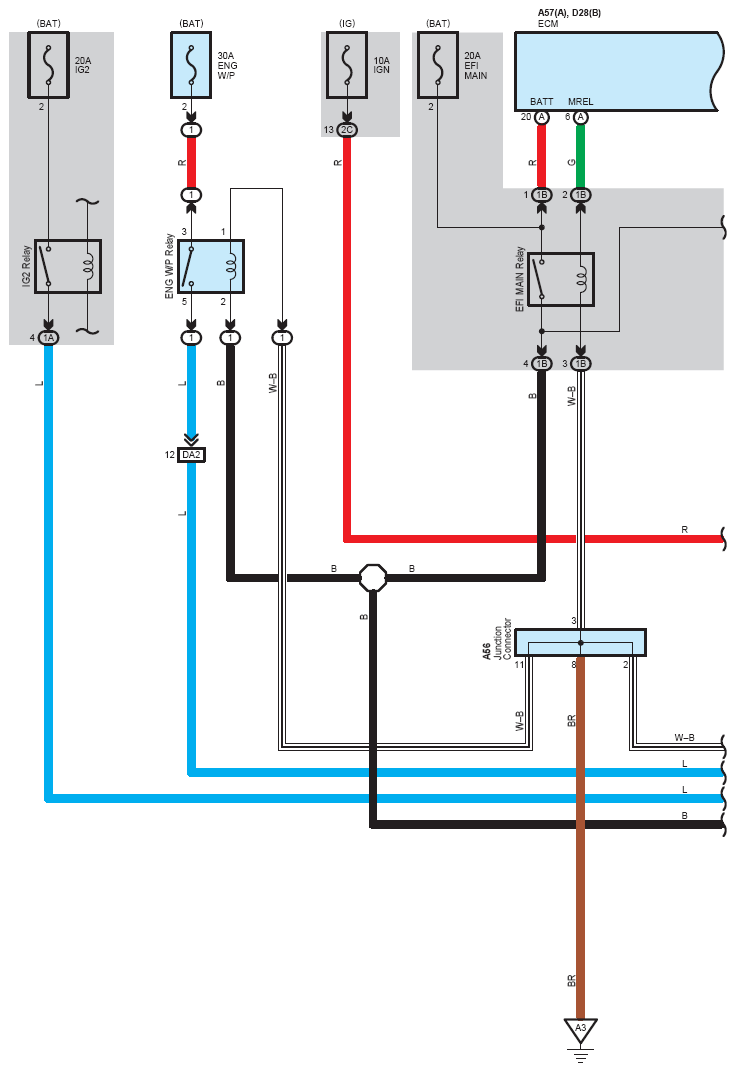

Fig 1: Cruise Control, Dynamic Radar Cruise Control, Engine Control (1 Of 30)

G12214345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

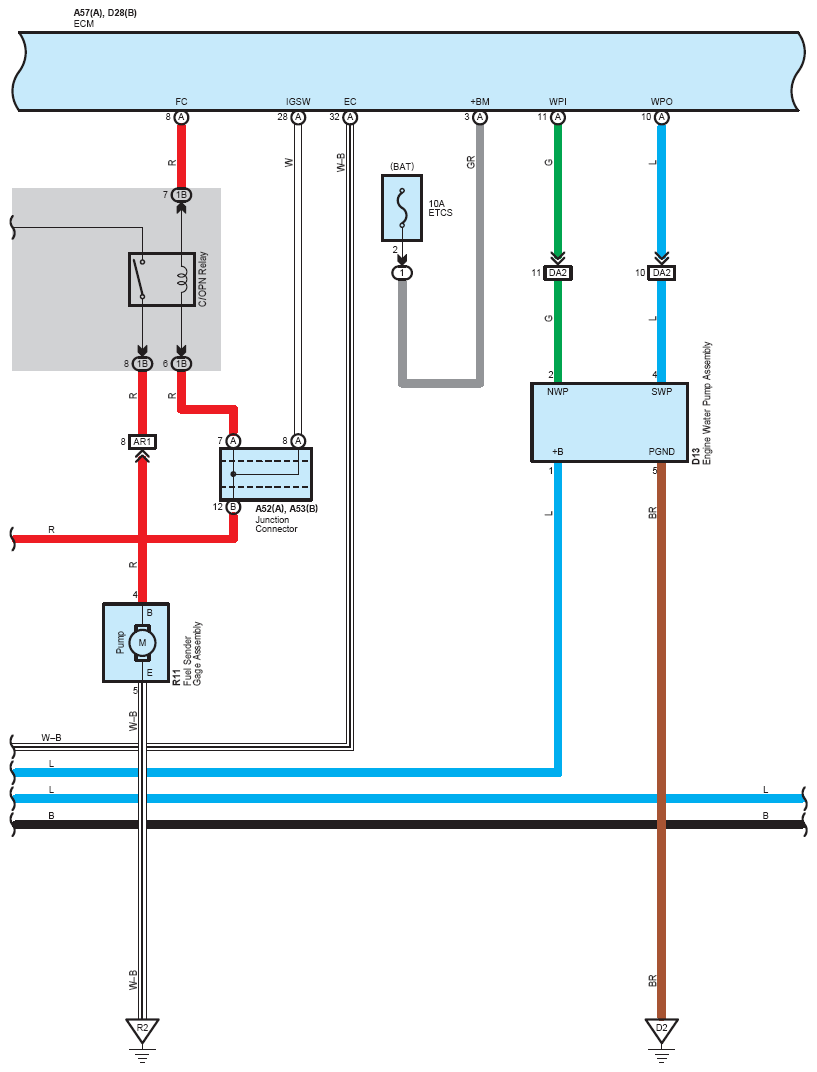

Fig 2: Cruise Control, Dynamic Radar Cruise Control, Engine Control (2 Of 30)

G12214346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

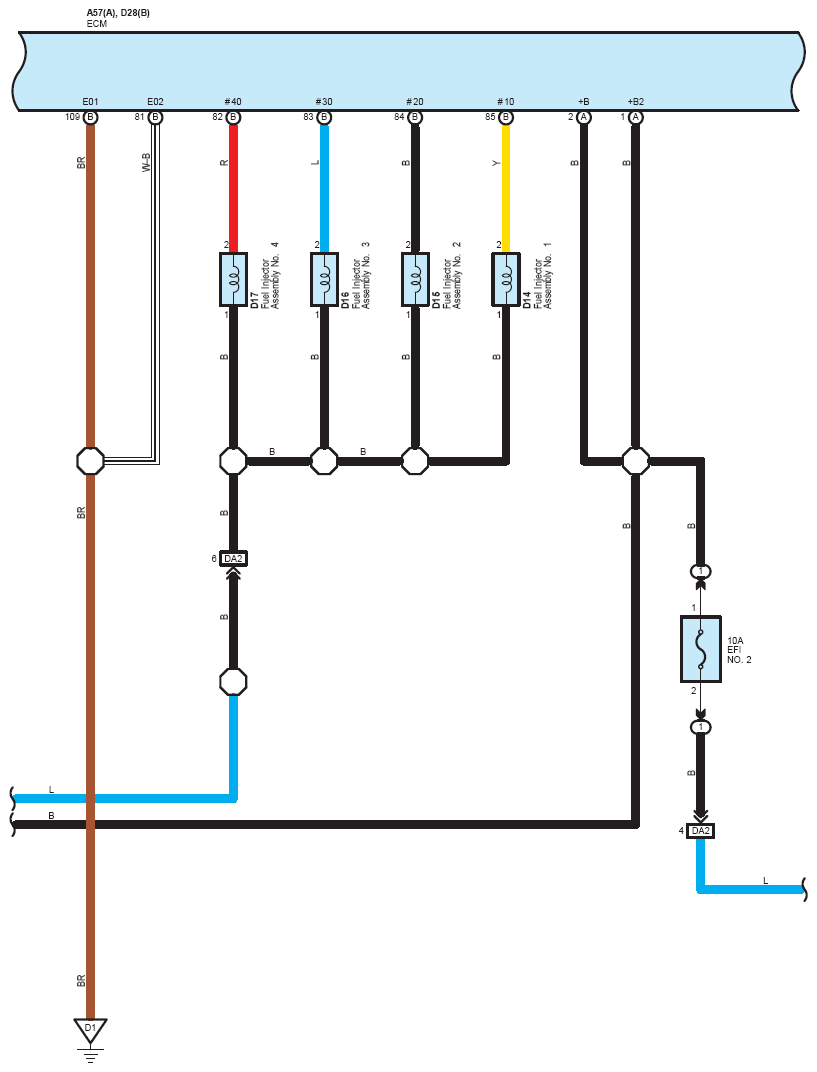

Fig 3: Cruise Control, Dynamic Radar Cruise Control, Engine Control (3 Of 30)

G12214347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

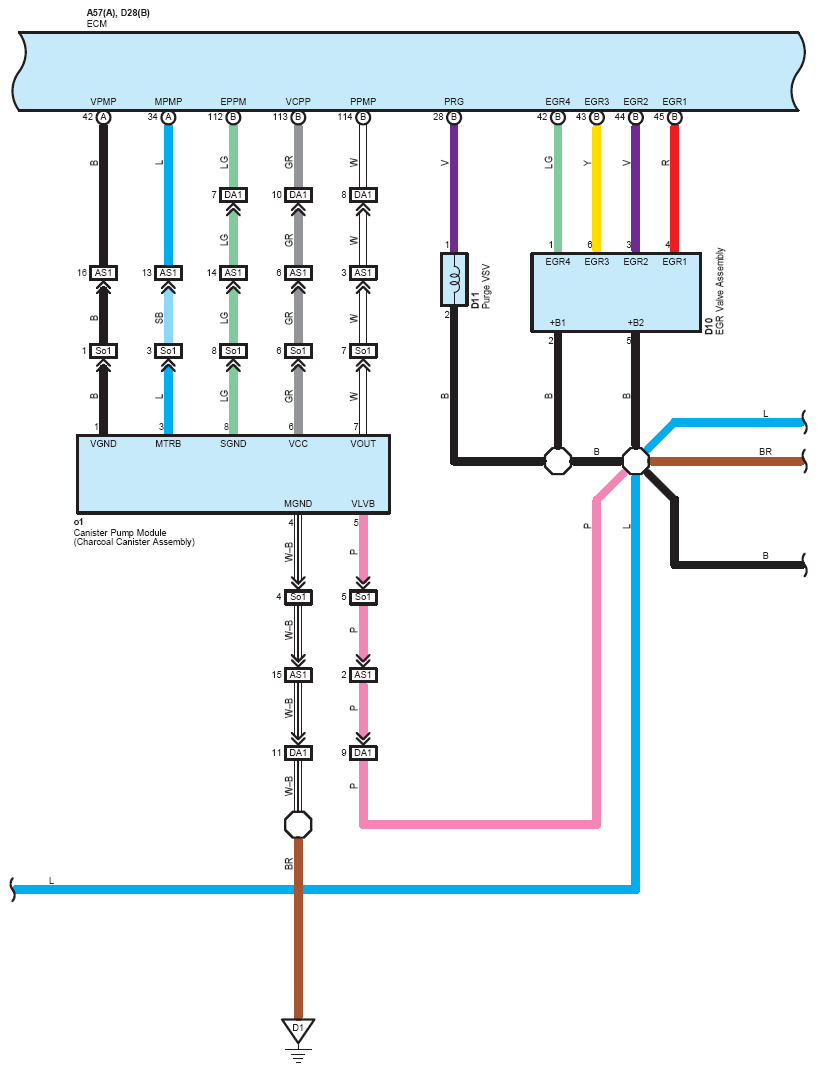

Fig 4: Cruise Control, Dynamic Radar Cruise Control, Engine Control (4 Of 30)

G12214348

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

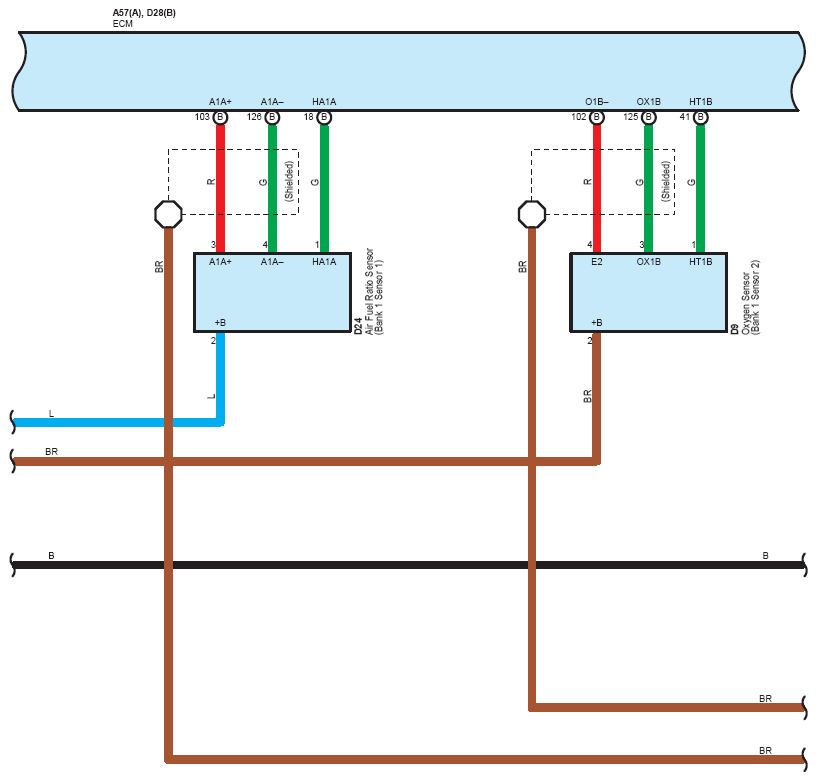

Fig 5: Cruise Control, Dynamic Radar Cruise Control, Engine Control (5 Of 30)

G12214349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

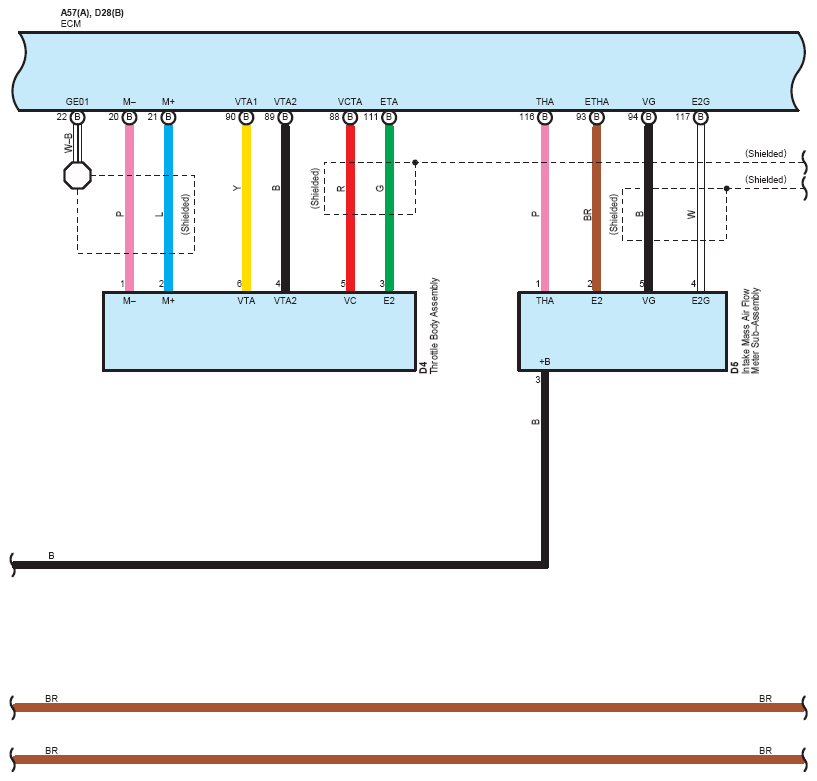

Fig 6: Cruise Control, Dynamic Radar Cruise Control, Engine Control (6 Of 30)

G12214350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

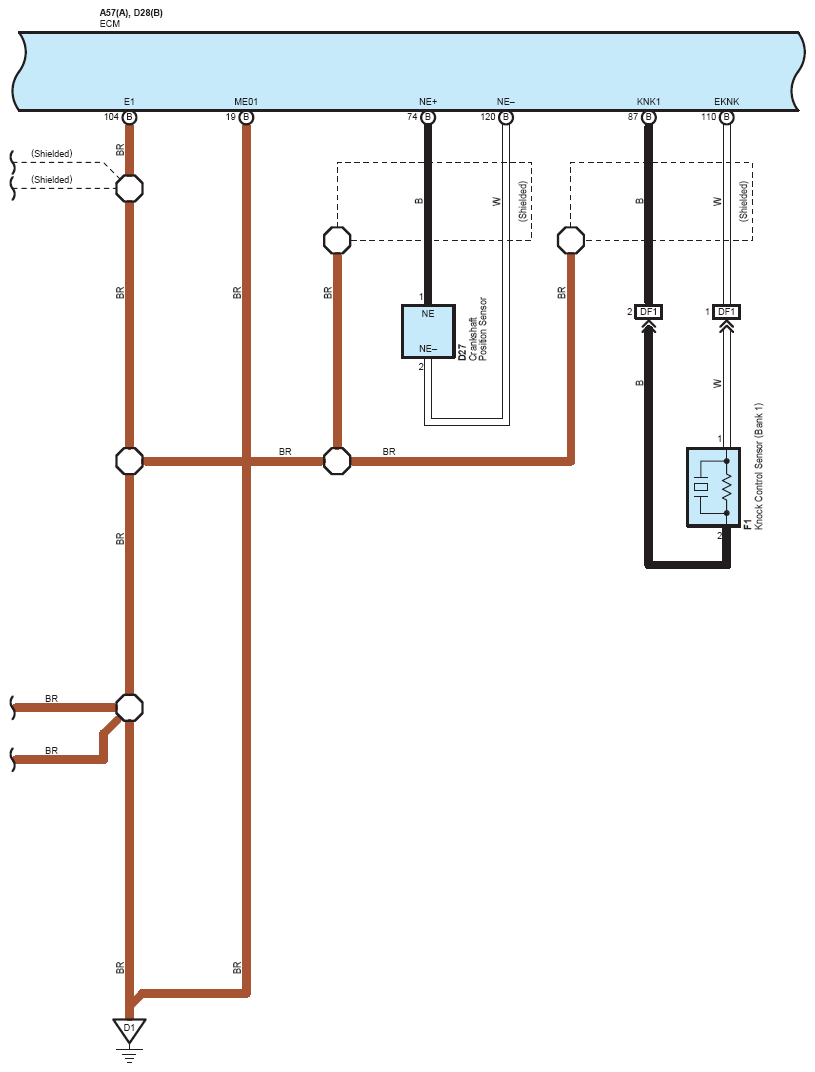

Fig 7: Cruise Control, Dynamic Radar Cruise Control, Engine Control (7 Of 30)

G12214351

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

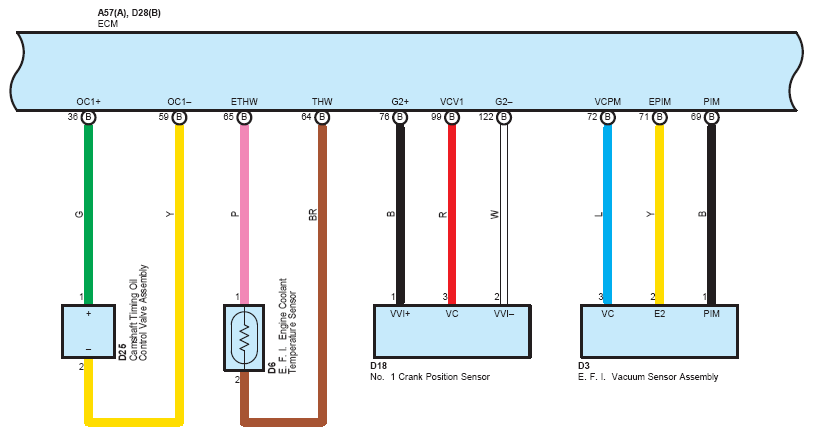

Fig 8: Cruise Control, Dynamic Radar Cruise Control, Engine Control (8 Of 30)

G12214352

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

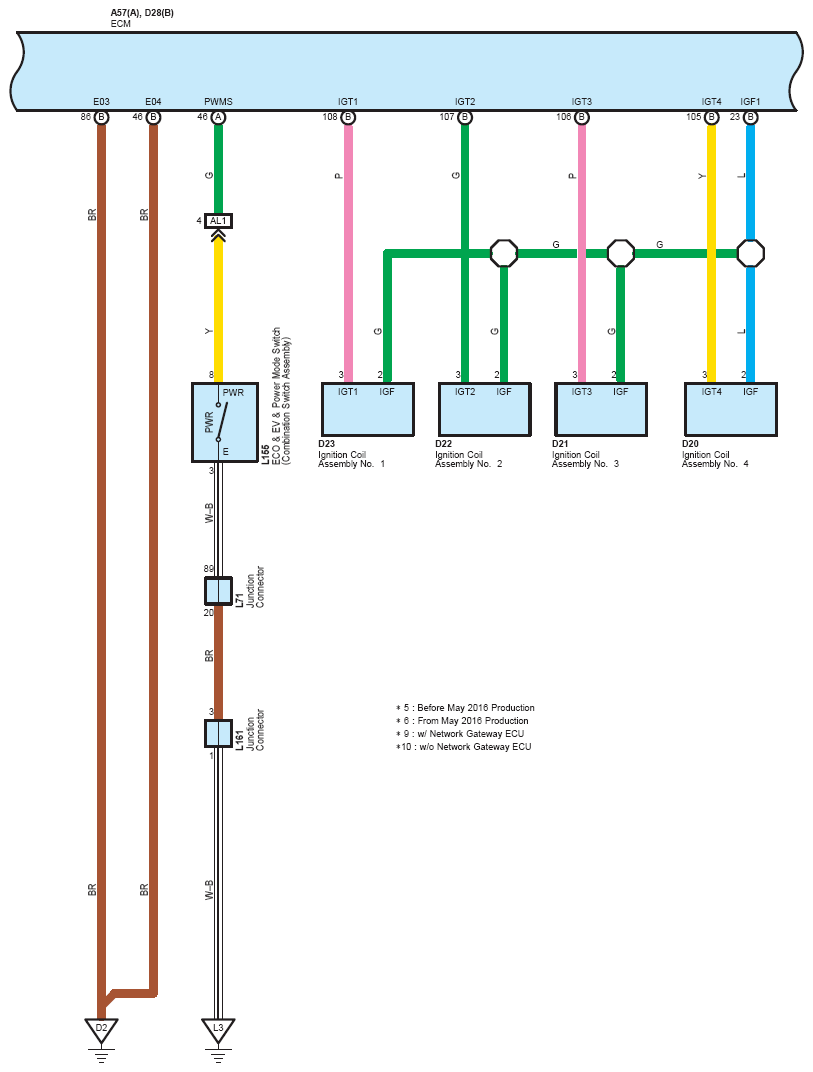

Fig 9: Cruise Control, Dynamic Radar Cruise Control, Engine Control (9 Of 30)

G12214353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

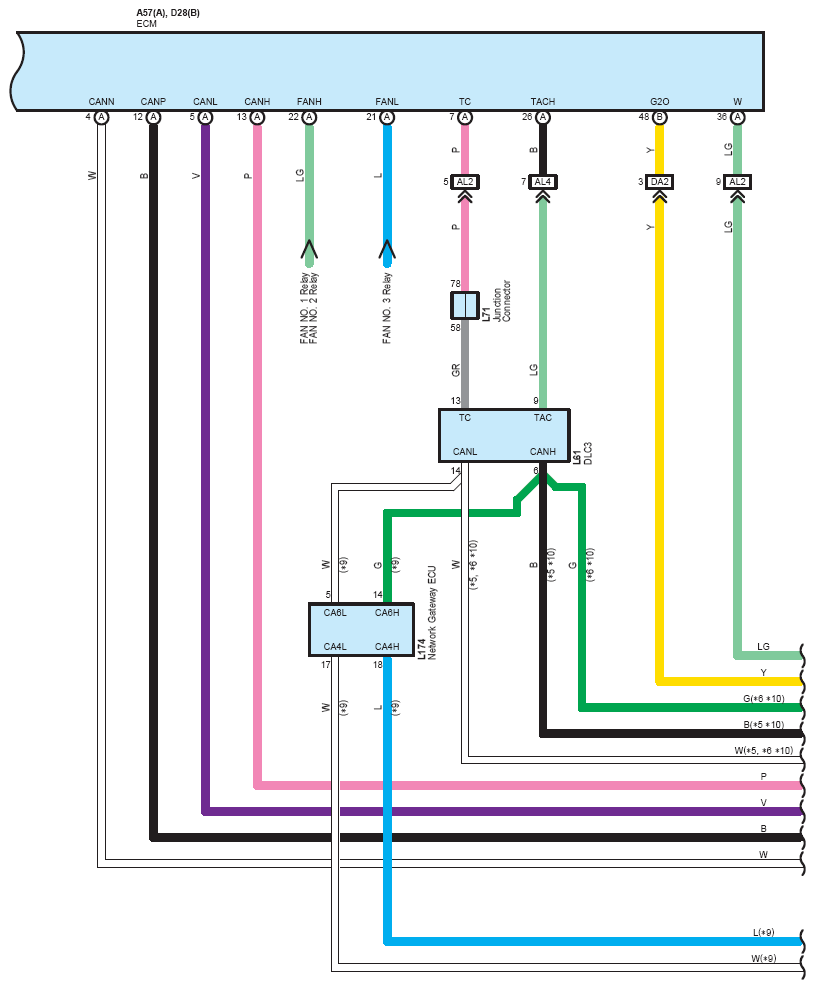

Fig 10: Cruise Control, Dynamic Radar Cruise Control, Engine Control (10 Of 30)

G12214354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

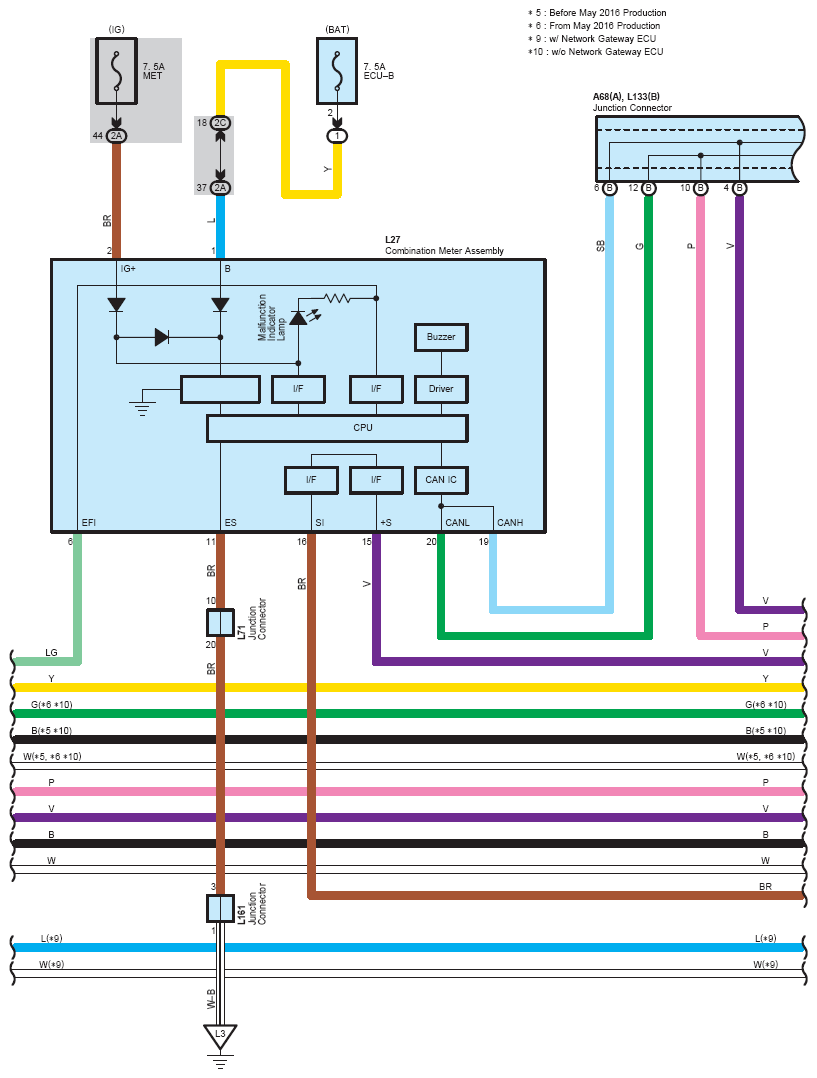

Fig 11: Cruise Control, Dynamic Radar Cruise Control, Engine Control (11 Of 30)

G12214355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Cruise Control, Dynamic Radar Cruise Control, Engine Control (12 Of 30)

G12214356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

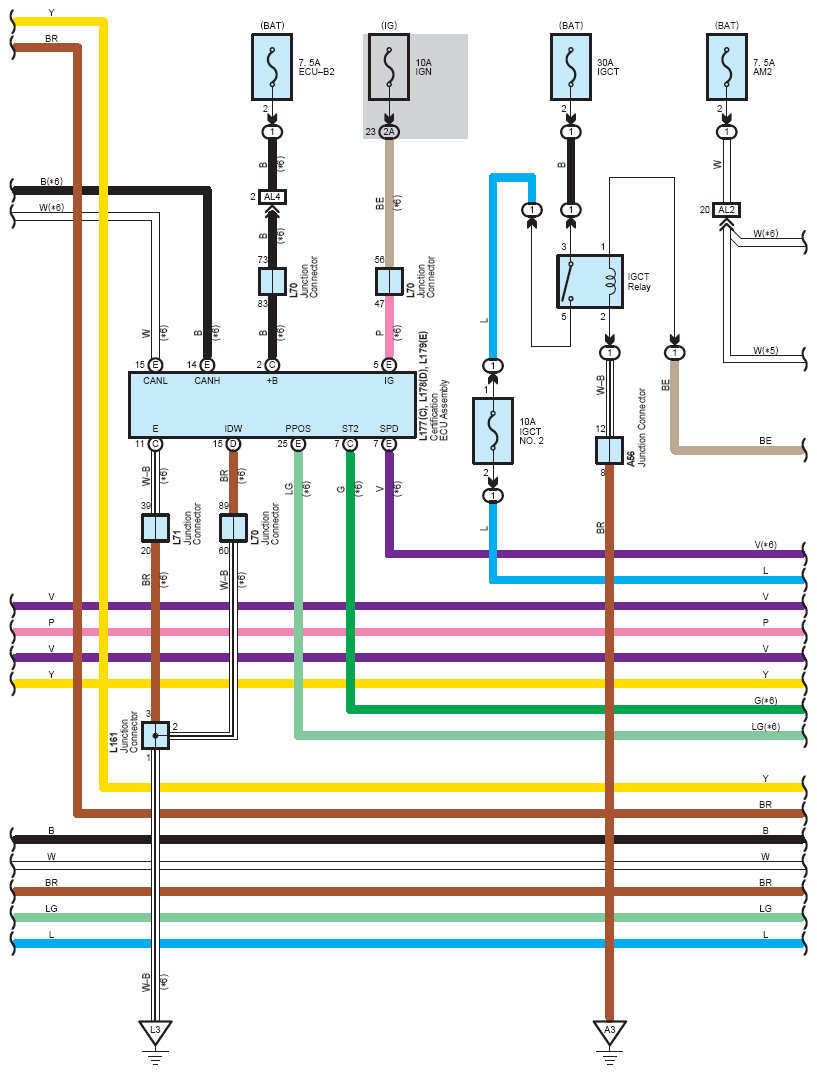

Fig 13: Cruise Control, Dynamic Radar Cruise Control, Engine Control (13 Of 30)

G12214357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

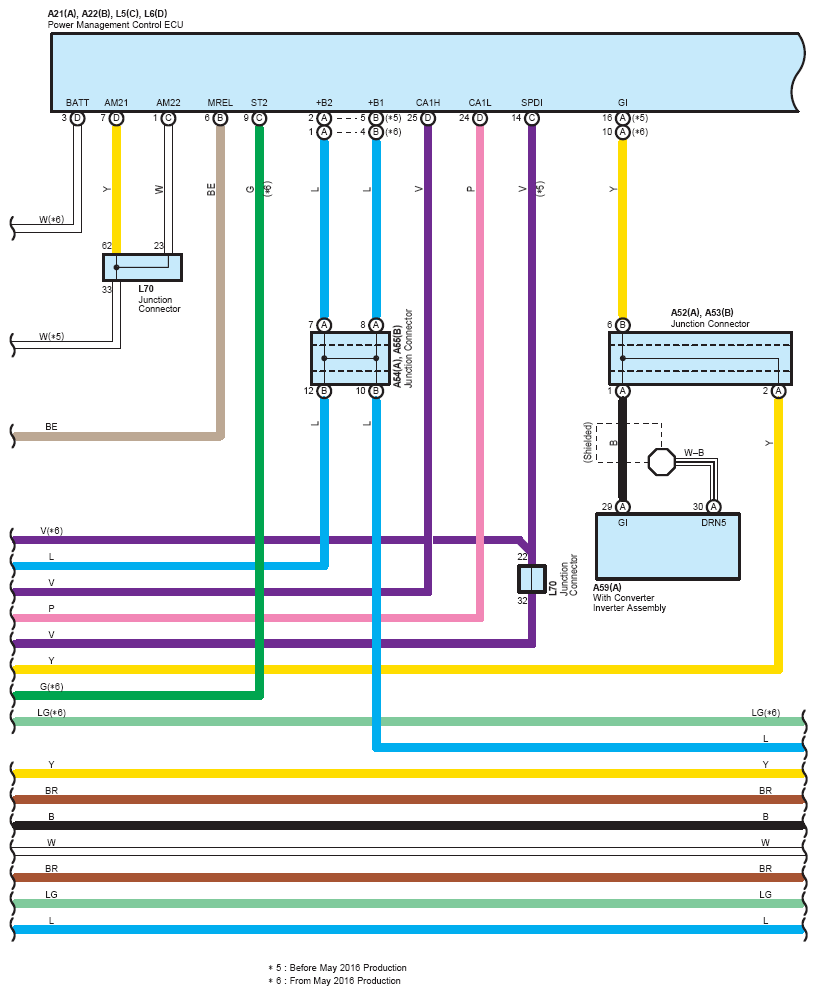

Fig 14: Cruise Control, Dynamic Radar Cruise Control, Engine Control (14 Of 30)

G12214358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Cruise Control, Dynamic Radar Cruise Control, Engine Control (15 Of 30)

G12214359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

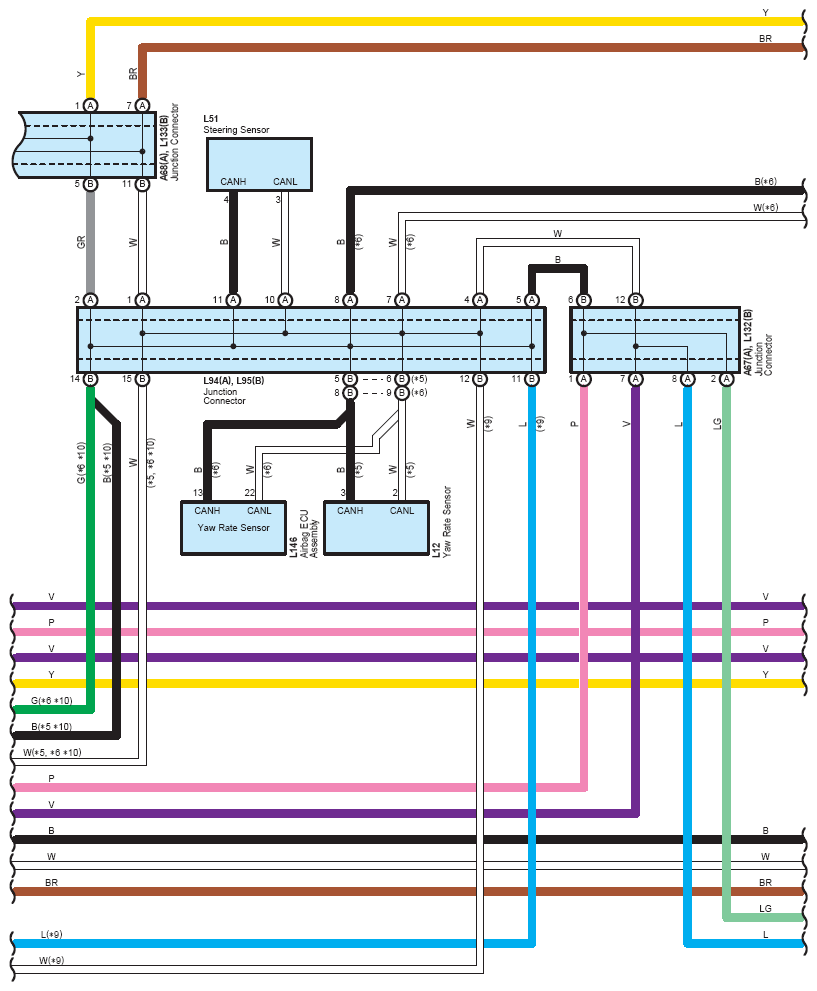

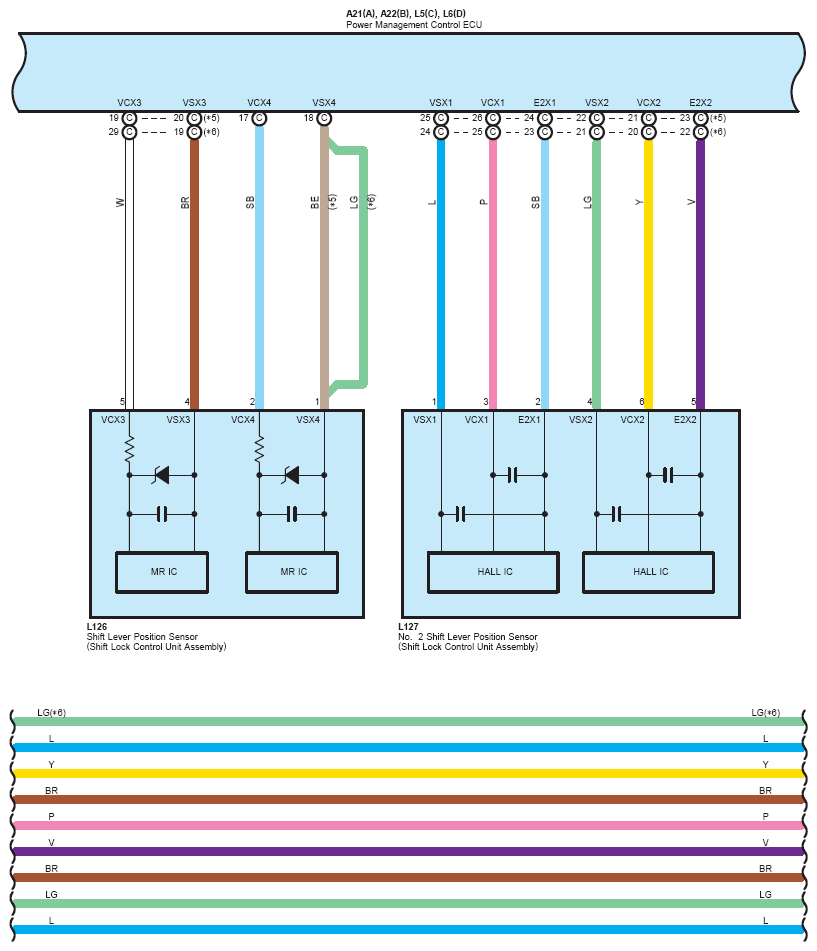

Fig 16: Cruise Control, Dynamic Radar Cruise Control, Engine Control (16 Of 30)

G12214360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

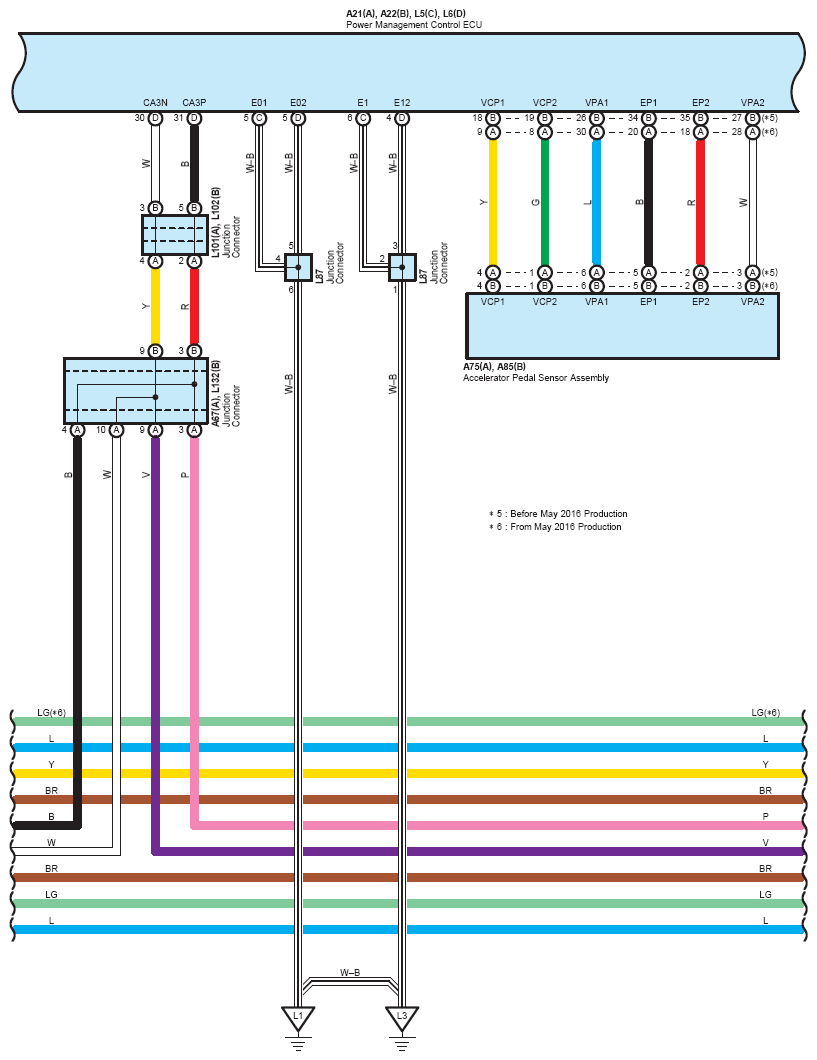

Fig 17: Cruise Control, Dynamic Radar Cruise Control, Engine Control (17 Of 30)

G12214361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Cruise Control, Dynamic Radar Cruise Control, Engine Control (18 Of 30)

G12214362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

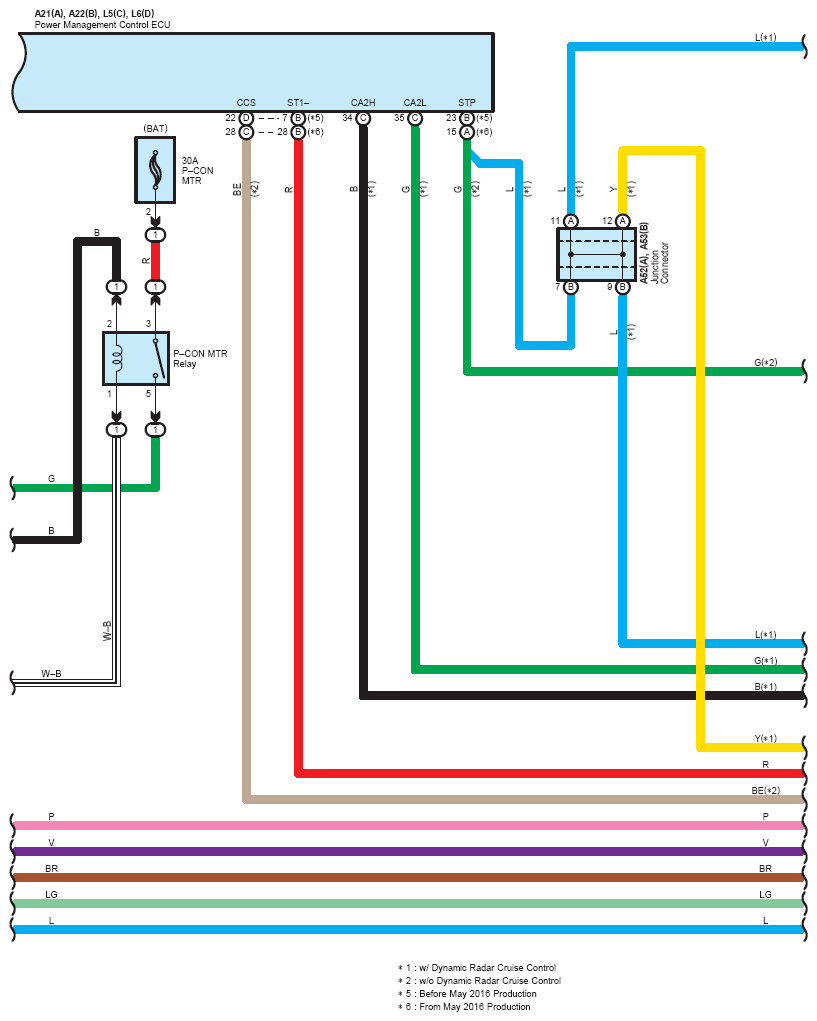

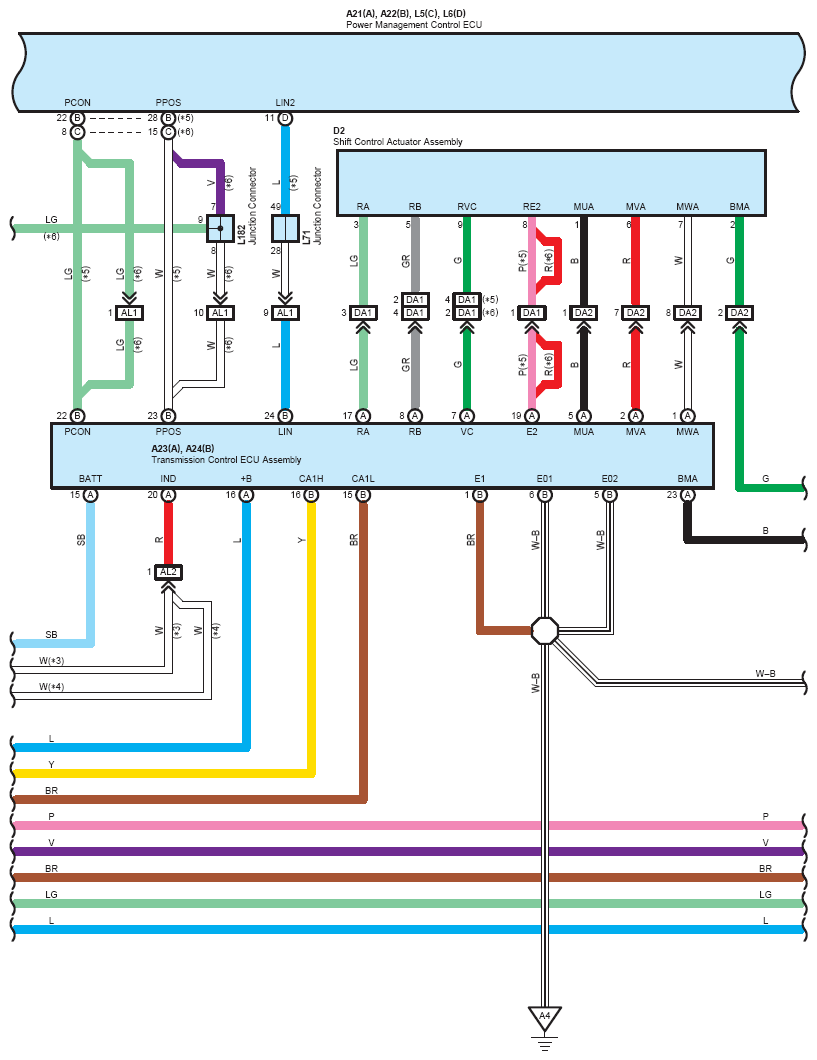

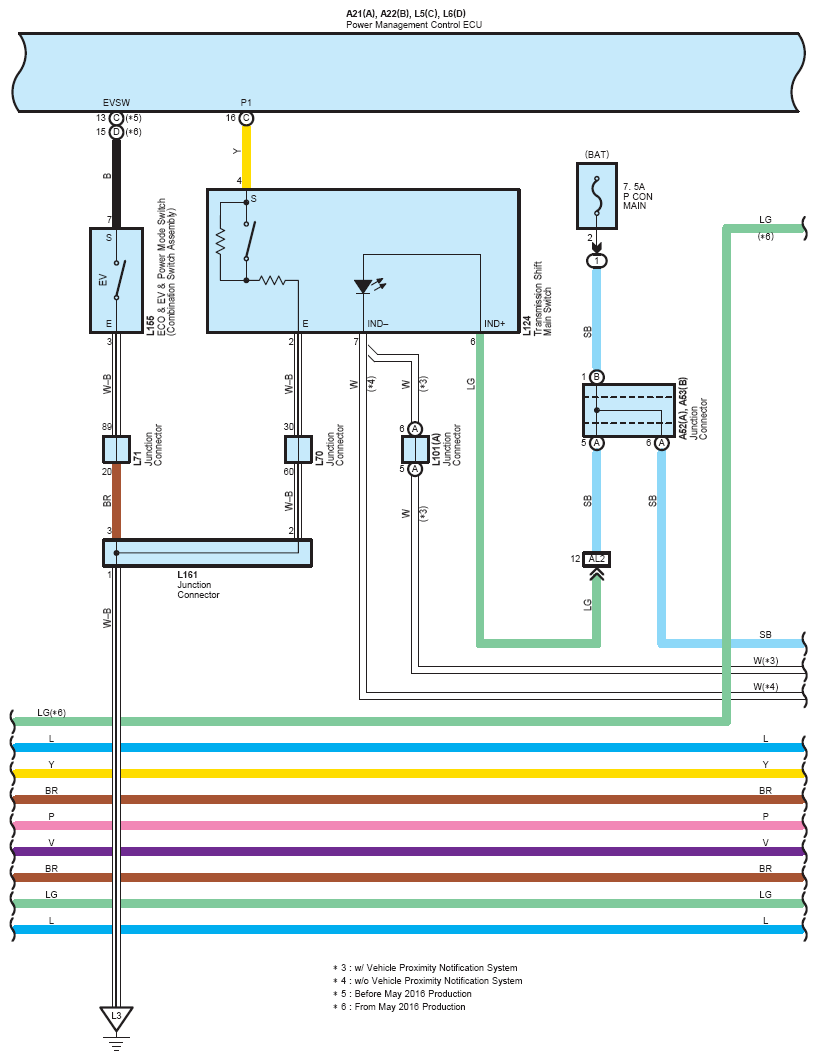

Fig 19: Cruise Control, Dynamic Radar Cruise Control, Engine Control (19 Of 30)

G12214363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

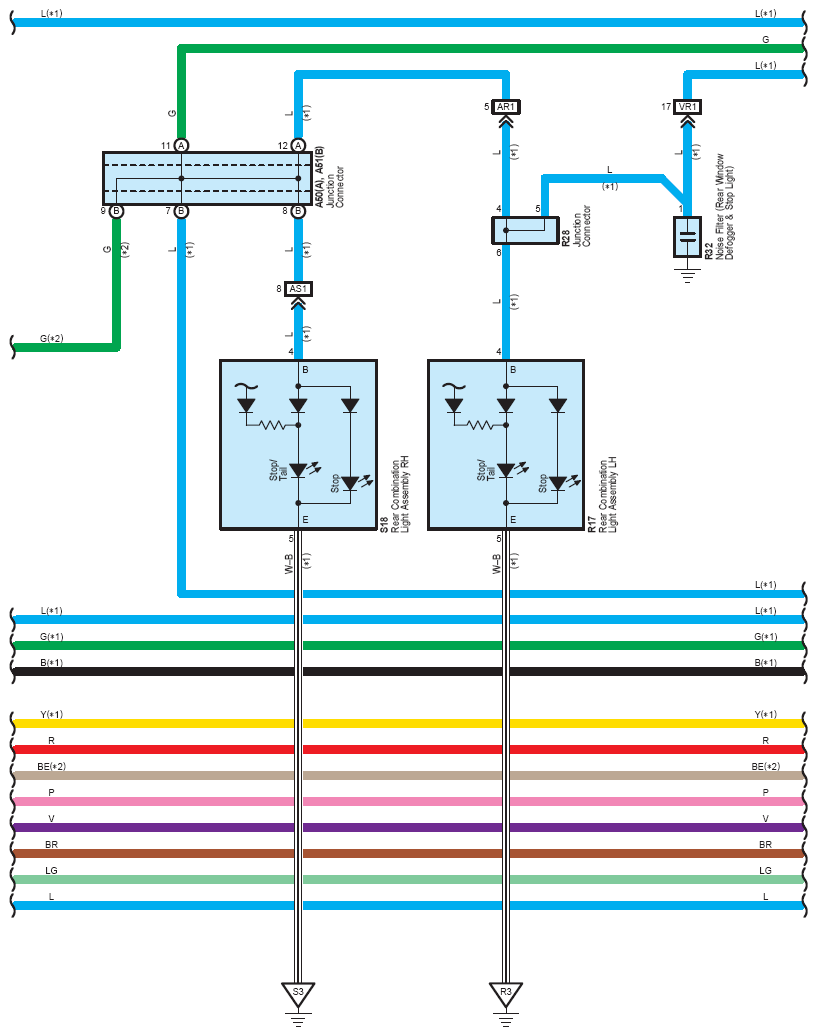

Fig 20: Cruise Control, Dynamic Radar Cruise Control, Engine Control (20 Of 30)

G12214364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

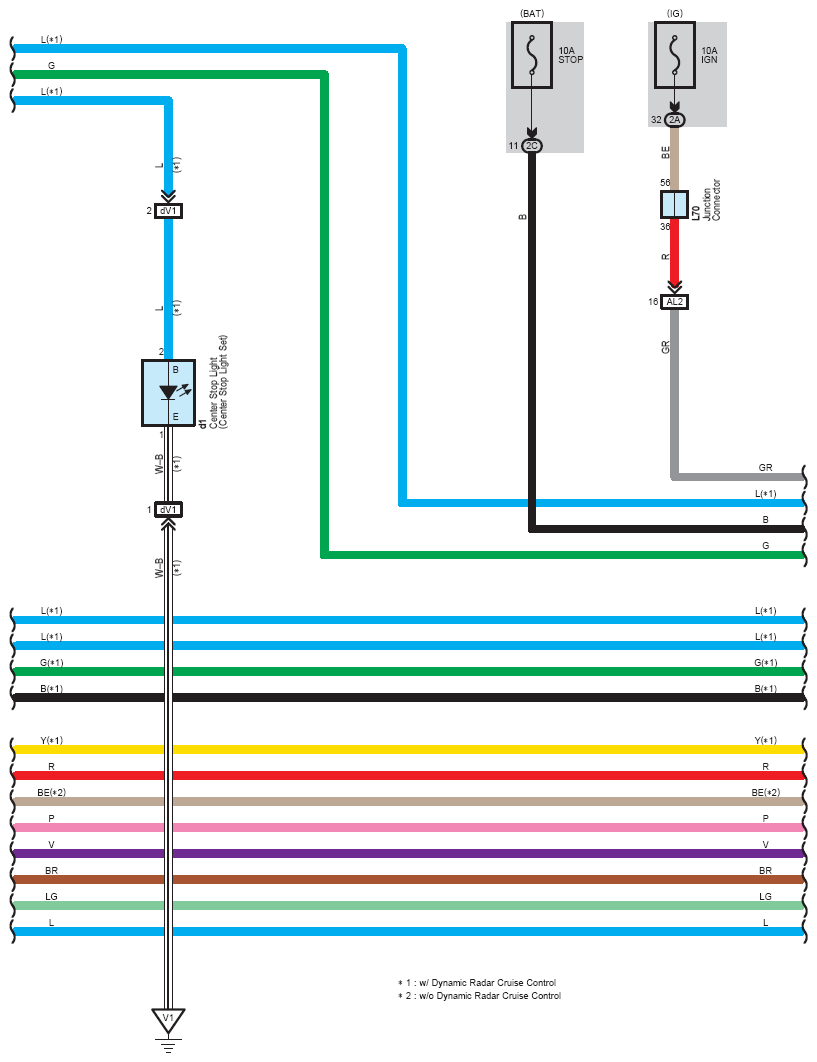

Fig 21: Cruise Control, Dynamic Radar Cruise Control, Engine Control (21 Of 30)

G12214365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

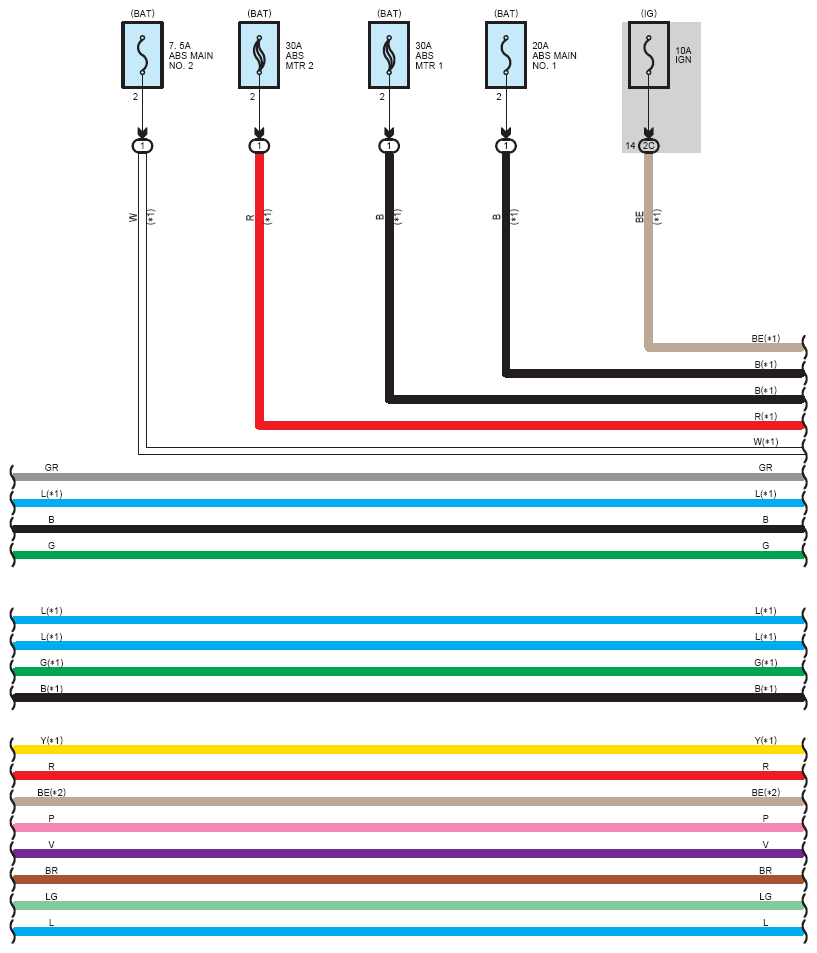

Fig 22: Cruise Control, Dynamic Radar Cruise Control, Engine Control (22 Of 30)

G12214366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Cruise Control, Dynamic Radar Cruise Control, Engine Control (23 Of 30)

G12214367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Cruise Control, Dynamic Radar Cruise Control, Engine Control (24 Of 30)

G12214368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

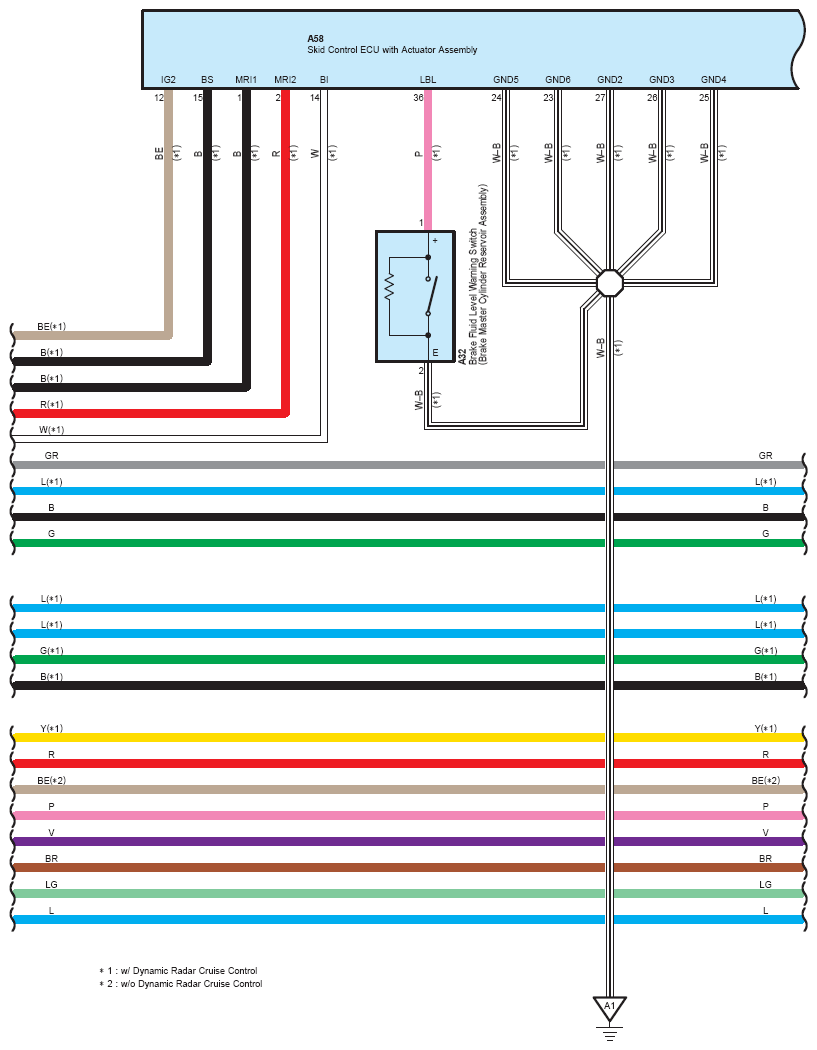

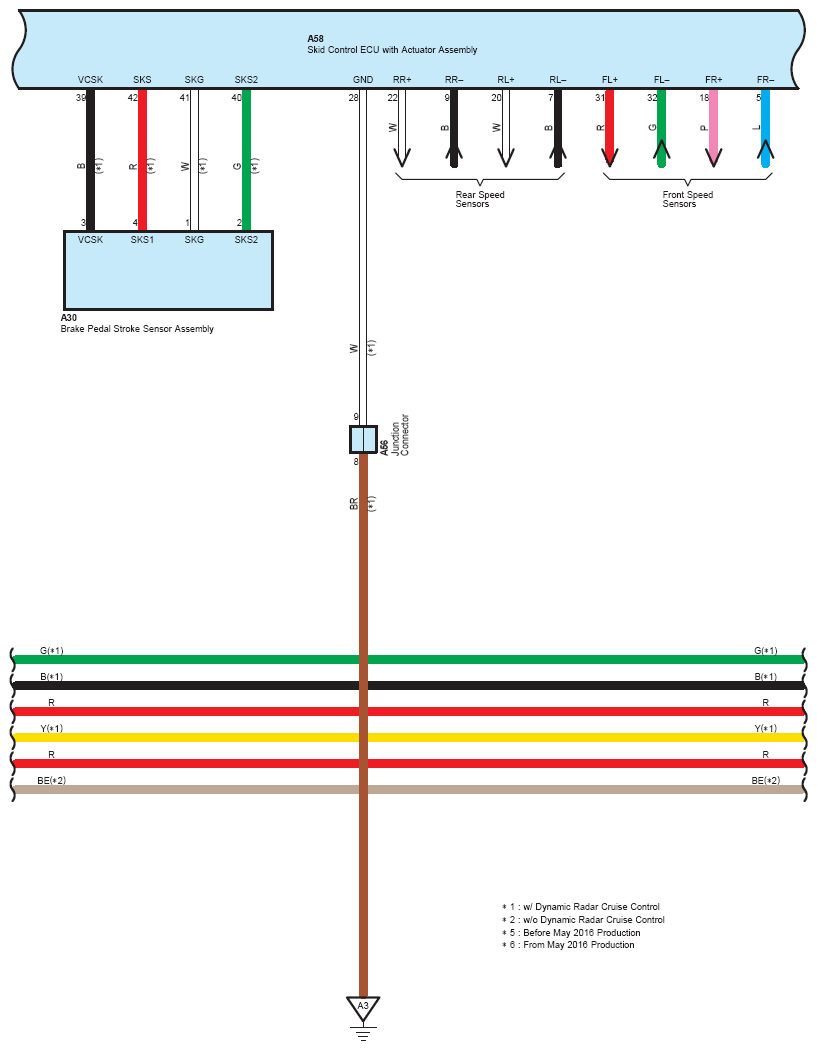

Fig 25: Cruise Control, Dynamic Radar Cruise Control, Engine Control (25 Of 30)

G12214369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

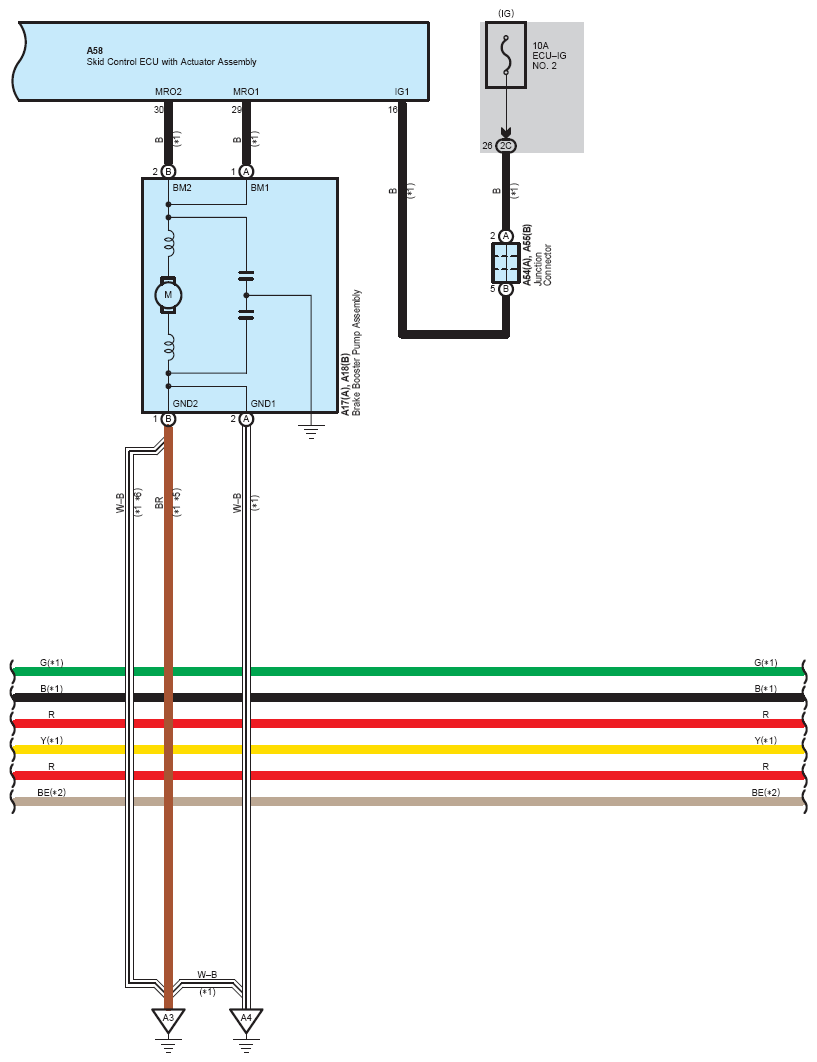

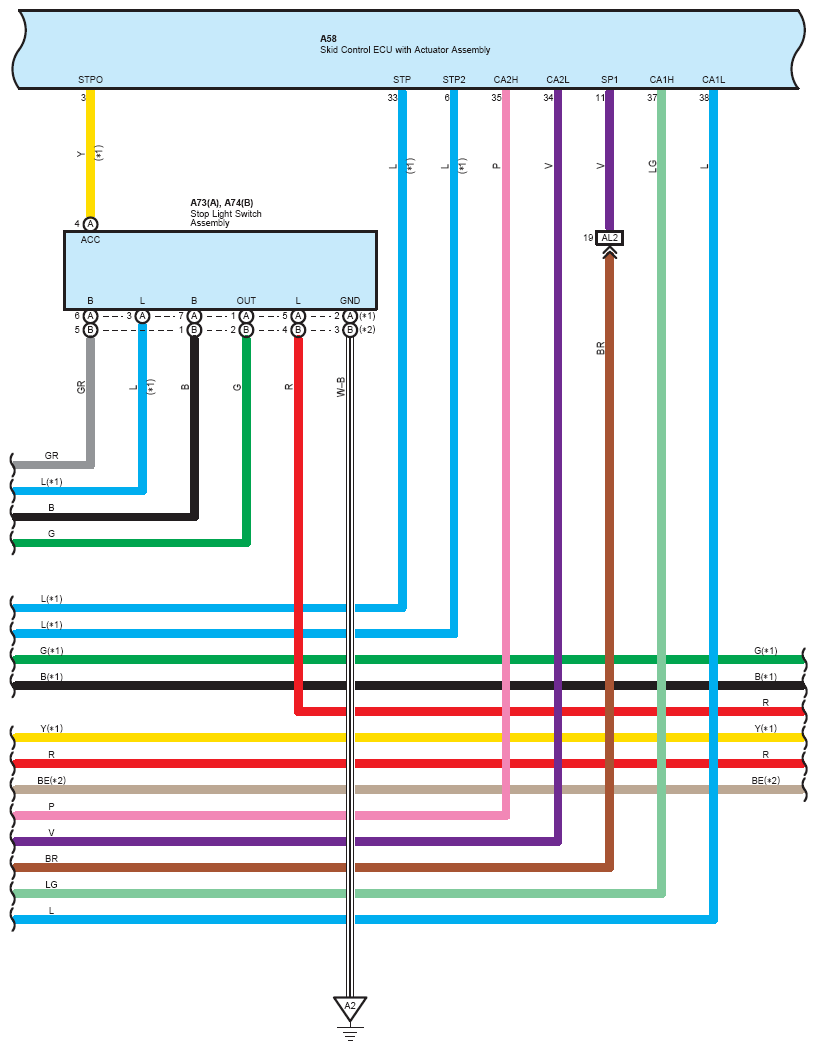

Fig 26: Cruise Control, Dynamic Radar Cruise Control, Engine Control (26 Of 30)

G12214370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

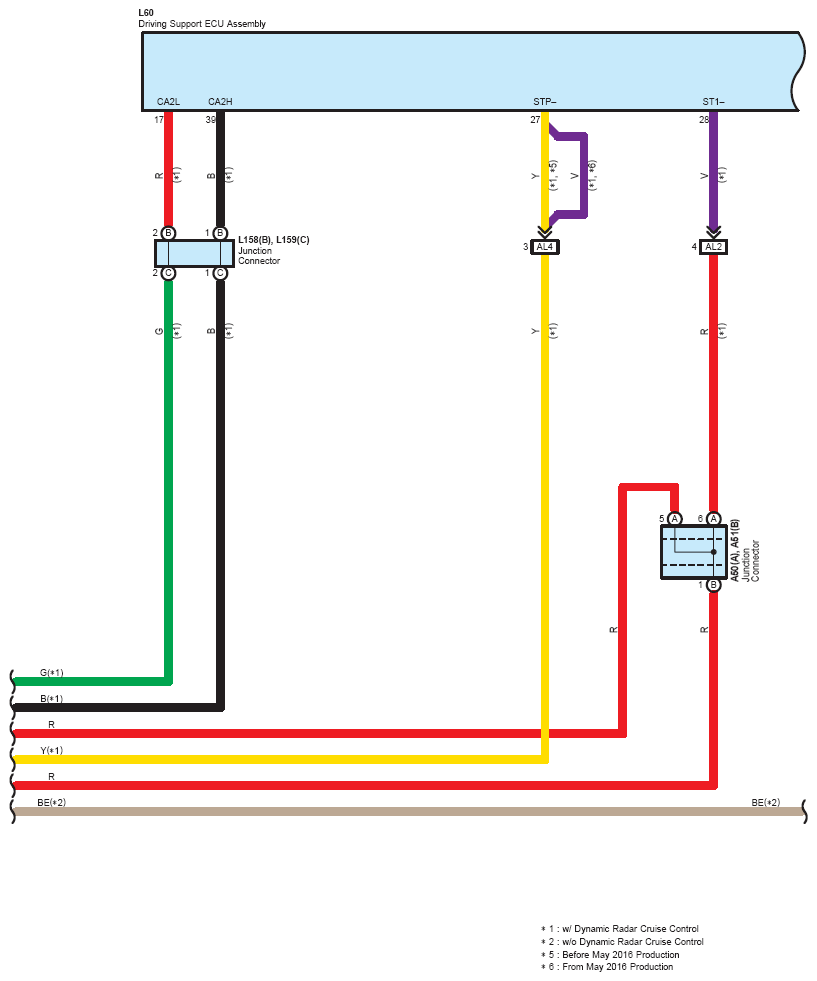

Fig 27: Cruise Control, Dynamic Radar Cruise Control, Engine Control (27 Of 30)

G12214371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

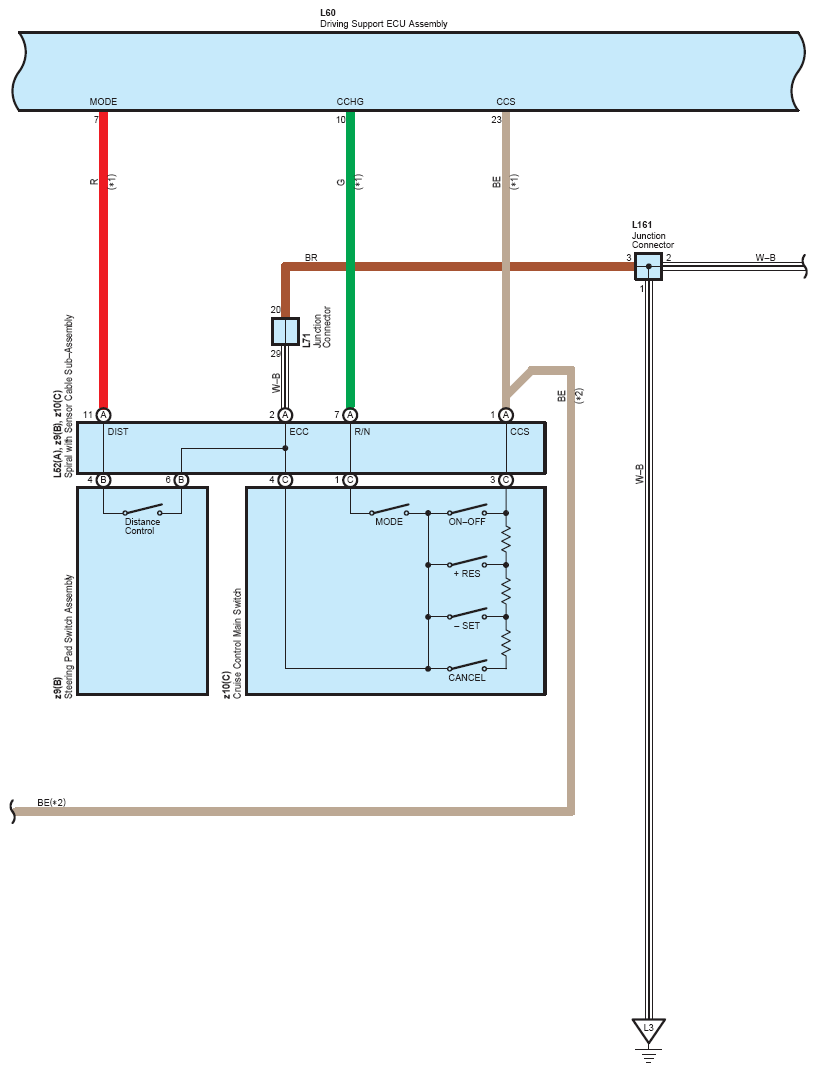

Fig 28: Cruise Control, Dynamic Radar Cruise Control, Engine Control (28 Of 30)

G12214372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

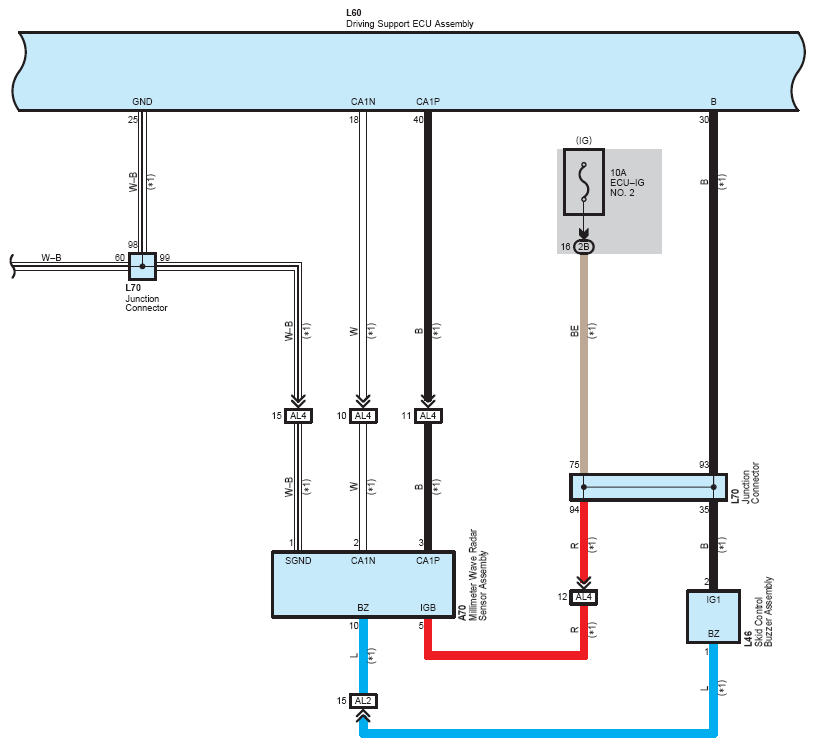

Fig 29: Cruise Control, Dynamic Radar Cruise Control, Engine Control (29 Of 30)

G12214373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

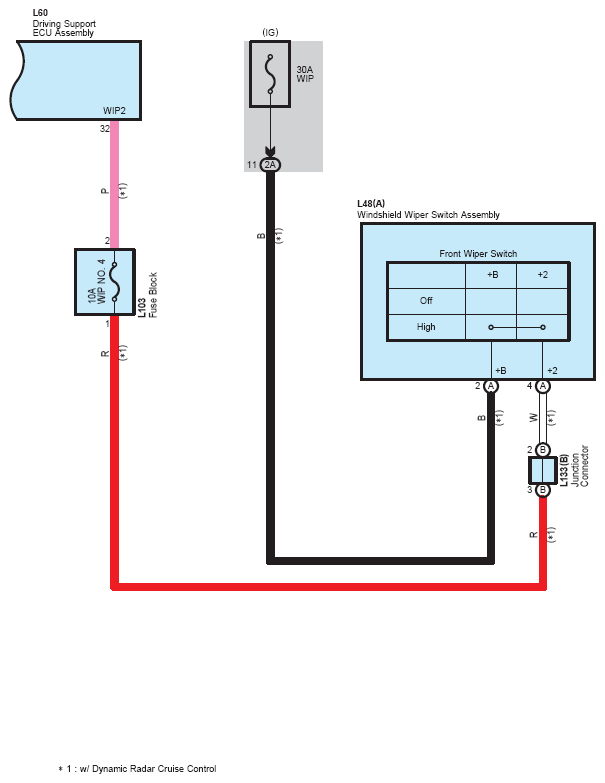

Fig 30: Cruise Control, Dynamic Radar Cruise Control, Engine Control (30 Of 30)

G12214374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
