System Diagrams

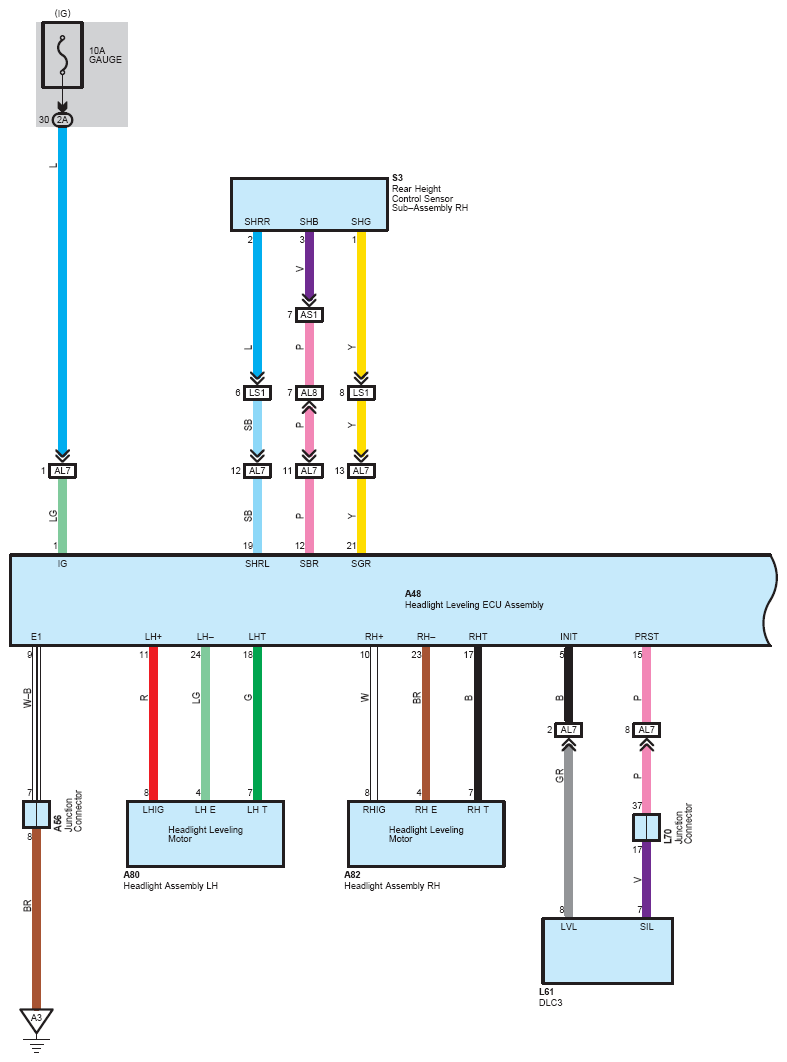

Fig 1: Headlight Beam Level Control (1 Of 5)
G12214425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

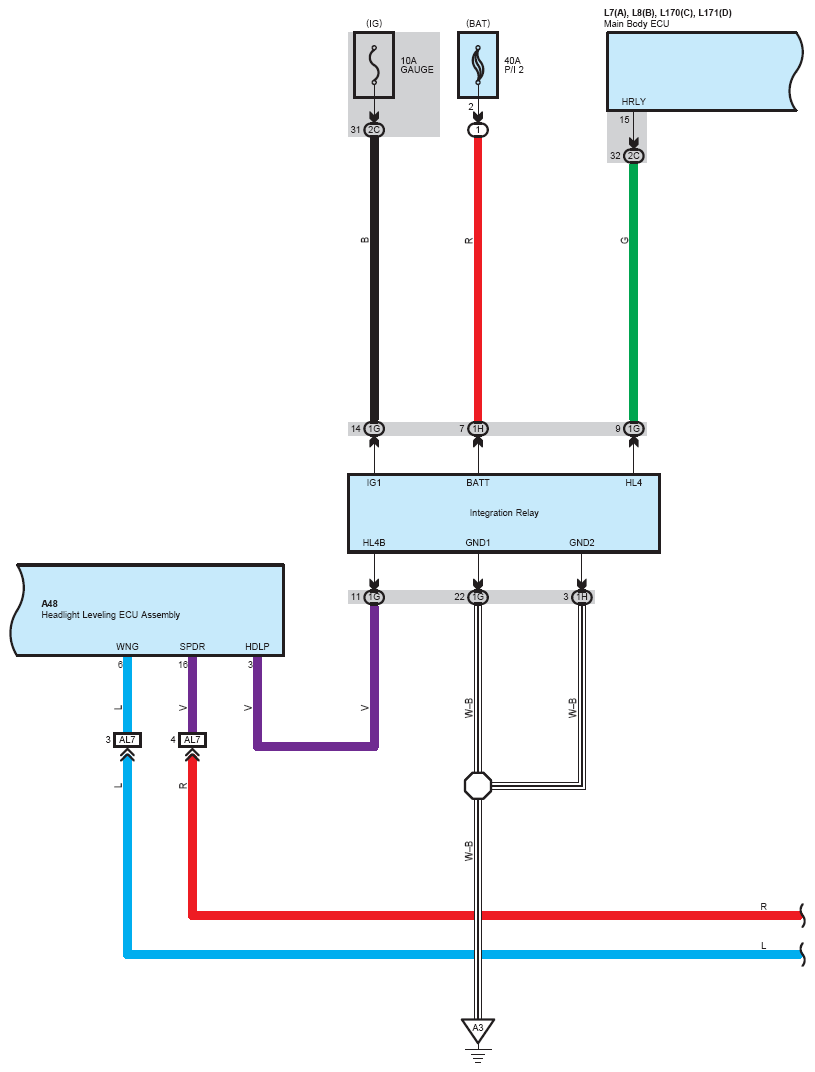

Fig 2: Headlight Beam Level Control (2 Of 5)
G12214426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

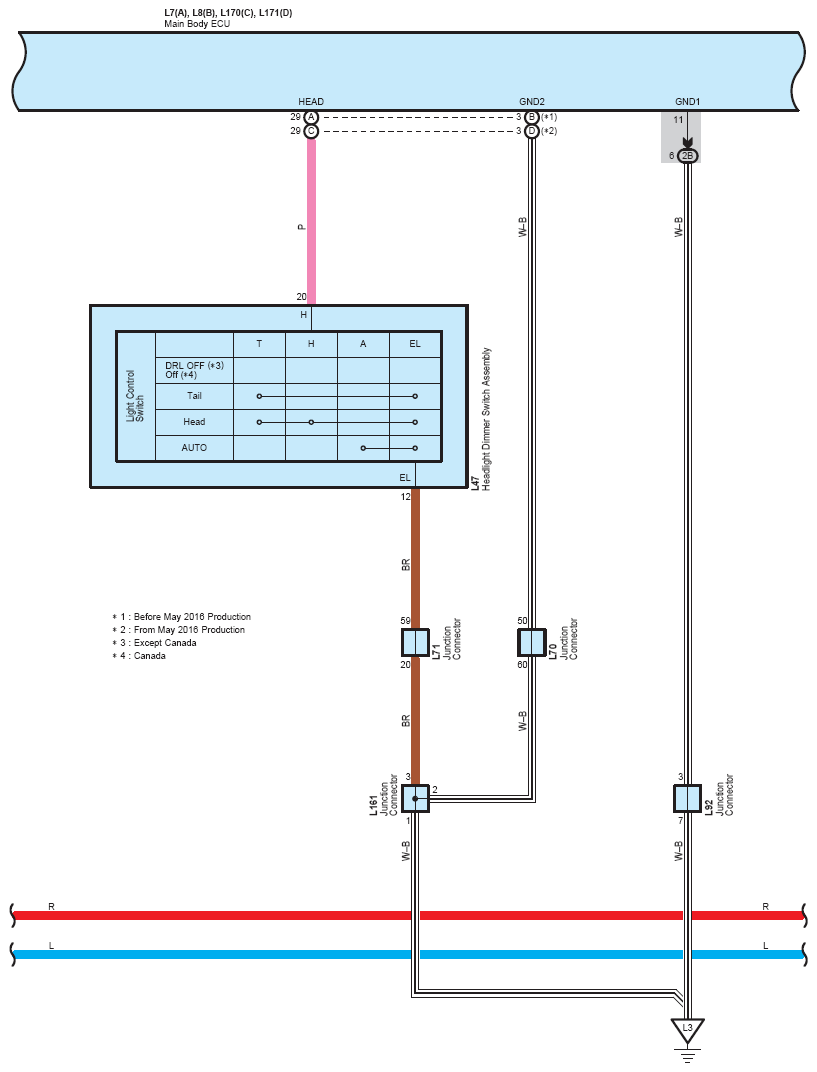

Fig 3: Headlight Beam Level Control (3 Of 5)
G12214427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

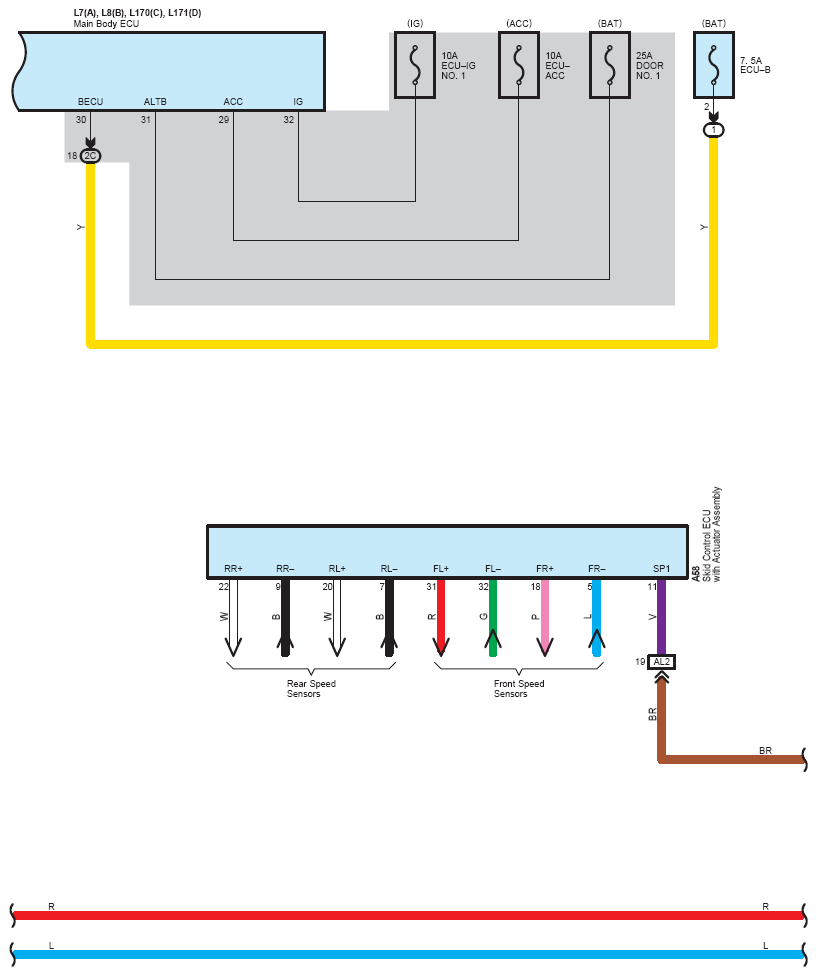

Fig 4: Headlight Beam Level Control (4 Of 5)
G12214428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

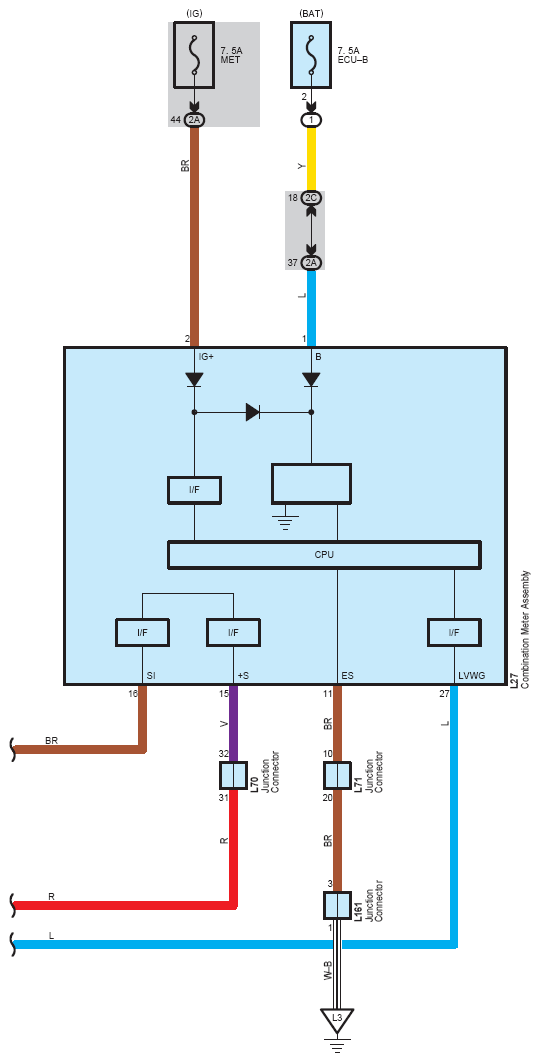

Fig 5: Headlight Beam Level Control (5 Of 5)
G12214429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
