System Diagrams — 2017 Toyota Prius V Two Service Manual ~ LEMON Manuals

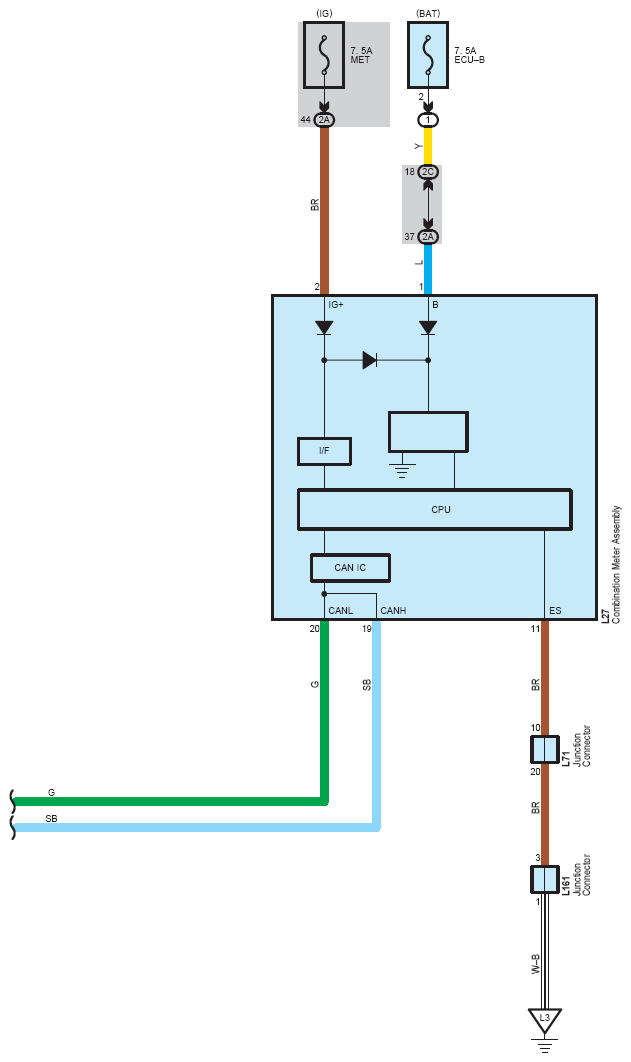

Fig 1: Pre-Collision System (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

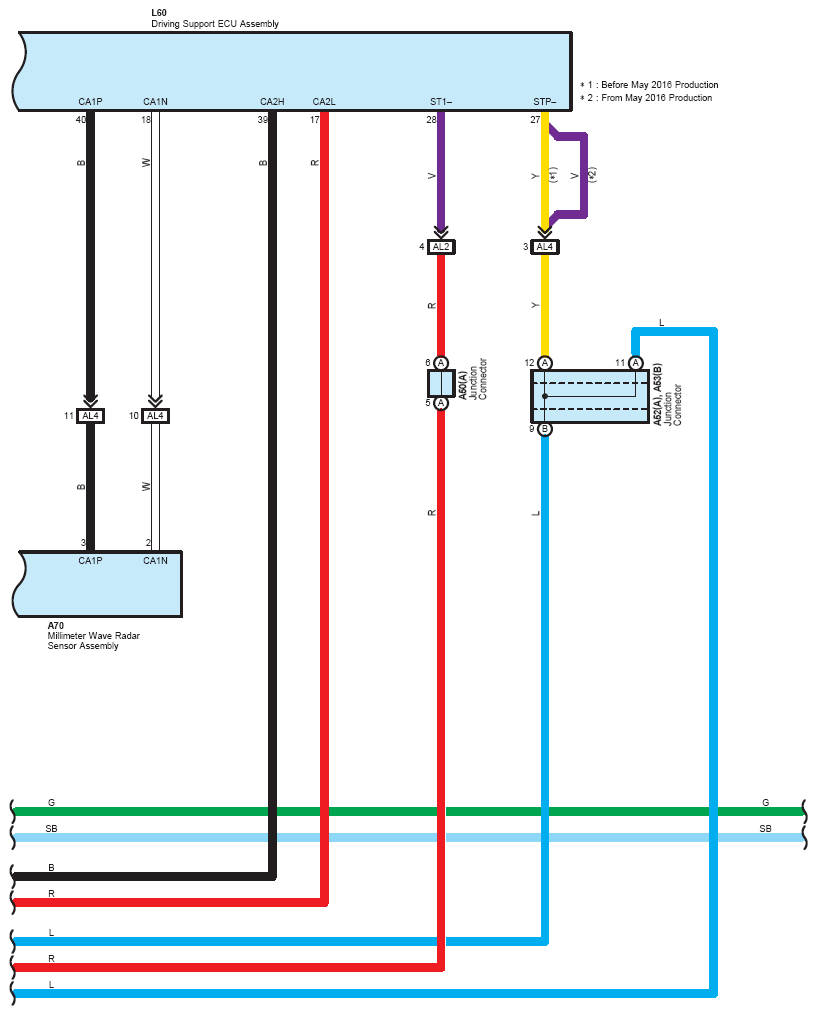

Fig 2: Pre-Collision System (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

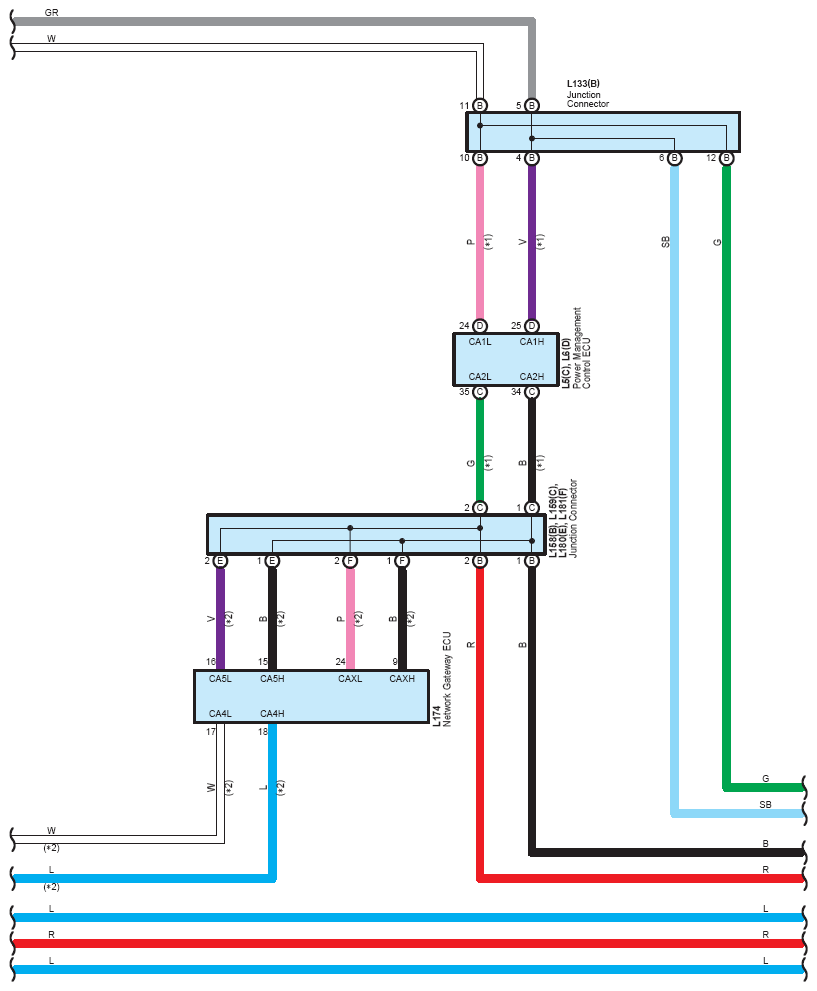

Fig 3: Pre-Collision System (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

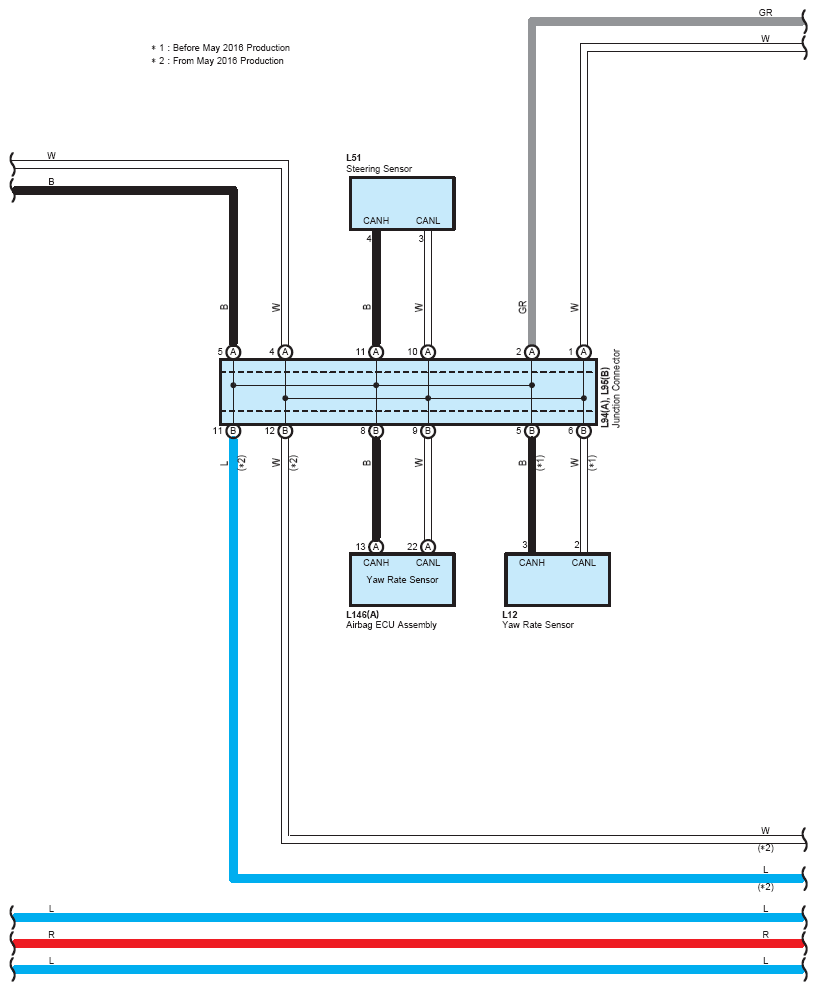

Fig 4: Pre-Collision System (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

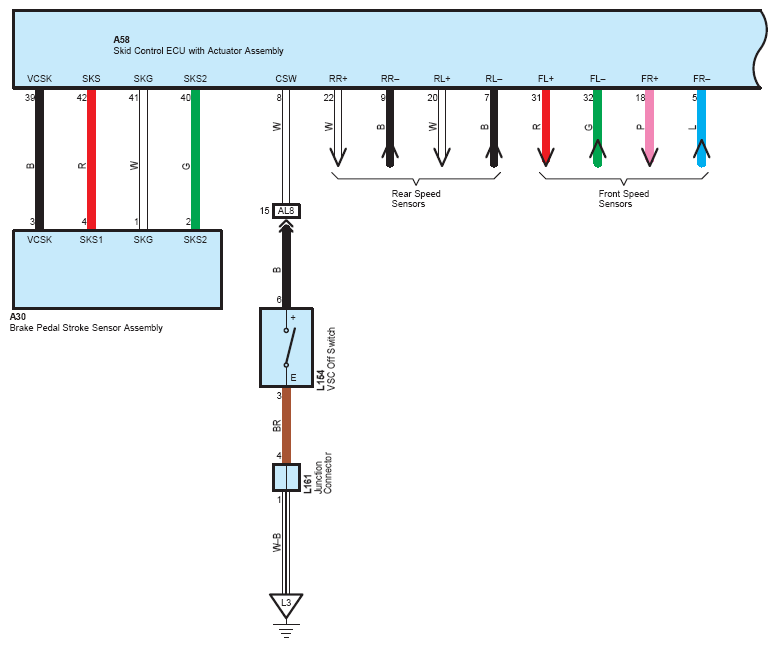

Fig 5: Pre-Collision System (5 Of 7)

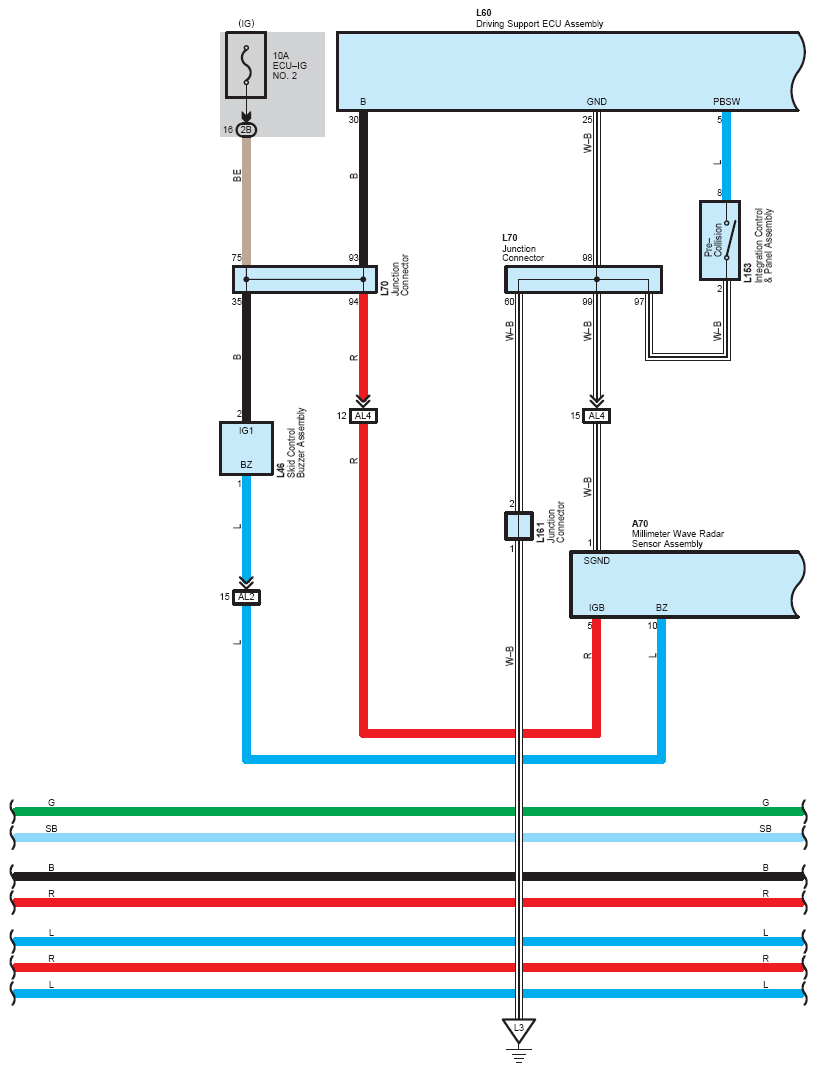

Fig 6: Pre-Collision System (6 Of 7)

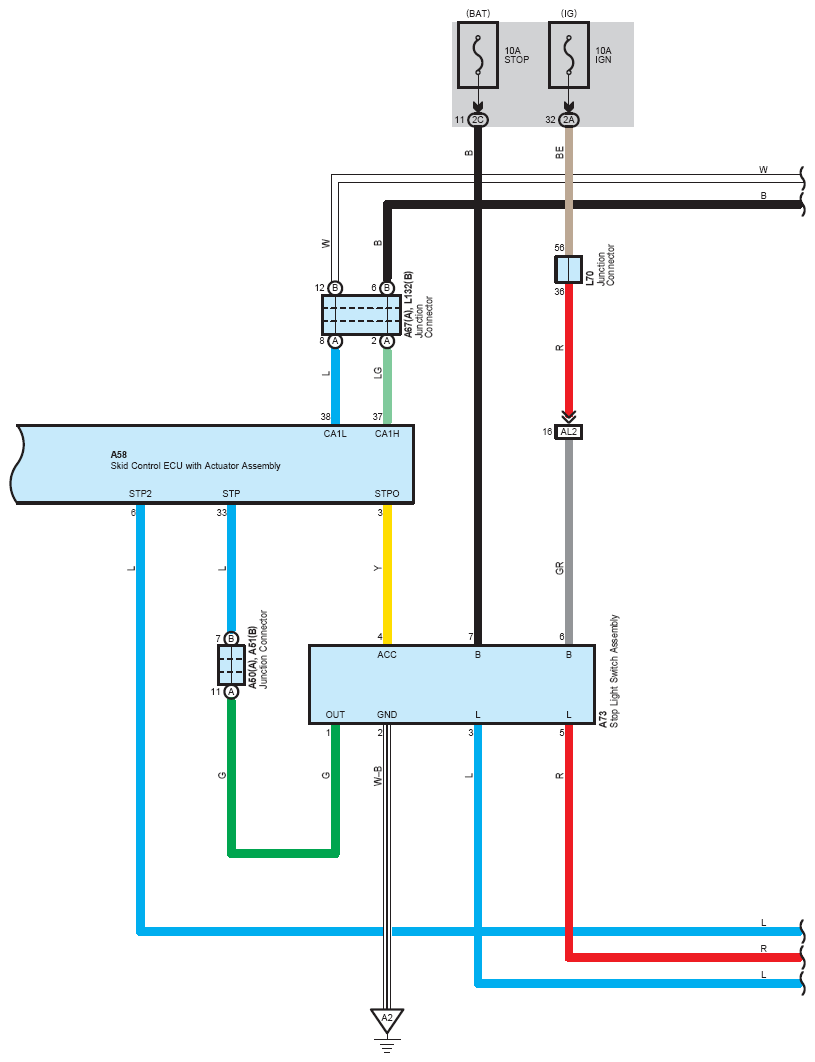

Fig 7: Pre-Collision System (7 Of 7)
