Model Line-Up

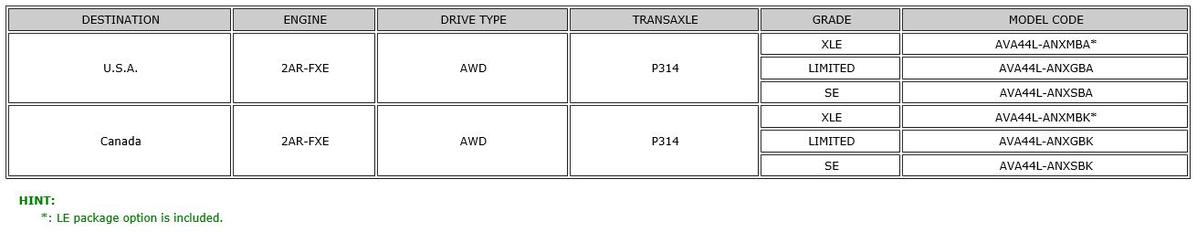

Fig 1: Model Line-Up (2017-2018)
G00554531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

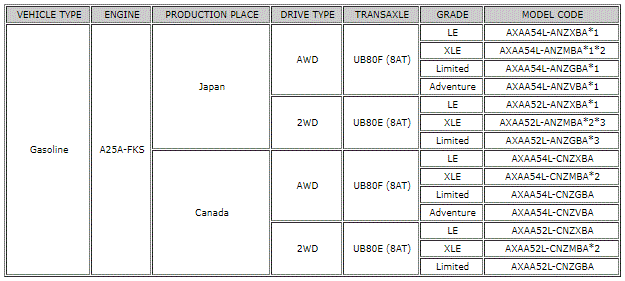

Fig 2: Model Line-Up [11/2018 - 02/2019]
G00594791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

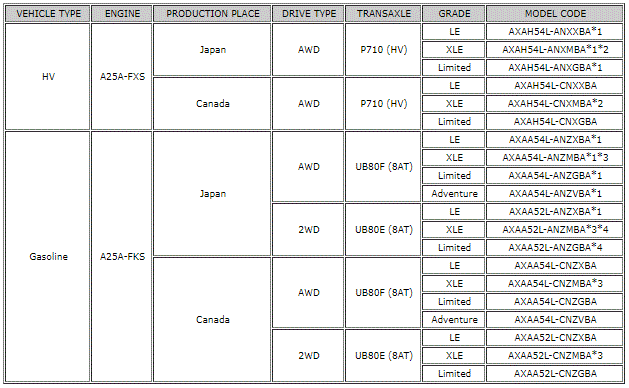

Fig 3: Model Line-Up [02/2019 - 10/2019]
G00594792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Model Line-Up [02/2019 - 10/2019]
G00594793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

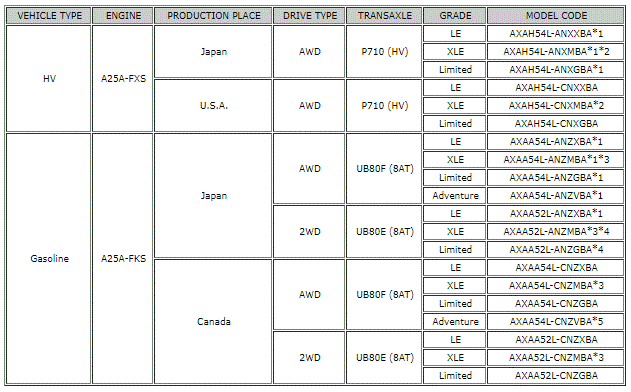

Fig 5: Model Line-Up [01/2020 - 06/2020]
G00594794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

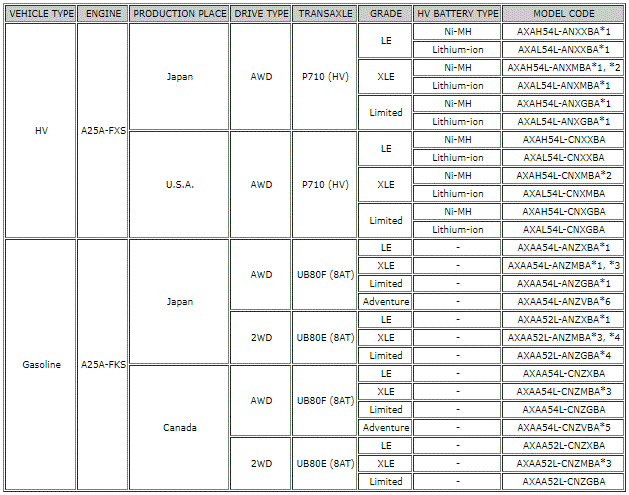

Fig 6: Model Line-Up [06/2020 - ]
G00594795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
