Front Passenger Side Door Entry Lock and Unlock Functions do not Operate [12/2012 - ]: Procedure
- CHECK POWER DOOR LOCK CONTROL SYSTEM
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.
Refer to OPERATION CHECK [12/2012 - ]
Result Proceed to Door locks operate normally Door locks do not operate
Result:
Door locks do not operate
GO TO POWER DOOR LOCK CONTROL SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2012 - ]
Result:
Door locks operate normally
See step 2
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.
- CHECK WAVE ENVIRONMENT
- Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the front door outside handle assembly (for front passenger door) and perform an entry function check.
Refer to OPERATION CHECK [12/2012 - 08/2016] or OPERATION CHECK [08/2016 - ] .

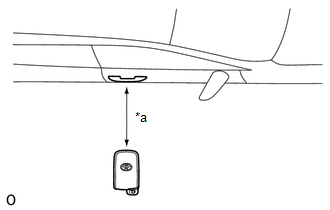

*a Approximately 0.3 m (0.984 ft.) NOTE:If the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the door handle, communication may not be possible.
HINT:
If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
Result Proceed to Entry function does not operate normally Entry function operates normally
Result:
Entry function operates normally
AFFECTED BY WAVE INTERFERENCE
Result:
Entry function does not operate normally
See step 3
- Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the front door outside handle assembly (for front passenger door) and perform an entry function check.
- CHECK HARNESS AND CONNECTOR (FRONT DOOR OUTSIDE HANDLE ASSEMBLY - CERTIFICATION ECU AND BODY GROUND)
- Disconnect the I7 front door outside handle assembly (for front passenger door) connector.
- Disconnect the G84 certification ECU (smart key ECU assembly) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I7-3 (ANT2) - G84 -10 (CG2B) Always Below 1 Ω I7-6 (ANT1) - G84-11 (CLG2) Always Below 1 Ω I7-5 (B) - G84-21 (POS2) Always Below 1 Ω I7-2 (GND) - Body ground Always Below 1 Ω I7-3 (ANT2) or G84-10 (CG2B) - Body ground Always 10 kΩ or higher I7-6 (ANT1) or G84-11 (CLG2) - Body ground Always 10 kΩ or higher I7-5 (B) or G84-21 (POS2) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- CHECK HARNESS AND CONNECTOR (SMART KEY ECU ASSEMBLY) (OUTPUT TO FRONT PASSENGER DOOR ELECTRICAL KEY ANTENNA)
- Connect the G84 certification ECU (smart key ECU assembly) connector.

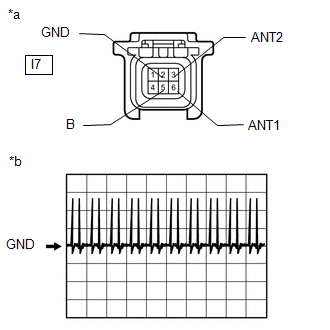

*a Front view of wire harness connector
(to Front Door Outside Handle Assembly [for Driver Door])*b Waveform - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition I7-5 (B) - I7-2 (GND) Engine switch off → on (IG) 9 to 14 V → Below 2 V - Using an oscilloscope, check the waveform.
OK
Tester Connection Switch Condition Tool Setting Specified Condition I7-3 (ANT2) - I7-6 (ANT1) Procedure: - Engine switch off
- Electrical key transmitter sub-assembly brought outside vehicle
- All doors closed
- Electrical key transmitter sub-assembly not inside vehicle
- Electrical key transmitter sub-assembly brought outside detection area*
- All doors locked through wireless operation
2 V/DIV., 500 ms/DIV. Pulse generation
(See waveform)- *: For details about the areas that are inside the entry function detection area, refer to Operation Check.
Refer to OPERATION CHECK [12/2012 - 08/2016] or OPERATION CHECK [08/2016 - ] .
Result:
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [12/2012 - 10/2015] or REMOVAL [10/2015 - ] .
Result:
OK
See step 5
- Connect the G84 certification ECU (smart key ECU assembly) connector.
- CHECK FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)
- Temporarily replace the front door outside handle assembly (for front passenger door) with a new or known good one.
Refer to DISASSEMBLY [12/2012 - ]
Result:
NEXT
See step 6
- Temporarily replace the front door outside handle assembly (for front passenger door) with a new or known good one.
- CHECK FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FRONT PASSENGER DOOR) (OPERATION)
- Check that the entry functions operate normally.
Refer to OPERATION CHECK [12/2012 - 08/2016] or OPERATION CHECK [08/2016 - ] .
OK
Entry functions operate normally.
Results Proceed to OK NG
Result:
OK
END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY [FOR FRONT PASSENGER DOOR] WAS DEFECTIVE)
Result:
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [12/2012 - 10/2015] or REMOVAL [10/2015 - ] .
- Check that the entry functions operate normally.
