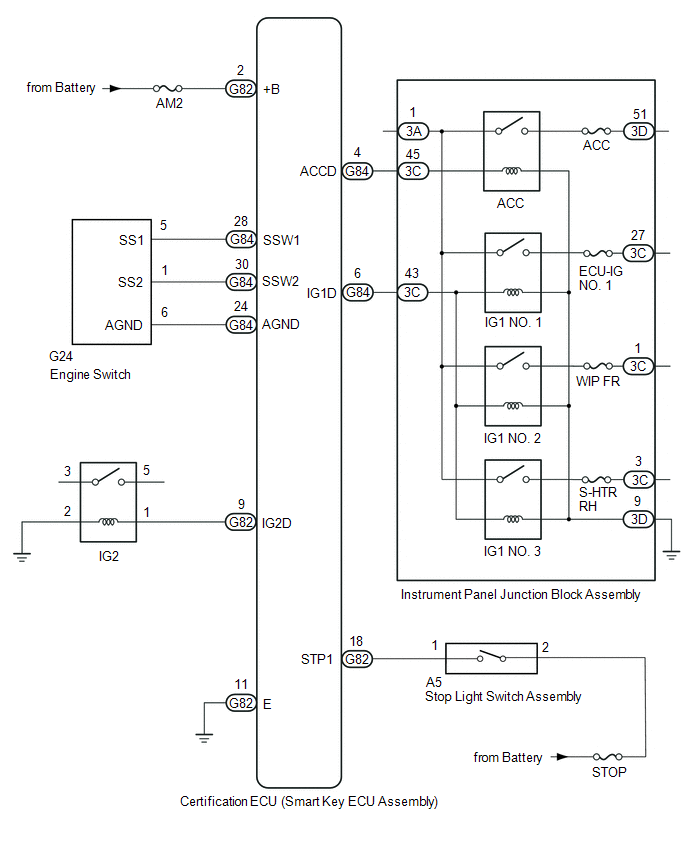

Power Source Mode does not Change to ON (IG and ACC) [12/2012 - 10/2015]: Wiring Diagram

GTY378817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
