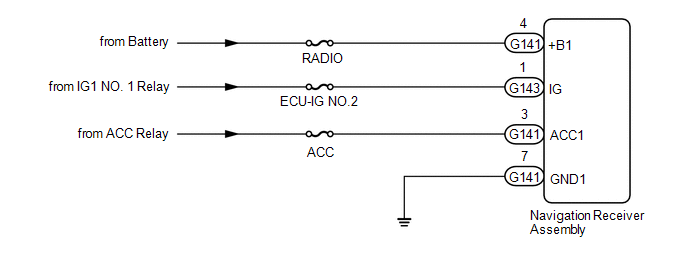

Navigation Receiver Assembly Power Source Circuit [11/2013 - 10/2015]: Wiring Diagram

GTY430035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
