Driver Side Power Window does not Operate with Power Window Master Switch [12/2012 - 10/2015]: Procedure

1. Clear the DTC.

   Refer to DTC CHECK / CLEAR [12/2012 - ] .

   Body Electrical > D-Door Motor > Clear DTCs

2. Check for the DTCs.

   Refer to DTC CHECK / CLEAR [12/2012 - ] .

   Body Electrical > D-Door Motor > Trouble Codes

   Result	Result
   	DTC is not output
   	DTC is output

Result:

DTC is output

GO TO DIAGNOSTIC TROUBLE CODE CHART.

Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2012 - ] .

Result:

DTC is not output

See step  2

1. Perform the Active Test according to the display on the Techstream.

   Refer to DATA LIST / ACTIVE TEST [12/2012 - 10/2015] .

   WARNING:

   Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.

   Body Electrical > D-Door Motor > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Power Window	Driver door power window	OFF, UP or DOWN	-

   HINT:

   Up and down movement does not occur if the arrow is not pressed and held.

   Body Electrical > D-Door Motor > Active Test

   Tester Display
   Power Window

   OK

   Driver door power window operates normally.

Result:

NG

See step  4

Result:

OK

See step  3

1. Read the Data List according to the display on the Techstream.

   Refer to DATA LIST / ACTIVE TEST [12/2012 - 10/2015] .

   Body Electrical > D-Door Motor > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   D Door P/W Up SW	Driver door power window manual up switch signal	ON or OFF	ON: Driver door power window manual up switch being operated OFF: Driver door power window manual up switch not being operated	-
   D Door P/W Down SW	Driver door power window manual down switch signal	ON or OFF	ON: Driver door power window manual down switch being operated OFF: Driver door power window manual down switch not being operated	-

   Body Electrical > D-Door Motor > Data List

   Tester Display
   D Door P/W Up SW
   D Door P/W Down SW

   OK

   On the Techstream screen, ON or OFF is displayed accordingly.

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH.

Refer to REMOVAL [12/2012 - 10/2015] .

Result:

NG

See step  5

1. Disconnect the front power window regulator motor assembly LH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

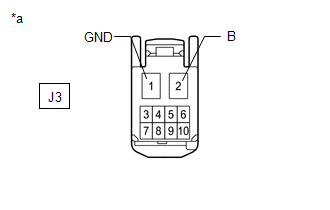

   *a	Front view of wire harness connector (to Front Power Window Regulator Motor Assembly LH)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J3-1 (GND) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J3-2 (B) - Body ground	Always	11 to 14 V

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH.

Refer to REMOVAL [12/2012 - 10/2015] .

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Remove the power window regulator master switch assembly.

   Refer to REMOVAL [12/2012 - ] .

2. Inspect the power window regulator master switch assembly.

   Refer to INSPECTION [12/2012 - ] .

Result:

NG

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY.

Refer to REMOVAL [12/2012 - ] .

Result:

OK

See step  6

1. Disconnect the power window regulator master switch assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

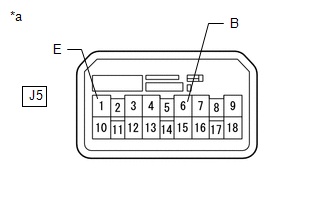

   *a	Front view of wire harness connector (to Power Window Regulator Master Switch Assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J5-1 (E) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   J5-6 (B) - Body ground	Ignition switch ON	11 to 14 V
   	Ignition switch off	Below 1 V

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

1. Disconnect the J5 power window regulator master switch assembly connector.
2. Disconnect the J3 front power window regulator motor assembly LH connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J5-8 (U) - J3-10 (UP)	Always	Below 1 Ω
   J5-5 (D) - J3-7 (DOWN)	Always	Below 1 Ω
   J5-8 (U) or J3-10 (UP) - Body ground	Always	10 kΩ or higher
   J5-5 (D) or J3-7 (DOWN) - Body ground	Always	10 kΩ or higher

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH.

Refer to REMOVAL [12/2012 - 10/2015] .

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
