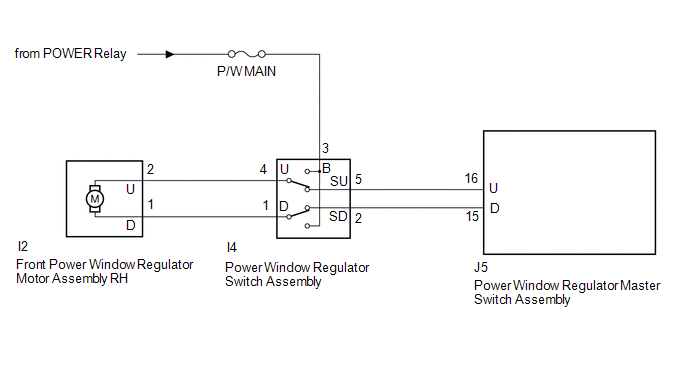

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [12/2012 - ]: Wiring Diagram

GTY383486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
