Rear Power Window RH does not Operate with Rear Power Window Switch RH [12/2012 - ]: Procedure

1. Remove the rear power window regulator switch assembly RH.

   Refer to REMOVAL [12/2012 - ]

2. Inspect the rear power window regulator switch assembly RH.

   Refer to INSPECTION [12/2012 - ]

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH. Refer to  REMOVAL [12/2012 - ]

Result:  1

OK

See step  2

1. Remove the rear power window regulator motor assembly RH.

   Refer to REMOVAL [12/2012 - ]

2. Inspect the rear power window regulator motor assembly RH.

   Refer to INSPECTION [12/2012 - ]

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [12/2012 - ]

Result:  1

OK

See step  3

1. Disconnect the rear power window regulator switch assembly RH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

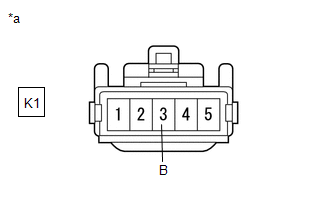

   *a	Front view of wire harness connector (to Rear Power Window Regulator Switch Assembly RH)

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   K1-3 (B) - Body ground	Ignition switch ON	11 to 14 V
   	Ignition switch off	Below 1 V

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  4

1. Disconnect K3 the rear power window regulator motor assembly RH connector.
2. Disconnect K1 the rear power window regulator switch assembly RH connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K3-1 (U) - K1-4 (U)	Always	Below 1 Ω
   K3-2 (D) - K1-1 (D)	Always	Below 1 Ω
   K3-1 (U) or K1-4 (U) - Body ground	Always	10 kΩ or higher
   K3-2 (D) or K1-1 (D) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  5

1. Disconnect the K1 rear power window regulator switch assembly RH connector.
2. Disconnect the J5 rear power window regulator master switch assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K1-5 (SU) - J5-10 (U)	Always	Below 1 Ω
   K1-2 (SD) - J5-18 (D)	Always	Below 1 Ω
   K1-5 (SU) or J5-10 (U) - Body ground	Always	10 kΩ or higher
   K1-2 (SD) or J5-18 (D) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  1

OK

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY. Refer to  REMOVAL [12/2012 - ]

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
