Installation [12/2012 - ]: Procedure

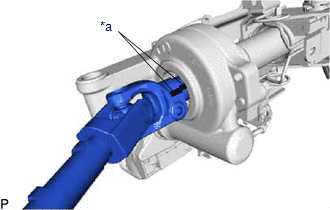

1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Install the bolt.

   Torque: 35.3 N*m (360 kgf*cm, 26 ft.*lbf)

1. Install the steering column assembly with the bolt and 2 nuts.

   for Nut

   Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

   for Bolt

   Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

   NOTE:

   • Do not damage the 2 bushings.
   • Do not line-up the bolt hole by prying on the collar or bushings. Only install the bolt straight, without applying any force to the bushings.
2. Connect the connectors and attach the wire harness clamps to the steering column assembly.
3. Connect the wire harness with the bolt.

   Torque: 8.35 N*m (85 kgf*cm, 74 in.*lbf)

1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft assembly.
2. Install the bolt.

   Torque: 35.3 N*m (360 kgf*cm, 26 ft.*lbf)

Refer to INSTALLATION [12/2012 - 10/2015] , or refer to INSTALLATION [10/2015 - ]

1. Install the column hole cover silencer sheet with the 2 clips.
2. Install the floor carpet.

Refer to INSTALLATION [12/2012 - ]

Refer to PROCEDURE - Step 11 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 11 [08/2016 - ]

1. Attach the 3 claws to install the combination switch assembly with spiral cable sub-assembly to the steering column assembly.
2. Connect the connectors to the combination switch assembly with spiral cable sub-assembly.

1. Attach the 4 clips, 3 claws and 2 pins to install the upper steering column cover.
2. Attach the 2 claws to install the lower steering column cover.
3. Attach the 3 claws.

Refer to INSTALLATION [12/2012 - 10/2015] , or refer to INSTALLATION [10/2015 - ]

Refer to CALIBRATION [12/2012 - ]

Refer to DIAGNOSIS SYSTEM [12/2012 - ]
