Reassembly [12/2012 - ]: Procedure

1. Apply grease to the spline part of the electric power steering column sub-assembly.
2. Install a new O-ring to the power steering motor assembly.

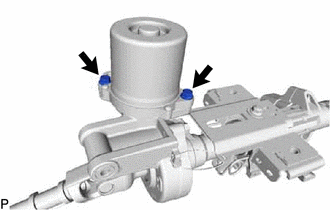

3. Install the power steering motor assembly with the new 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

4. Place new heat resistant tape.
   NOTE:

   As heat from the power steering motor assembly may generate smoke, use heat resistant tape (resistant to 100°C (212°F) or higher).

Refer to PROCEDURE - Step 5

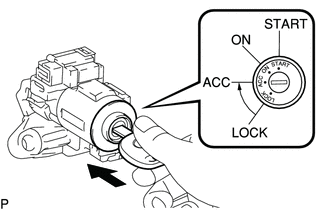

1. Turn the ignition switch to ACC.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the ignition switch lock cylinder assembly into the upper steering column bracket assembly.
3. Make sure that the ignition switch lock cylinder assembly is securely fixed onto the ignition switch lock cylinder assembly.

1. Attach the 2 claws to install the unlock warning switch assembly onto the upper steering column bracket assembly.

   HINT:

   Slide the unlock warning switch assembly in the direction shown by the arrow in the illustration to install it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

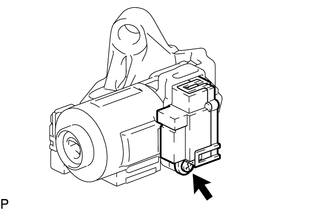

1. Install the key interlock solenoid onto the upper steering column bracket assembly with the screw.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 1

HINT:

When replacing the steering lock actuator assembly, perform the key registration (Refer to REGISTRATION [12/2012 - ] ).

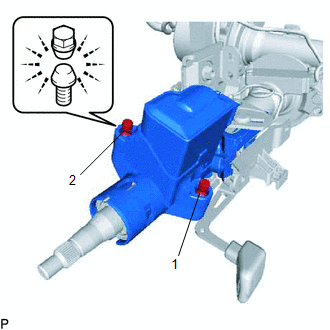

1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolt.
   NOTE:

   Be sure to use a new tapered-head bolt.

2. Tighten the 2 tapered-head bolts until the bolt head breaks off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tighten the nuts in the order shown in the illustration.

HINT:

Refer to "INSTALL STEERING LOCK ACTUATOR ASSEMBLY (w/ Entry and Start System)"
