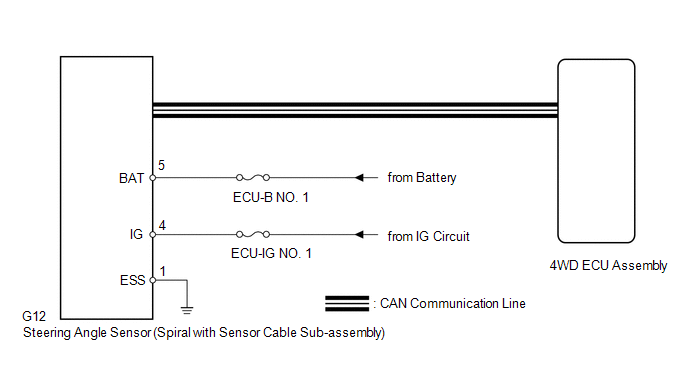

DTC C1297/97: Steering Angle Sensor [12/2012 - ]: Wiring Diagram

GTY374690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
